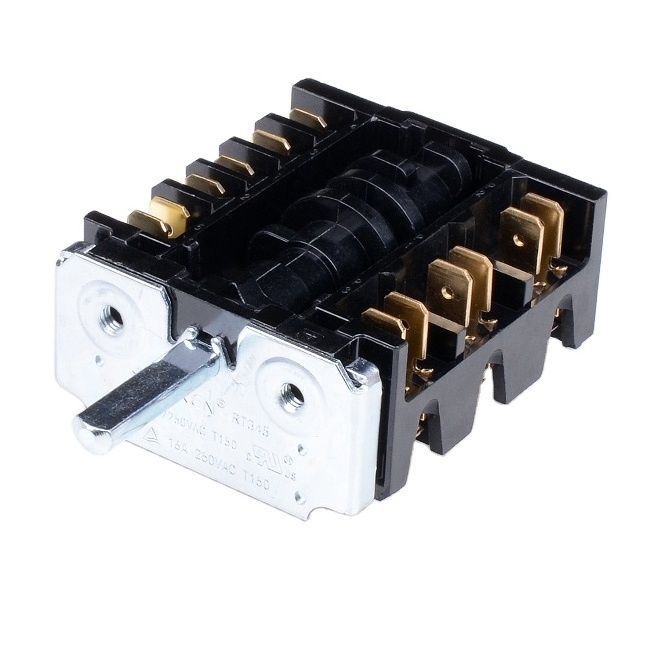

RT345-1A electric oven selector switch 16A 250VAC T150 TUV

RT345-1A electric oven selector switch 16A 250VAC T150 TUV

FOB Reference Price: Get Latest Price

≥240 Pieces

US $1.3

≥3000 Pieces

US $1.2

≥20000 Pieces

US $1.05

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: SOKEN

Model Number:: RT345-1A

Max. Current:: 16A, 16A

Mechanical Life:: 10000 Cycles

Contact resistance:: ≤100mΩ

Insulationresistance:: ≥100mΩ

Safety Certificates:: TUV

Withstand voltage1:: 1500VAC for terminal to terminal

Withstand voltage2:: 3000VAC for terminal to body

Shaft length:: 15.5/28/23mm

Body and Actuator:: Nylon6.6

Certification:: UL TUV

Quick Details

Whether the smart:: NO

Max. Voltage:: 250V, 250V

Place of Origin:: Zhejiang, China

Brand Name:: SOKEN

Model Number:: RT345-1A

Max. Current:: 16A, 16A

Mechanical Life:: 10000 Cycles

Contact resistance:: ≤100mΩ

Insulationresistance:: ≥100mΩ

Safety Certificates:: TUV

Withstand voltage1:: 1500VAC for terminal to terminal

Withstand voltage2:: 3000VAC for terminal to body

Shaft length:: 15.5/28/23mm

Body and Actuator:: Nylon6.6

Certification:: UL TUV

RT345-1A electric oven selector switch 16A 250VAC T150 TUV UL

Free charge sample: Could provide(less than 10 PCS),freight collect

Rocker Switch

---Production Description---

Item	RT345-1A
Safety Certificates	TUV UL

- --Production Specification---

Rating	250VAC 16A T150
Contact Resistance	100MΩ Max
Dielectric Strength	1500VAC/ 5S for terminal and terminal. 3000VAC 5s for terminal and ground
Operating Temperature	-25~85°C
Insulated Resistance	500VDC, 100MΩ Min
Electrical Life	≥10,000 cycles
Pins (Terminals)
Housing Material	PA66
Button Material	PC

- --Production Material---

Base plastic	Nylon 66
Button plastic	PC
Copper parts such as terminal	Copper
Terminal surface treatment	Silver plating
Contact	Ag or Composite silver
Spring	Steel Wire
Waterproof Material	PVC

- -- Advantage ---

. CQC,UL,TUV,KEMA,VDE, CE,RoHS approved

. Used for home appliance and electronic equipments

. Machining as you required

. Custom made according your samples, drawings, pictures or photos

- --Production Display---

--- Circuit Description ---

- --Company Display---

Ningbo Master Soken Electrical Co., Ltd. established in 1996, is a director member of Electrical Accessories and Appliance Controllers Branch of CEEIA. We are professional manufacturer engaged in the research, development, production, sale and service of various switches, including Rocker switches, Rotary switches, Push-button switches, Key switches, Indicator lights which are widely used in different fields such as Home Appliances industrial Facilities, Instruments and Meters, Communication Equipments, Fitness and Beauty Apparatus .
