Curtis Sepex 24V/36V Programmable 200 Amp DC Motor Controller 1243-4220

Curtis Sepex 24V/36V Programmable 200 Amp DC Motor Controller 1243-4220

• CURTIS Model: 1243-4220
• Norminal Battery Voltage (Volts): 36V (default setting) or 24V
• PWM operating frequency: 16 kHz
• Electrical isolation to heatsink (min.): 500 VAC
• KSI input voltage (minimum): 16.8 V
• KSI input current (typical):
  • 78 mA without programmer
  • 120 mA with programmer
• Logic input voltage: 7.5 V High; <1 V Low
• Logic input current 15 mA
• Overvoltage protection:
  • 24V models: cutback at approx. 30V, cutback at ≈34V
  • 36V models: cutback at approx. 45V, cutback at ≈49V
• Undervoltage protection:
  • 24V models: cutback at approx. 17V, cutback at ≈13V
  • 36V models: cutback at approx. 25V, cutback at ≈21V
• Drive Current Limit (amps): 200
  • Amature:
    • 2 Minute Current Rating (amps): 200
    • 1 Hour Current Rating (amps): 80
  • Field:
    • 2 Minute Current Rating (amps): 25/35
    • 1 Hour Current Rating (amps): 15/20
• Throttle Type: 0-5K Ω (default setting), 5K-0 Ω or 0-5V
• Ambient operating temperature range: -40°C to 50°C
• Heatsink overtemperature cutback: 85°C
• Heatsink undertemperature cutback: -25°C

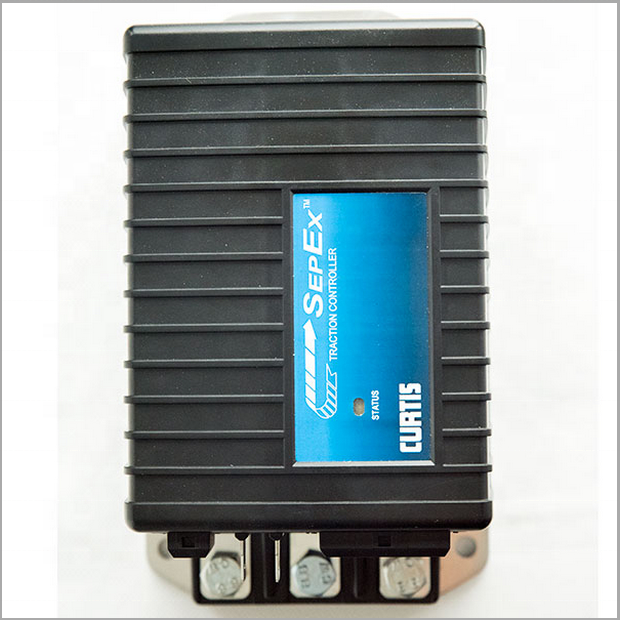

Picture:

Features Include:

• Interlock braking with load sensor to meet required braking distance without unnecessary harsh braking at light loads
• Maintenance monitor responds to preset vehicle operating hours and drive hours as programmed by the OEM
• Two hourmeters - total KSI-on hours and traction hours - and the associated maintenance timers are built into the controller
• BDI calculations performed within controller
• Estimates motor temperature based on field resistance and cuts back maximum speed if the motor is overheated
• Diagnostic checks for field open and field shorted faults
• Supports PWM electromagnetic brake with maximum continuous current of 2 amps
• Supports Type 4 throttle
• Active precharge of controller capacitor bank extends life of main contactor
• Compatibility with CURTIS 1313-4401 Handheld Programmer or 1314 PC Programming Station for quick and easy testing, diagnostics, and parameter adjustment
• MultiMode™ allows four user-selectable vehicle operating modes
• Continuous armature current control, reducing arcing and brush wear
• Complete diagnostics through the handheld programmer, the built-in Status LED, and the optional 840 Spyglass display
• Two fault outputs provide diagnostics to remotely mounted displays
• Regenerative braking allows shorter stopping distances, increases battery charge, and reduces motor heating
• Automatic braking when throttle is reduced provides a compression braking feel and enhances safety
• Brake/Drive Interlock meets ISO stopping distance requirements
• Ramp restraint feature provides automatic electronic braking that restricts vehicle movement while in neutral
• Meets EEC fault detect requirements
• Linear cutback of motor drive current during overtemperature or undervoltage
• Linear cutback of regenerative braking current during overvoltage
• High pedal disable (HPD) and static return to off (SRO) interlocks prevent vehicle runaway at startup
• Internal and external watchdog circuits ensure proper software operation
• Fully protected inputs and short-circuit protected output drivers.
