We do better on details, ON both development, production and even package.
Please feel free to tell us your application scenario, we are customize the development and production of Bluetooth modules.
- Product Details
- {{item.text}}
Quick Details
-
Country of Origin:
-
Shenzhen,China
-
Brand:
-
FEASYCOM
-
Bluetooth Version:
-
Bluetooth 5.2 BLE serial port module
-
Name:
-
FSC-BT671C
-
Dimension:
-
10mm X 11.9mm X 1.8mm
-
Transmit power:
-
10 DBm
-
Profiles Support:
-
SPP, GATT
-
Antenna Type:
-
external Antenna
-
Modulation:
-
GFSK
-
Upgrade:
-
OTA
-
Operating Temperature:
-
-40℃ to +105℃
-
Highlights:
-
Small size but big tx power
Quick Details
-
Model Number:
-
FSC-BT671C
-
Chipset:
-
SILICON LABS EFR32BG21
-
Application:
-
Mesh, Beacon, Data Transceiver
-
Country of Origin:
-
Shenzhen,China
-
Brand:
-
FEASYCOM
-
Bluetooth Version:
-
Bluetooth 5.2 BLE serial port module
-
Name:
-
FSC-BT671C
-
Dimension:
-
10mm X 11.9mm X 1.8mm
-
Transmit power:
-
10 DBm
-
Profiles Support:
-
SPP, GATT
-
Antenna Type:
-
external Antenna
-
Modulation:
-
GFSK
-
Upgrade:
-
OTA
-
Operating Temperature:
-
-40℃ to +105℃
-
Highlights:
-
Small size but big tx power
Products Description
Micro Mini Size Class 1 100 Meters Low Power Ble Bluetooth Serial Port Module For Gps Tracking Switch Bmw Volkswagen Volkswagen
|
Bluetooth module model
|
FSC-BT671C
|
|
Bluetooth version
|
Bluetooth 5.2 BLE Low Energy
|
|
Dimension
|
10mm X 11.9mm X 1.8mm
|
|
|
Pad Pitch 1.1 mm
|
|
Interfaces
|
TX, RX, CTS, RTS
|
|
|
General Purpose I/O
|
|
|
Default 115200,N,8,1
|
|
|
Baudrate support from 1200 to 230400bps
|
|
|
5, 6, 7, 8 data bit character
|
|
|
|
|
GPIO
|
15(maximum – configurable) lines
|
|
|
O/P drive strength (4 mA)
|
|
|
Pull-up resistor (40 KΩ) control
|
|
|
Read pin-level
|
|
I2C
|
1 (configurable from GPIO total). Up to 400 kbps
|
|
ADC Interface
|
Analog input voltage range: 0V ~ 3.3V
|
|
|
Supports single 12-bit 1 Msps SAR ADC conversion
|
|
|
8 channels (configured from GPIO total)
|
|
PWM
|
3 General-Purpose Timer Modules
|
|
|
Four General-Purpose Timer Modules
(Two 16-Bit or One 32-Bit Timers, PWM Each) |
|
|
|
|
Profiles
|
GATT Client & Peripheral - Any Custom Services
|
|
Transmit power
|
10 dBm (Maximum)
|
|
Power supply
|
1.71~ 3.8V
|
|
Antenna
|
supports external antenna
|
|
Power Consumption
|
33.8 mA TX current @ 10 dBm output power at 2.4 GHz;
Standby Doze (Wait event): ~5mA;
50.9 μA/MHz in Active Mode;
4.5 μA DeepSleep current （16 kB RAM retention and RTC running from LFRCO)
|

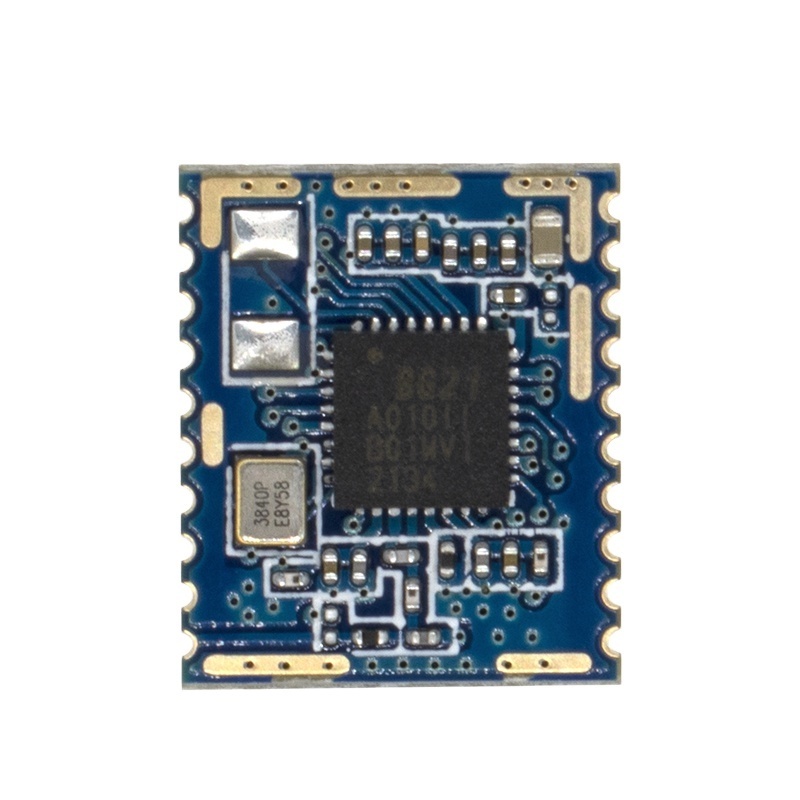

Introduction
The Bluetooth low energy chip used by FSC-BT671C includes a 32-bit 80 MHz ARM Cortex-M33 microcontroller, which can provide a maximum power output of 10 dBm.
The broadcasting of this module can get to 100 meters and it is a serial port module.
The chip's maximum receiving sensitivity is -97.5 (1 Mbit/s GFSK) dBm, and it supports a complete DSP instruction set and floating point unit, which can speed up calculations. Low-power gecko technology supports fast wake-up time and energy-saving mode. FSC-BT671C software and SDK support Bluetooth Low Energy (LE), Bluetooth 5.2 and Bluetooth mesh network. The module also supports the development of proprietary wireless protocols.
So it has a wide application: it can work with GPS module via IO port with high and low voltage
to activate and put module back to sleep mode. We have farm cow project and also
have car
gps navigation project. Please kindly contact Andy to have more details.
The GPS traking module works
together with this low
energy BLE modules to track location and movements of assets. FSC-BT671C combines an energy-friendly MCU with a highly integrated
radio transceiver. The module is suited for any battery operated application other systems requiring
high performance and low energy consumption.
Highligths
Application Scanario
Development Board
FSC-BT671X is a series that include B/C/D series. They have the same size, so the developmen board for them will also be the same one: DB006.
DB006-BT671D-USB: It contains a USB-to-UART interface connect with FSC-BT671D and convenient for customer to test. Customer can easily use it like a COM port to communicate with the computer.
DB006-BT671D-UART: It contains a 6-pin (STATUS,RXD,TXD,CND,VCC,KEY) interface connecting with FSC-BT671D which is
convenient for customer to test and configure. Customer can easily connect it to the system by Dupont wire.
DB006-BT671D-USB
It contains a USB-to-UART interface connect with FSC-BT671D and convenient for customer to test. Customer can easily use it like a COM port to communicate with the computer.
DB006-BT671D-UART
It contains a 6-pin (STATUS,RXD,TXD,CND,VCC,KEY) interface connecting with FSC-BT671D which is
convenient for customer to test and configure. Customer can easily connect it to the system by Dupont wire
.
Our company
Shenzhen Feasycom Technology Co., Ltd is a nationl high-tech enterprise focusing on Internet of Things Technology.
We have a software and hardware R&D team of more than 30 people, mainly engaged in development
and application of
wireless technology, covering Bluetooth modules, wifi modules, beacons and so on.
After years of technology accumulation and precipitation, Feasycome has our own wireless protocol
stack and software intellectual property, and we are in the leading position in the filed of short distance wireless communication and networking.
Feasycom products cover Bluetooth module, Wifi module and other IOT wireless modules. Feasycom
can make deep customized production according to customer's requirement and provide one-stop
overall solution services (including software development, hardware design, APP technical support, ect.)
At present, Feasycom products are mainly used in industrial IOT, automotive electronics, health care,
smart home, mobile internet and other markets. Our products are exported to more than 30 countries
and regions such as Europe, America, Japan, South Korea and India.
Feasycom--ISO:9001 and ISO:14001 certifications
Exhibition
Feasycom attends 2021 CES to meet
customers from the world.
Packing & Delivery
MSL-3 level package for our Bluetooth modules.
We have standard package for other customer.
