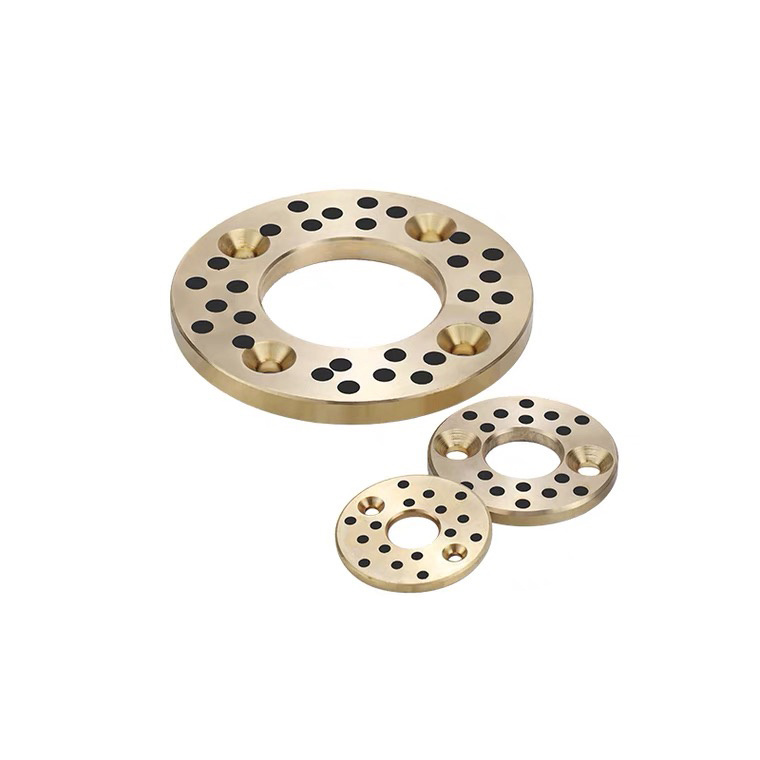

Bearing Sleeve Plugged Steel Iron Brass Cutless Bushing Carbon Bush Bronze Bushing Bearing

Product Details:

Place of Origin: China

Brand Name:    Jintai Copper alloy bush

Certification:      ISO/9001

Model Number: self-lubricating bearing

Payment & Shipping Terms:

Minimum Order Quantity:    Negotiable

Price:    Negotiable

Packaging Details:  Export Carton Wood Pallet Wooden Case

Delivery Time:  7-25 work days

Payment Terms:      MoneyGram, Western Union, T/T

Supply Ability:   1000000 Piece/Pieces One week

Coppery:     CuSn6Zn6Pb3

Feature:      Circular Oil Groove

Lubrication:Embedded Graphite

Application:Mechanical Agriculture, Industrial Energy And Other Fields

Mechanical Properties Of:High Strength High Precision Bronze Bushings

High Light:wrapped bronze bushings, oil embedded sleeve bearing

Material features:

· can be used for a long time without maintenance ;

· designed for high static load and dynamic load;

· it has a very low and stable friction coefficient and no "adhesion" phenomenon;

· dust resistance, corrosion resistance, impact resistance and edge load resistance;

· the metal substrate has good shock-absorbing capacity ;

· can be used in a wide range of temperatures;

· suitable for reciprocating, rotating and oscillating situations where startup is frequent and oil film is difficult to form;

· very low wear rate, long service life.

Copper bushing Technical Data

ZCuSn6Zn6Pb3
Sn(%)	Al(%)	Fe(%)	Pb(%)	Cu(%)
6	0.002	0.05	6	rest
(Tensile strength)σb (MPa)		≥420
(Elongation) δ5 (%)		≥10

Substrate material	CuZn25A16Fe3Mn4	Maximum operating temperature ℃ ℃		300
Ultimate dynamic load N/mm²	100
The coefficient of friction u	<0.16	Maximum sliding speed m/s	dry	0.4
Basic hardness  HB	210~270		Oil	5

Alloy material

	JDB-1	JDB-2			JDB-3	JDB-4	JDB-5
		JDB-2	JDB-22	JDB-23
GB1776-87	ZCuZn25 Al6Fe3Mn3	ZCuSn6Zn6Pb3	ZCuAl10Fe3	ZCuSu10P1	Steel+ ZCuSn6Zn6Pb3	HT250	GCr15
ISO1338	GCuZn25 Al6Fe3Mn3	GCuSn6Zn6Pb3	GCuAl10Fe3	-	Steel+ CuSn6Zn6Pb3 Fe3Ni5	-	B1
DIN	G-CuZn25 Al5	GB-CuSn5Zn5Pb5	GB-CuAl10Ni	GB-CuSn10	Steel+ CuSn6Zn6Pb3Ni	-	100Cr6
JIS	HBsC4	BC6	AIBC3	BC3	BC6	FC250	SUJ2
ASTM/UNS	C86300	C83600	C95500	C90500	C83600	Class40	52100
(BS)	HTB2	LG2	AB1	PB4	LG2	-	-

Product advantages

1. Flexible, simple, convenient design, wide range of use;

Fuel supply system in the mechanical design is a work, time-consuming device, using solid self-lubricating bearings do not need to consider when designing refueling device, save gas devices, as well as for a wide variety of special occasions, solid self-lubricating bearing design into various shapes, so as to meet the needs of a variety of special occasions, using solid self-lubricating bearings, can significantly reduce the mechanical maintenance, oil and other expenses.

2. No oil can be used;

Since solid lubricant is greater than the linear expansion coefficient of metal matrix, so when to run solid self-lubricating bearings, the oil film will be transferred to the grinding and implemented on a self-lubrication, so solid self-lubricating bearings can be used in the place where is hard to go and can't go or grease, even in the case of low speed and high load, also can have good lubrication effect.

3. Low use cost;

The traditional mechanical design, in a certain operating time, want to often come on maintenance, check the oil, the oil supply device was clear, the body itself and the surrounding environment pollution caused by regular gas, result in an increase in maintenance costs, realize self-lubrication, not only can realize the environment clean and tidy, and greatly reduce the cost of the use of lubricating oil.

4. Under the condition of high load and low speed, it can give play to superior performance;

Solid self-lubricating bearing is made of centrifugal casting high strength alloy brass substrate, have the effect of bearing load, with special formula with good self-lubricating properties of graphite lubricant, self lubricating effect, so it's a combination of their respective advantages, even in high load, low speed, can produce superior performance.

5. In places where the oil film is difficult to form, such as reciprocating movement, rocking movement and frequent starting and stopping, superior wear resistance can be brought into play;

The principle of the arrangement of solid self-lubricating bearing lubricants is to ensure that there are lubricants in all parts of the grinding parts during the running process. Therefore, the arrangement of lubricants must be determined according to the movement direction of the grinding parts.

The finished copper alloy bushing provides a simple and economical way to use the bearing. It has the characteristics of high bearing capacity, good corrosion resistance, and arbitrary size processing. At the same time, different grades of copper alloys can be provided according to different usage conditions, and different forms can be processed according to the requirements. It has higher dimensional accuracy than rolled copper bearings.

Why choose us

While JINTAI is recognized as the supplier in pipe handling self-lubricating bearing manufacturing equipment, our sliding bearing bushing product range includes equipment for a wide variety of customers.

Self-lubricating bearings for industrial applications. Your global partner for sliding bearing technology. Order Bushings Online. Range Of Products. View www.Slidebearing.com; Plain Bearing types available in standard dimensions: Cylindrical bushes, Flanged bushes, Thrust washers, Flanged washers, Sliding plates

Why You Need Our Bearings!

Because you need quality bearings at economical prices.

1).Our bearings are produced in modern facilities using state of the art manufacturing techniques. All our products meet or exceed ISO/TS16949:2009 standards and tolerances.

2).Quality emphasis in all production processes coupled with 100% inspection for critical performance characteristics ensure product consistency.

3).Our produces standard and custom Oilless bearing,Marginal lubricating bearing,Bimetal bearing,Bronze wrapped bearing,Solid lubricating bearing,Sin tered bearing and Ball retainer

We also produce custom bearings designed for your special needs.

If you have a bearing problem that others can't solve call us, the bearing supplier you need.

Mainly Products Range:

Our bearing factory technical bearing manufacture in China, professional produce:

1.All of Sliding bearing.

2.other non-standard bearings.

1.The advantage of our Product:

1).We have manufactured bearings for over 20 years.

We are the leading manufacturer of bearing in China. We have a large group of bearing material suppliers. They are stable and very cooperated due to our big factory strength.

2).The stable annual output was 30000000 sets.

The stable output was upon the stable quality. We will schedule the annual orders plan for you upon the stable annual output.

3).Our tech and service team was very powerful and professional.

We always can meet your requirements upon our tech and service. The large group of tech and service team will meet you around 24 hours. And we will develop the new products upon your potential orders.

2.Product Process:

3.Our Factory:

• Our Bearing Group is the biggest manufacturer located in Hunan Province, specialized in manufacturing All the Sliding bearings and other Non-standard bearings.

4.Quality Control:

• Our company inspecter will check the products one by one before we sent it out, and we can also follow customers' special requests to control the quality. We have got little feedback of quality issue from customers these years. So please rest assure.

5.Packaging Details:

• The packaging of Plastic flims + Anti-rust Oil + Carton+Pallet

6.Outgoing Pruduct:

With an experienced and professional team , advanced producing equipment and precision inspection equipment , assure the bearing quality as the ISO standard .

7.Feedback:

Our products earn a good reputation among our customers . We welcome customers , business associations and friends from all of the world to contact with us and seek cooperation for mutual benefits.

• Other bushings are available too:

Wrapped bronze bushing / Sintered bushing / Bimetal bushing / Solid bronze bushing

Our sliding bearings including:

SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer

NOTE: Also we can make customized bushings as per your drawings or samples.
