35KTY synchronous motor

FOB Reference Price: Get Latest Price

≥5 Pieces

US $17.93

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: PM35L-024-440

Frequency:: 50Hz

Diameter:: 42mm, 35mm, 35mm, 50mm

Frequency(Hz):: 50Hz, 60Hz

Voltage(VAC):: 24VAC

Speed:: 500RPM

Quick Details

AC Voltage:: 24 VAC

Place of Origin:: Jiangsu, China

Brand Name:: Goot

Model Number:: PM35L-024-440

Frequency:: 50Hz

Diameter:: 42mm, 35mm, 35mm, 50mm

Frequency(Hz):: 50Hz, 60Hz

Voltage(VAC):: 24VAC

Speed:: 500RPM

35KTY synchronous motor

https://goot-motor.en.alibaba.com/productgrouplist-801270118/PM_Synchronous_Motor.html

1. Motor diameter: 25mm; 35mm,42mm

2. Voltage: 24VAC, 110VAC, 220VAC;

3. Frequency: 50Hz, 60Hz;

4. Speed: 250RPM, 500RPM(Could be customized);

5. Motor also can be customized;

6. ISO9001-2015 Certified; RoHs meeted.

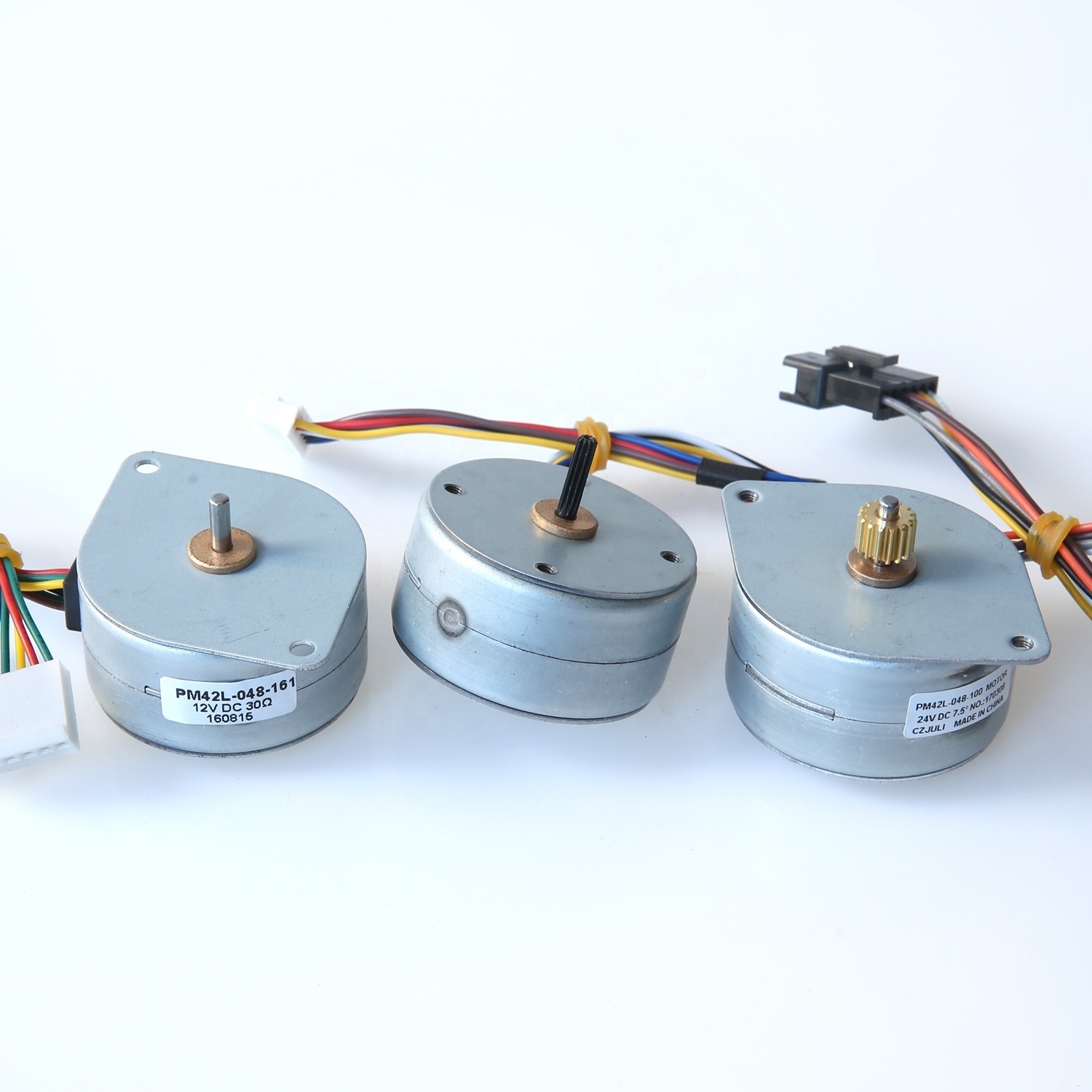

Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:

1. PM Series:

Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048

2. PG Series: PM Stepper Motor with gearbox(with different gear ratio) & BYJ Series

Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048

3. PL Series: PM Linear stepper motor(with lead screw):

Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)

Application :

HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics

Highlights :

Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushless

Winding possibilities – Bipolar

Voltage(V AC): 24 VAC, 110 VAC, 220 VAC

Specification:

Model	Voltage (VAC)	Rated frequency (Hz)	Speed (RPM)	Operation capacitor (μF )	Working current (mA)	Start Voltage (VAC)	Detent Torque (g.cm)	Running Torque (g.cm)	Fig
PM25S-048-81	24	50	250	3.3	96 Max	20	≤30	40 Min	1
PM35L-048-311	24	50	250	4.7	80 Max	19	≤80	160	2
PM42L-024-05	110	50	500	0.47		90	≤80	130	3
