Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Novery
-
Model Number:
-
MJNBH-700
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
10m*1.85m*1.85m
-
Weight:
-
3100kg
-
Product name:
-
Flexo printing machine
-
Inverter:
-
Delta
-
Usage:
-
printing
-
Raw material:
-
non woven fabric, paper,plastic
-
Touch screen:
-
Taiwan
-
PLC:
-
China
-
Maximum speed of machine:
-
70meter/min
-
Feeding width:
-
1200mm
-
Material thickness:
-
30-120g
-
Certification:
-
CE/ISO9001
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Novery
-
Model Number:
-
MJNBH-700
-
Voltage:
-
220V
-
Dimension(L*W*H):
-
10m*1.85m*1.85m
-
Weight:
-
3100kg
-
Product name:
-
Flexo printing machine
-
Inverter:
-
Delta
-
Usage:
-
printing
-
Raw material:
-
non woven fabric, paper,plastic
-
Touch screen:
-
Taiwan
-
PLC:
-
China
-
Maximum speed of machine:
-
70meter/min
-
Feeding width:
-
1200mm
-
Material thickness:
-
30-120g
-
Certification:
-
CE/ISO9001

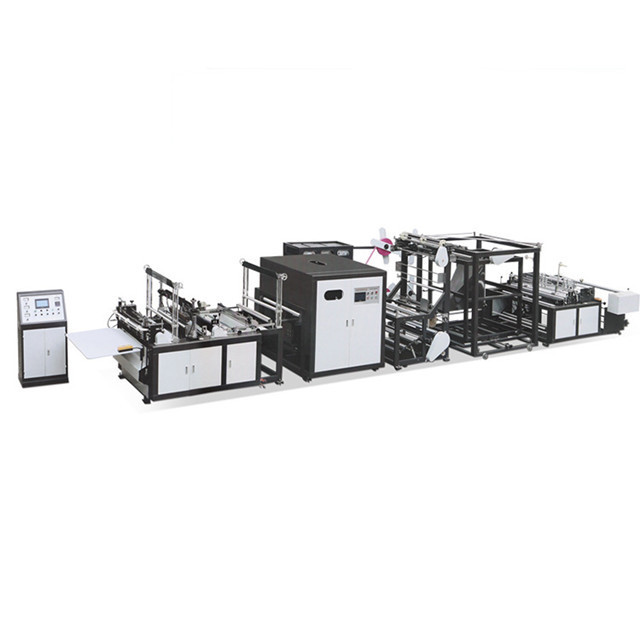

New Automatic nonwoven bag making machine in pakistan
This is four color bag to bag printing machine, which can print non woven bag and pp woven bag.
By changing the resin plate, it can make good image of printing. Just call me 0086-13958800054 if you
like this machine.
This is automatic non woven handle loop welding machine for welding the handle of non woven bags.
Just call me 0086-13958800054 if you like this machine.
Description:
1. It has f ull - automatic computer c ontrol .
2. The stable photo electric tracking can fix position and stop automatically .
3. The max width of the bag can be 600 mm, the length is adjustable .
4. It has a utomatic accounting and automatic alarm .
5. It can seal handle automatically while making bag.
Feature :
1. The machine which is used for the raw materials of non-woven fabrics.
2. It can be operated with different specifications and can make different shape of three-dimensional bag ,non-woven bag, flat bag, hand bag, vest bag, and the rope bag according to your selection.
3. It collects photo and electricity and use LCD touch screen operation with steps of progress length setting. It has photoelectric tracking, computer automatic positioning and computer automatic recticifing system.
4. It can use such industail control device as automatic punching to make its products steadily and beautifully.
5. Using this machine you can rest assure of environmental protection for high quality bag making equipment .
Main Parameter
|
Width of bag |
NW-700 |
|
Width of D cut bag |
100-800mm |
|
Height of D cut bag |
10-600mm |
|
Dye of ultrasonic |
600mm length |
|
Blade of cutting |
700mm |
|
Height of Vest bag |
100-800mm |
|
Width of Vest bag |
100-550mm |
|
Folding of vest bag |
50-80mm |
|
Precision of bag |
+ 0.2 |
|
Speed of bag making |
20-110p cs /min (normal bag) 50- 75 pcs/min(handle bag ) |
|
Maximum speed of machine |
120p cs /min |
|
Feeding width |
1300mm |
|
Material thickness |
30-1 2 0g |
|
Volume diameter |
Φ1000mm |
|
Tension scope |
0.2-1.5kg |
|
Tension style |
automatic tension(press roller sensor) |
|
Air source |
0.6-0.9Mpa |
|
Volume deviation |
synchronous motor drive infrared photo - electronic |
|
Opening ruffled |
R&L independence(hand adjustment) |
|
Embossing style |
ultrasonic & adjusted pressure |
|
Folded deviation |
reflected two-tone photo - electronic |
|
Stereo triangle welding |
independent welding with upper-lower layer |
|
Embossing style |
automatic rolling at one time |
|
Punching style |
air operated |
|
Step length setting |
O ne horizontal and two vertical(three stepping system) |
|
Manipulating interface |
T ouch screen(brand :Taiwan Wei nview ) |
|
C olor code tracking |
T hree-colors intelligent color-code photo - electronic |
|
Main motor power |
1.5kw |
|
Pressure |
single stage 220V |
|
Main power |
6kw |
|
Overall dimension of machine |
1 0 m*1.85m*1.85m(L*W*H) |
|
Net weight |
3100kg |
