3H Battery Backup Led Down Lighting Driver Kit Driver Power

3H Battery Backup Led Down Lighting Driver Kit Driver Power

FOB Reference Price: Get Latest Price

≥300 Pieces

US $15

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Zhuiming

Model Number:: F355AM(1-10W)

Output Frequency:: 50/60HZ

Output Current:: 120mA

Input Voltage:: 220V

Description:: 3H blackout buddy emergency light

Model:: F355AM(1-10W)

Indicator:: tri-color LED indicatior

Applied Lamp:: 1-10W LED lamps

Indication:: Red Led Indicates Charging

Duration time:: more than 3 hours

Warranty:: 3 years

Certification:: CE ROHS

Power:: 1-45W

Quick Details

Output Power:: 1 - 50W

Output Voltage:: 14.8V

Place of Origin:: Zhejiang, China

Brand Name:: Zhuiming

Model Number:: F355AM(1-10W)

Output Frequency:: 50/60HZ

Output Current:: 120mA

Input Voltage:: 220V

Description:: 3H blackout buddy emergency light

Model:: F355AM(1-10W)

Indicator:: tri-color LED indicatior

Applied Lamp:: 1-10W LED lamps

Indication:: Red Led Indicates Charging

Duration time:: more than 3 hours

Warranty:: 3 years

Certification:: CE ROHS

Power:: 1-45W

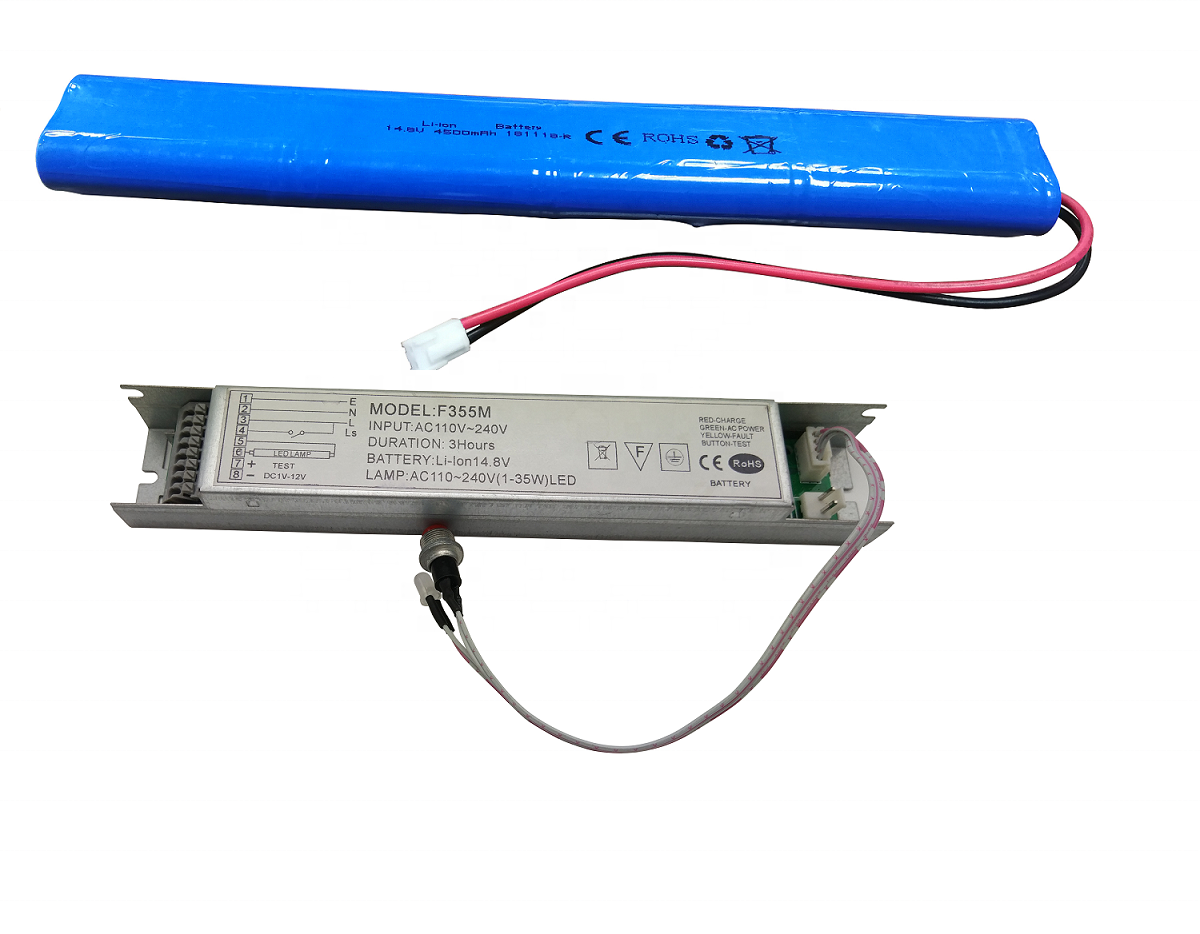

3H Battery Backup Led Down Lighting Driver Kit Driver Power

F355AM

Overview

F355AM is our own design.

The main advantage for F355AM is widely used for all kinds of led tube, led panel, and led downlight ...etc.

F355AM is 100% out put , when your lamp is 36W. after using our emergency conversion kit, the out put is 36W in emergency condition . When your lamp 10W, after using our kit, the out put is also 10W.

F355AM keep the lamp to be Permanent , it is bright all time . When power off, the battery can work for 3 hours.

We always recommend our battery to support F355AM: Li-ion battery 14.8V2.25AH, Li-ion battery 14.8V4.5AH or Li-ion battery 14.8V6.75AH. We can use different battery to match your lamp.

When we deal with the conversion kit order, the first thing is show customer how to connect the wire, So customer's lamp to factory will be great testing !

In our factory , we have R&D department , so all function can be adjust by our technical colleague!

Different country has different inquiry , what you want , what we after !

Technical Data

Operation	Completely Self-contained
Input Voltage	110V-127V 50/60Hz;220V-240V 50/60Hz
Charging Current	120mA(Nominal)
Lamp type	10w Led Tube
Battery	Li-ion Battery 14.8V 2.25Ah for 10w Led Tube
Indicator	Three Colors In 1 LED Indicator, Red Indicates charging, Green Indicates Emergency Mode, Yellow Indicates battery failure;
Duration Time	More than 3 hours
Construction	Electro-Galvanized Steel Casing of High Reflectance Finished with Corrosion Resistant Epoxy Spray Coating;
Working Temperature	-10ºC to 55ºC
Size	Battery:26518 15.6mm/ 0.24kg Casing: 22131.231.2mm/0.16kg
Customization	Battery, Duration Time, Package
