Standard wooden boxes are used as outer packaging to reduce bumps in international transportation.
- Product Details
- {{item.text}}
Quick Details
-
Production Capacity:
-
3200-6000kg
-
Voltage:
-
380V Customized
-
Power:
-
5.5KW
-
Weight:
-
1100 KG
-
Dimension(L*W*H):
-
1950*1300*1900MM
-
Name:
-
Vacuum Sausage Filler
-
Function:
-
Sausage Filling Stuffing Machine
-
Type:
-
Vacuum Sausage Stuffer System
-
Application:
-
Sausage Processing Industrial
-
Material:
-
304 Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
Feature:
-
Low Energy High Speed
-
Related Products:
-
Auto Clipping Machine
-
MOQ:
-
1 Set
-
Capacity:
-
3200-6000kg/h
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
OrangeMech
-
Production Capacity:
-
3200-6000kg
-
Voltage:
-
380V Customized
-
Power:
-
5.5KW
-
Weight:
-
1100 KG
-
Dimension(L*W*H):
-
1950*1300*1900MM
-
Name:
-
Vacuum Sausage Filler
-
Function:
-
Sausage Filling Stuffing Machine
-
Type:
-
Vacuum Sausage Stuffer System
-
Application:
-
Sausage Processing Industrial
-
Material:
-
304 Stainless Steel
-
Advantage:
-
Easy Operation High Efficiency
-
Feature:
-
Low Energy High Speed
-
Related Products:
-
Auto Clipping Machine
-
MOQ:
-
1 Set
-
Capacity:
-
3200-6000kg/h
◆ Product Description
Introduction

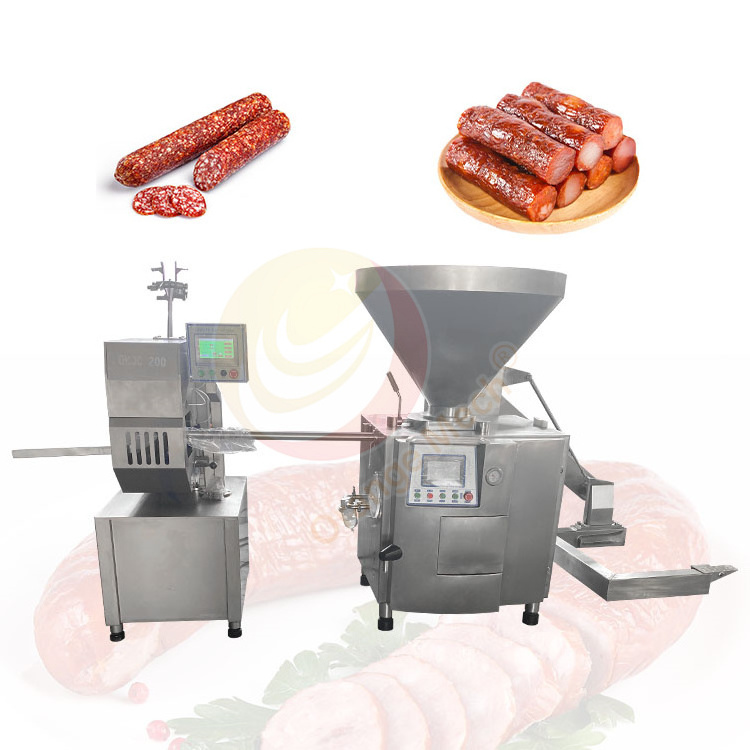

The servo motor drives the reducer to drive the blade pump to rotate, and the material in the hopper is discharged through the discharge port to complete filling. The blade rotation angle is controlled by the control system to achieve quantitative output of material volume. Then use a double card punch machine to seal the aluminum buckle.
Technological Process
Hopper - Automatic feeding - Blade type vacuum enema machine - Double card punch machine
Technical Parameter
|
Vacuum sausage filler
|
|
|
|
|
|
|
||||||
|
Model
|
Size（mm）
|
Power（kw）
|
Hopper（L）
|
Press（mpa）
|
Capacity（kg/h）
|
Weigh（kg）
|
||||||
|
3200
|
800"800*1500
|
5.5
|
150
|
0.1
|
3200
|
500
|
||||||
|
3500
|
1950*1300*1900
|
8.5
|
260
|
0.1
|
3500
|
1080
|
||||||
|
6500
|
1950*1300"1900
|
9.5
|
260
|
0.1
|
6000
|
1260
|
||||||
|
Sausage linking machine
|
|
|
||
|
Model
|
120
|
160
|
||
|
Speed
|
120
|
100
|
||
|
Pressure
|
0.5-0.8
|
0.5-0.8
|
||
|
Voltage
|
220V 50HZ
|
220V 50HZ
|
||
|
Casing diameter（mm）
|
35-120
|
40-160
|
||
|
High（mm）
|
1000
|
1000
|
||
|
Power（kw）
|
2.7
|
4
|
||
|
Size（mm）
|
950X830X1800
|
980X1020X1800
|
||
|
Weigh（kg）
|
450
|
550
|
||
◆ Product Details
◆ Product Photograph
◆ Packaging & Shipping
▶
Install waterproof membrane to reduce dust and water pollution.
◆ Related Machines
◆ F A Q
Q1：What's your company after-sales service?
A1:
Our machine
will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation:
1.
improper operation problem, we will solve all the usage problems by video call.
2.
machine parts problem, we will send you accessories to ensure the normal use of the machine.
3.
In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .
Q2：
Do you provide any warranty about your equipment?
A2：
One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？
A3：
We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4：Does your company provide training？
A4 :
Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q5：
Differences from other brands in China ？
A5 :
We
are
not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
