Quick Details
-
Standard:
-
ISO, ASTM, TAPPI, JIS, BS, GB, GB/T
-
Test materials:
-
plastic, metal, textile, foil, film, sheet,
-
Test Range:
-
0~12 mm
-
Resolution:
-
0.1 μm
-
Guranteed period:
-
12 month
-
Power supply:
-
AC 220 V 50 Hz
-
Dimension:
-
461 mm (L) x 334 mm (W) x 357 mm (H)
-
Net weight:
-
32 kg
-
Certificate:
-
ISO 9001, CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Labthink
-
Model Number:
-
CHY-CA Digital Thickness Gauge
-
Standard:
-
ISO, ASTM, TAPPI, JIS, BS, GB, GB/T
-
Test materials:
-
plastic, metal, textile, foil, film, sheet,
-
Test Range:
-
0~12 mm
-
Resolution:
-
0.1 μm
-
Guranteed period:
-
12 month
-
Power supply:
-
AC 220 V 50 Hz
-
Dimension:
-
461 mm (L) x 334 mm (W) x 357 mm (H)
-
Net weight:
-
32 kg
-
Certificate:
-
ISO 9001, CE

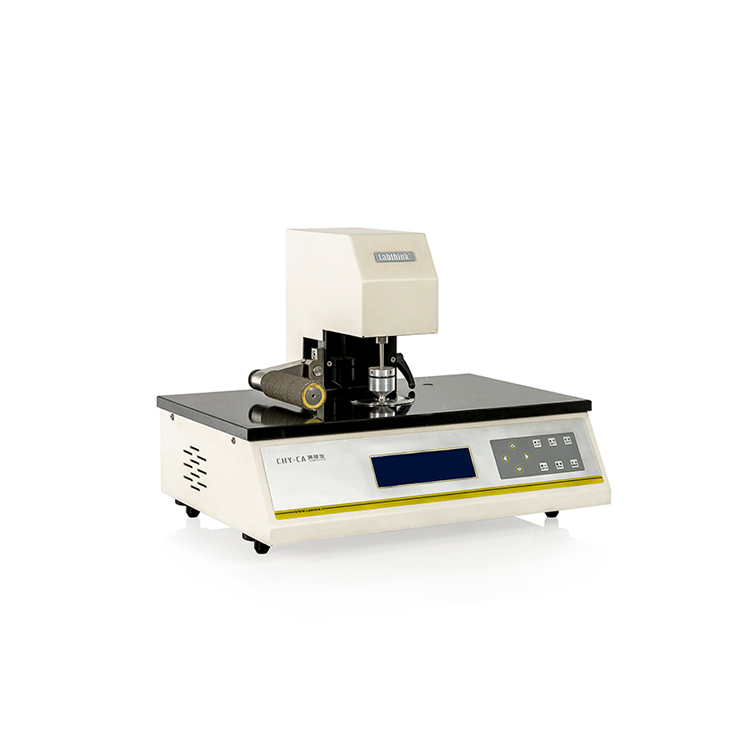

Micron Thickness Gauge
Standards:
ISO 4593, ISO 534, ISO 3034, ASTM D374,ASTM D1777, TAPPI T411, JIS K6250, JIS K6783, JIS Z1702
Features:
- Automatic specimen feeding, specimen feeding interval, number of testing points and specimen feeding speed could be preset by the user.
- Automatic lifting presser foot facilitates to minimize system errors that caused by human factors during the test.
- Manual or automatic operating mode for convenient test.
- Contact area and pressure are strictly designed according to standard requirements, while customization is also available.
- Displays the real-time data of maximum, minimum, average and standard deviation value for data analysis.
- Automatic statistics and printing functions are available which is convenient for the user to obtain the test results.
Specifications:
| Specifications | CHY-CA |
| Test Range | 0~2 mm (standard) |
| 0~6 mm, 12 mm (optional) | |
| Resolution | 0.1 μm |
| Test Speed | 10 times/min (adjustable) |
| Test Pressure | 17.5±1 KPa (film) |
| 50±1 KPa (paper) | |
| Contact Area | 50 mm 2 (film) |
| 200 m 2 (paper) | |
| Note: Select one presser foot for film or paper; Customization is available | |
| Specimen Feeding Interval | 0 ~ 1000 mm |
| Specimen Feeding Speed | 0.1 ~ 99.9 mm/s |
| Instrument Dimension | 461 mm (L) x 334 mm (W) x 357 mm (H) |
| Power Supply | AC 220V 50Hz |
| Net Weight | 32 kg |
Applications:
Basic Applications:
1. Plastic Films, Sheets and Diaphragms
2. Paper and Paper Board
3. Foils and Silicon Wafers
4. Metal Sheets
5. Textiles and Non-woven Fabrics, e.g. baby diapers, sanitary towel and other sheeting
6. Solid Electrical Insulating Materials
Extended Applications:
1. Extended Test Range of 5mm and 10mm
2. Curved Presser Foot
