Quick Details
-
Weight:
-
1500 KG
-
Marketing Type:
-
Other
-
Application:
-
material crushing
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Forui
-
Dimension(L*W*H):
-
888*942*878
-
Weight:
-
1500 KG
-
Marketing Type:
-
Other
-
Application:
-
material crushing
small scale hammer crusher
A small scale gold hammer mill crusher is typically designed for low to medium capacity operations and is suitable for small scale miners, laborers, or anyone who requires a mobile and cost-effective crushing solution.
One of the main advantages of a small scale gold hammer mill crusher is its low operational cost, which makes it an ideal choice for small scale operations. It is also easy to maintain and has a long service life.
One of the main advantages of a small scale gold hammer mill crusher is its low operational cost, which makes it an ideal choice for small scale operations. It is also easy to maintain and has a long service life.
|
Model
|
Feed Size (mm)
|
output size (mm)
|
Capacity(t/h)
|
Power (kw)
|
Diesel(HP)
|
|
PC400×300
|
<50
|
<2
|
1-2
|
11
|
24
|
|
PC600*400
|
<50
|
<2
|
5-10
|
22
|
30
|
|
PC800*600
|
<50
|
<2
|
10-15
|
45
|
65
|
We can customize different configurations based on customer requirements.
How to adjust output size
The material passes through the feed opening into the striking arc of the rotating hammers. The hammers fling the material against the grinding ledges of the grinding wall, from where it rebounds back against the hammers.The material flow is spread over the following discharge grates, where the product granulometry is separated and discharged through the grates. Any remaining material continues to be processed until it can pass through the grate gap. The grate bar gap spacing determines the final product size.To infl uence the product size, the circumferential speed of the rotor can be varied.
Details Images

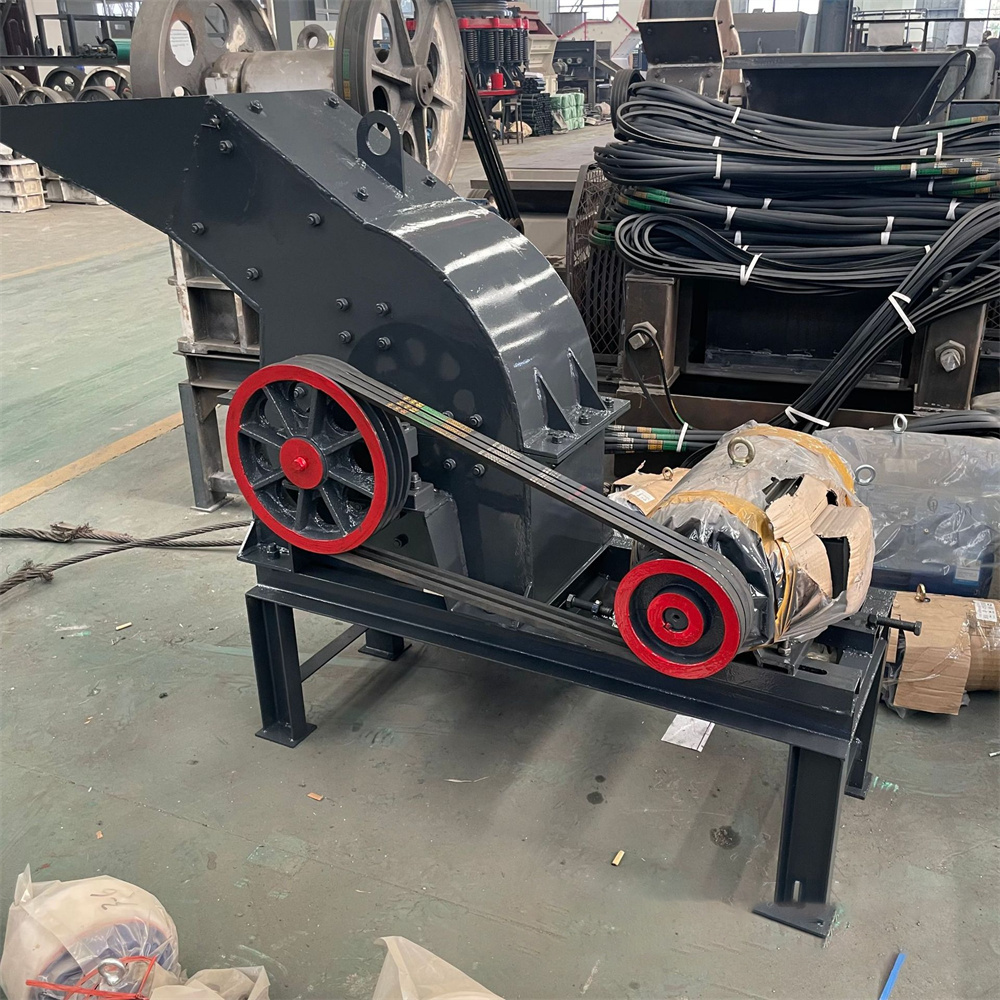

Product Display
Hammer Replacement
The replacement frequency of hammer for a hammer crusher depends on several factors, including the model of the crusher,operating conditions, the hardness and moisture content of the material being crushed, and the condition of maintenance.
Typically, if the crusher is running continuously, it may require a new set of hammer every 48 hours, but this is just a general guideline for the replacement cycle. In actual operation, it may require more frequent or less frequent replacements.
Application
Hammer crusher/mills are employed for the fine crushing of medium-hard to soft materials.
Examples: anhydrite, quicklime, lignite, dolomite, gypsum,glass, potash, limestone, china-clay, diatomite, chalk.
Examples: anhydrite, quicklime, lignite, dolomite, gypsum,glass, potash, limestone, china-clay, diatomite, chalk.
