Quick Details
-
Weight:
-
single 48KG
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Voltage:
-
48V 51.2V
-
capacity:
-
100Ah 200Ah
-
Cycle life:
-
6500+ Times
-
Size:
-
442*410*221mm
-
Communication:
-
CAN,RS485/232
-
Application:
-
Solar, Wind, UPS Solar Power System Home
-
Compatible inverter:
-
Victron,Goodwe,Sofar,Growatt
-
Warranty:
-
10 YEARS
-
Product name:
-

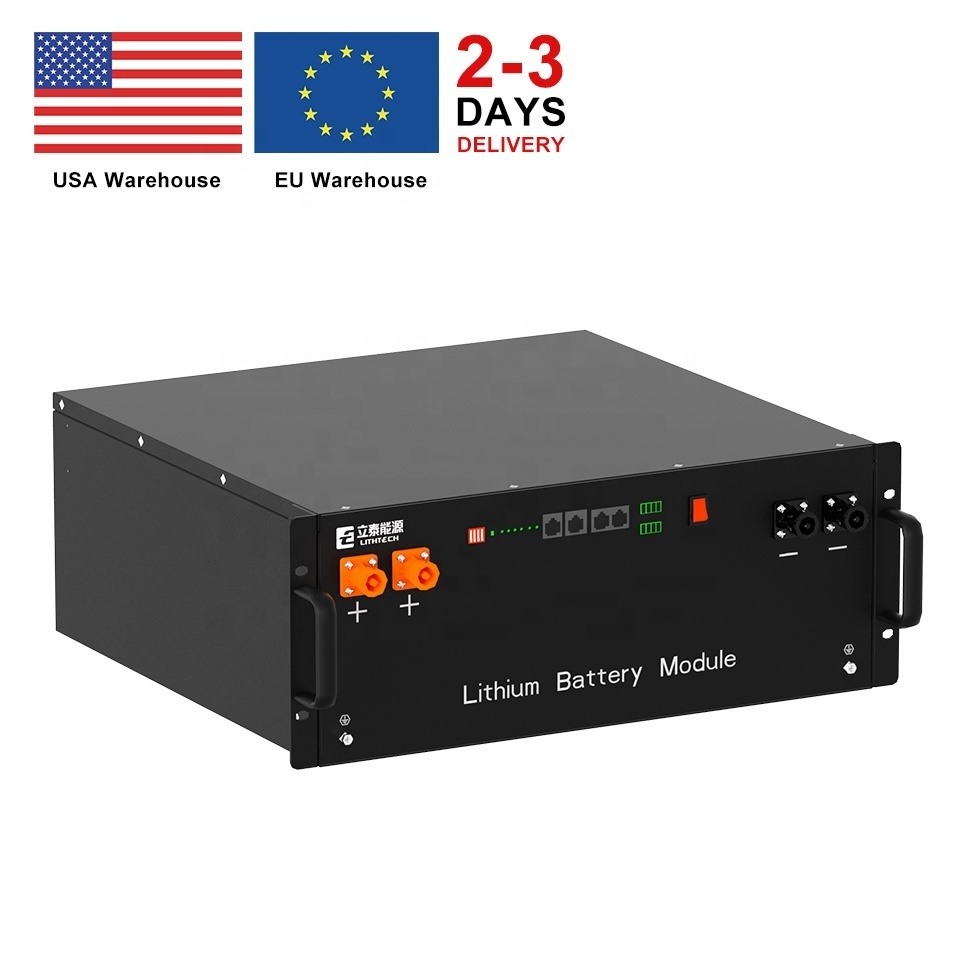

Lithium Iron Phosphate Lifepo4 Battery
Quick Details
-
Model Number:
-
TE4000
-
Brand Name:
-
Lithtech
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
single 48KG
-
Certificate:
-
CE/RoHS/UN38.3/MSDS
-
Voltage:
-
48V 51.2V
-
capacity:
-
100Ah 200Ah
-
Cycle life:
-
6500+ Times
-
Size:
-
442*410*221mm
-
Communication:
-
CAN,RS485/232
-
Application:
-
Solar, Wind, UPS Solar Power System Home
-
Compatible inverter:
-
Victron,Goodwe,Sofar,Growatt
-
Warranty:
-
10 YEARS
-
Product name:
-
Lithium Iron Phosphate Lifepo4 Battery
Battery Features
Choice LCD Monitor Digital Display
Battery is with digital display which allow users to monitor voltage of each serial of cells, battery’s rated voltage and capacity, temperatures and BMS parameters etc.
Support max. 32 parallels
If without master control, it support max. 32 parallels for highest 160Kwh battery system; If with standard master controls, it can be paralleled and serialed with more batteries.
Battery Functions
|
Model No
|
TE2000
|
TE4000
|
customization
|
customization
|
customization
|
||||
|
Voltage
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
48 V/51.2V
|
||||
|
Capacity
|
50Ah
|
100Ah
|
150Ah
|
200Ah
|
300Ah
|
||||
|
Energy
|
2.4KWH
|
5.12KWH
|
7.68KWH
|
10.24KWH
|
15.36KWH
|
||||
|
Operation voltage
|
35.25-54.75 Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
37.6-58.4Vdc
|
||||
|
Max.charging voltage
|
54.75Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
58.4 Vdc
|
||||
|
Max.charging and discharging current
|
50A
|
100A
|
100A
|
100A
|
100A
|
||||
|
Max Power
|
2400W
|
5120W
|
7680W
|
10240W
|
15360W
|
||||
|
Life time(25°C)
|
10 years
|
|
|
|
|
||||
|
Life cycles(80% DOD, 25°C)
|
6500+ Cycles
|
|
|
|
|
||||
|
Storage time / temperature
|
5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
|
|
|
|
|
||||
|
Operation temperature
|
-20°C to 60°C @60+/-25% Relative Humidity
|
|
|
|
|
||||
|
Storage temperature
|
0°C to 45°C @60+/-25% Relative Humidity
|
|
|
|
|
||||
|
Lithium Battery Standard
|
U.L1642, IEC62619, UN38.3, ROHS,CE-EMC
|
|
|
|
|
||||
|
Enclosure protection rating
|
IP65
|
|
|
|
|
||||
|
Dimensions(L×W×H)mm
|
482*410*89
|
482*410*89
|
482*430*222
|
482*500*280
|
482*500*280
|
||||
|
Weight
|
25KG
|
43KG
|
65KG
|
82KG
|
112KG
|
||||
