Quick Details
-
Type:
-
limit switch
-
Quality:
-
High Guarantee
-
Delivery:
-
Express
-
Packing:
-
Standard Packing
-
Model:
-
XCKJ
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
China
-
Material:
-
Standard
-
Application:
-
Construction Hoist
-
Type:
-
limit switch
-
Quality:
-
High Guarantee
-
Delivery:
-
Express
-
Packing:
-
Standard Packing
-
Model:
-
XCKJ
-
Certification:
-
ce

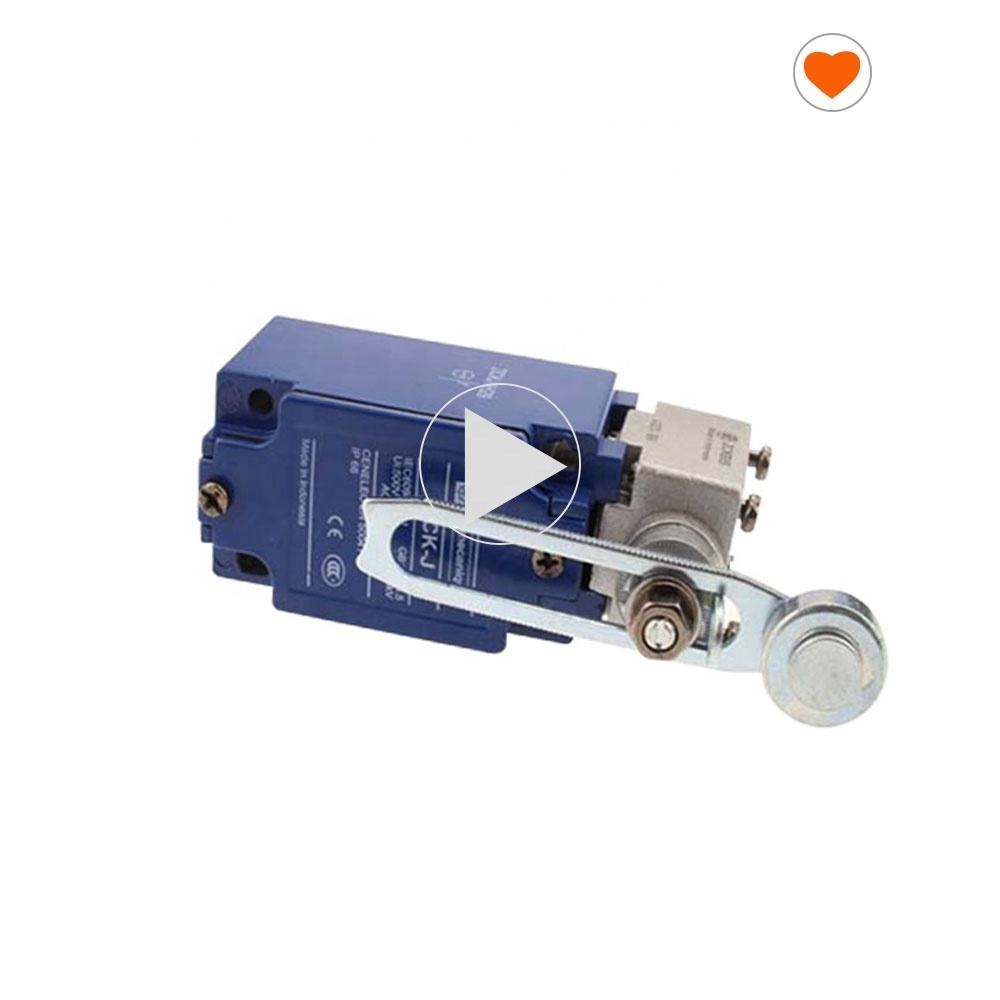

Construction Passenger Hoist Safety Door Limit Switch
- Preventing oil,water and pressure;
- Double-circuit form,quick action slow motion optional,line with direct opening action operation structure;
- Variety of levers;
-
Widely used in Mechanical equipment,automatic machine,and instrument,electro motion tool etc.
-
Item
Data
Rating load
AC-15 3A/240VAC 0.27A/250VDC
Operation speed
1mm-1m/s
Operation frequency
Mechanical 120times/min
Electrical 30 times/min
Contact resistance
≤25mΩ
Insulation resistance
≥100mΩ DC500V
Withstand voltage
Non-connection wire 1000VAC
Every terminal 1500VAC
Vibration Misoperation 10-55Hz Amplitude 1.5mm
Impact Durable 1000m/s²
Misoperation 300m/s²
Operating life
Electrical 100,000 above
Mechanical 1000,000 above
Protection degree
IP65
Operating temperature
-10°C ∼ +70°C
Operating humidity
<85%
