Quick Details
-
Brand Name:
-
NANIWA IRON WORKS
-
Model Number:
-
P7-07
-
Bolts length:
-
Please refer to the table in the description for detail.
Quick Details
-
Finish:
-
Please contact us
-
Material:
-
SCM435
-
Place of Origin:
-
Japan
-
Brand Name:
-
NANIWA IRON WORKS
-
Model Number:
-
P7-07
-
Bolts length:
-
Please refer to the table in the description for detail.
Products Description

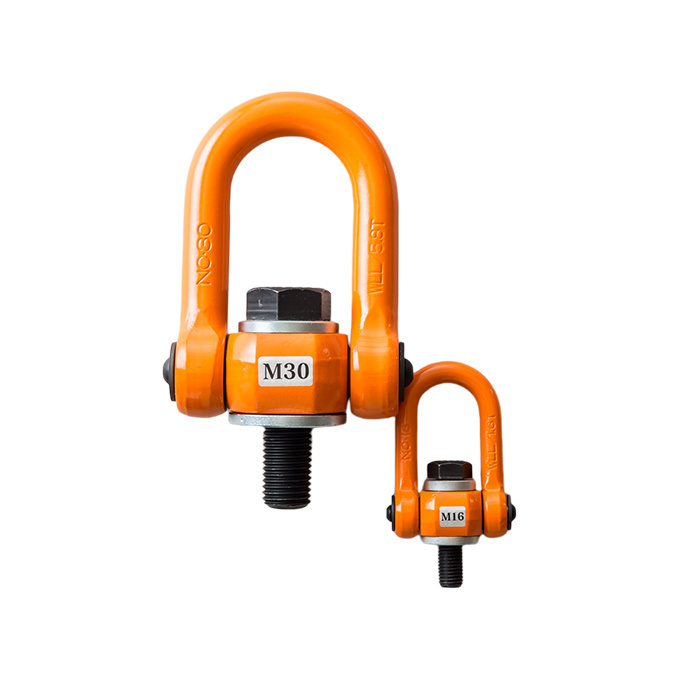

MULTI EYE BOLT
This product can be used to
safely perform lifting operations
from horizontally mounted bolts and tipping operations, which are normally dangerous with normal eye bolts.
It can rotate
360 degrees around the axis
when lifting a heavy load or object and
180 degrees in the vertical direction
.
Its working load limit is approximately 3 times that of JIS eye bolts.
Longer bolt lengths are also available (on a made-to-order basis).
Everything from the procurement of raw materials to product assembly is carried out in Japan.
Specifications
Image of product in use
|
Product Name
|
MULTI EYE BOLT
|
|
Brand Name
|
NANIWA IRON WORKS
|
|
Place of Origin
|
Japan
|
Multi Eyebolt Q&A
Ｑ. I'm looking for something convenient that I can use to carry heavy things safely.
A. I recommend Multi Eyebolt･Multi Eyebolt Hybrid which has a larger working load than the JIS eyebolt.
Q. Is it hard to break?
A. As it is made of steel, it causes metal fatigue, but it is hard to break because it is manufactured by forging.
Q. Is it rust-resistant?
A. Steel products are painted and plated, but they may rust in use and storage environments.
Q. Can I use it repeatedly?
A. Eyebolt is not recommended to repeat, but Multi Eyebolt･Multi Eyebolt Hybrid can do it. You can use it for a long time if you check it regularly.
Q. Where is it used?
A. It is used for transportation, such as companies that handle molds, large heavy goods, machine tool manufacturers, concrete secondary product manufacturers, etc.
Q. Is it possible to replace the bolts?
A. Bolts can be replaced.
Q. Please tell me the safety factor of the multi-eye bolt.
A. The safety factor is five times higher.
Ｑ. I'm looking for something convenient that I can use to carry heavy things safely.
A. I recommend Multi Eyebolt･Multi Eyebolt Hybrid which has a larger working load than the JIS eyebolt.
Q. Is it hard to break?
A. As it is made of steel, it causes metal fatigue, but it is hard to break because it is manufactured by forging.
Q. Is it rust-resistant?
A. Steel products are painted and plated, but they may rust in use and storage environments.
Q. Can I use it repeatedly?
A. Eyebolt is not recommended to repeat, but Multi Eyebolt･Multi Eyebolt Hybrid can do it. You can use it for a long time if you check it regularly.
Q. Where is it used?
A. It is used for transportation, such as companies that handle molds, large heavy goods, machine tool manufacturers, concrete secondary product manufacturers, etc.
Q. Is it possible to replace the bolts?
A. Bolts can be replaced.
Q. Please tell me the safety factor of the multi-eye bolt.
A. The safety factor is five times higher.
Product Usage
・This product can be used for lifting secondary concrete products, molding dies, and heavy objects in sectors such as civil engineering, construction, shipbuilding, precision and machine tools, and transportation.
・This product can be used for lifting operations from horizontally mounted bolts and tipping operations, which are prohibited with normal JIS eye bolts.
・This product is manufactured by forging, has a strong construction, and uses strong materials, so it is three times the usage load of JIS standard, allowing you to save cost by drilling smaller screw holes in objects.
(comparison of working load)
JIS eyebolt M30 working load 1500kgf
MULT EYEBOLT M3028C working load 5800kgf
・This product can be reused after replacing only the mounting bolt, thus reducing the total cost.
・The length of the mounting bolt can be modified to accommodate its use in various settings.
・It not only lifts heavy objects, but also has a rotating structure, has a good design, and is active in various situations such as outdoor equipment and automobile accessories.
・This product can be used for lifting operations from horizontally mounted bolts and tipping operations, which are prohibited with normal JIS eye bolts.
・This product is manufactured by forging, has a strong construction, and uses strong materials, so it is three times the usage load of JIS standard, allowing you to save cost by drilling smaller screw holes in objects.
(comparison of working load)
JIS eyebolt M30 working load 1500kgf
MULT EYEBOLT M3028C working load 5800kgf
・This product can be reused after replacing only the mounting bolt, thus reducing the total cost.
・The length of the mounting bolt can be modified to accommodate its use in various settings.
・It not only lifts heavy objects, but also has a rotating structure, has a good design, and is active in various situations such as outdoor equipment and automobile accessories.
Certifications
Patent No.3606802
Patent
No.3868439
NETIS KK-150017-VE
