Quick Details
-
Color Temperature(CCT):
-
1800-3000K and 3000-6000K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
1500lm/M
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
0.2
-
LED Light Source:
-
SMD2216
-
LED Quantity:
-
224leds/m
-
length:
-
5m/roll
-
LED Qty/roll:
-
1120LED/ROLL
-
PCB width:
-
10mm
-
Copper foil thickness:
-
2OZ
-
Certification:
-
CE ROSH
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRIGHT
-
Model Number:
-
BG-266-2216-1120
-
Color Temperature(CCT):
-
1800-3000K and 3000-6000K
-
CRI (Ra>):
-
90
-
Input Voltage(V):
-
DC24V
-
Lamp Luminous Flux(lm):
-
1500lm/M
-
Working Lifetime(Hour):
-
50000
-
Working Temperature(℃):
-
-40 - 60
-
Product Weight（kg）:
-
0.2
-
LED Light Source:
-
SMD2216
-
LED Quantity:
-
224leds/m
-
length:
-
5m/roll
-
LED Qty/roll:
-
1120LED/ROLL
-
PCB width:
-
10mm
-
Copper foil thickness:
-
2OZ
-
Certification:
-
CE ROSH
Product Paramenters

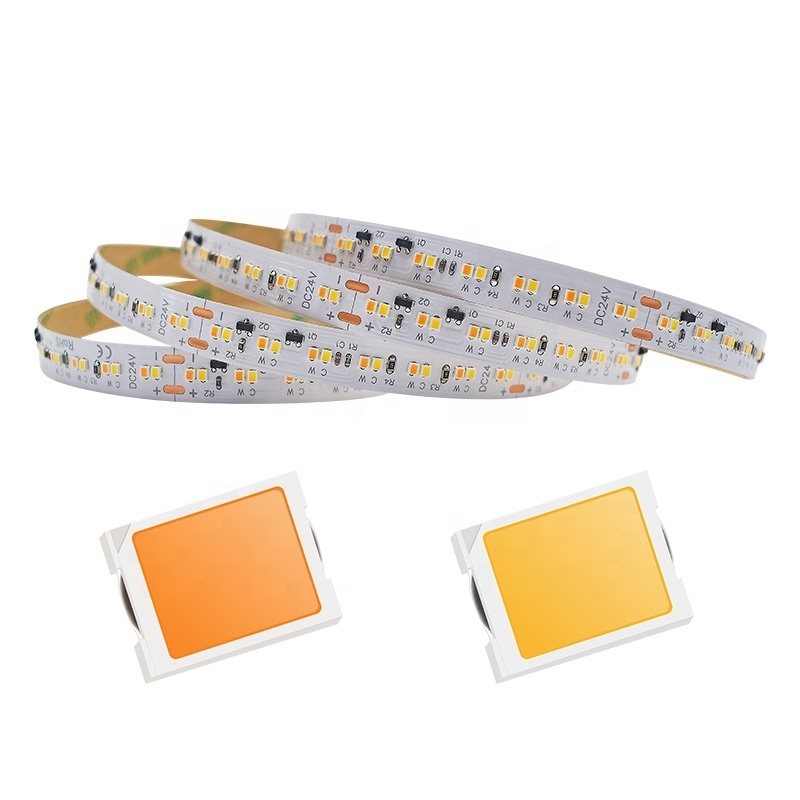

New Smart DTW Led Strip.
* Work with Single channel PWM Dimmer, triac dimmer and 0-10V dimmer.
* Not only dimming brightness, but also adjust color temperature, there is more color in life.
* Imitation of sunrise and sunset, so that the indoor can also feel the time.
* 2 wires for dimming and color changing, very smart. Simple installation and easy replacement.
* Work with Single channel PWM Dimmer, triac dimmer and 0-10V dimmer.
* Not only dimming brightness, but also adjust color temperature, there is more color in life.
* Imitation of sunrise and sunset, so that the indoor can also feel the time.
* 2 wires for dimming and color changing, very smart. Simple installation and easy replacement.
|
Model No.:
|
BG-266-2216-1120
|
|
|
|
|
LED Type
|
SMD 2216
|
|
|
|
|
Typical Color
|
1800-3000K & 3000-6000K
|
|
|
|
|
LED Quantity
|
224LED/M
|
|
|
|
|
Work Voltage
|
24V DC
|
|
|
|
|
Power
|
15W/M
|
|
|
|
|
Brightness
|
1500m
|
|
|
|
|
Ra
|
>90
|
|
|
|
|
Cutting Unit
|
12 LEDs 62.5mm
|
|
|
|
|
PCB Size
|
5000*8mm 2 OZ
|
|
|
|
|
Adhesive Tape
|
3M 9495LE 300MP
|
|
|
|
|
IP Rating Option
|
IP20/IP65/IP66/IP68
|
|
|
|
Product Details
Various color temperature adjustable
Imitation of sunrise and sunset, so that the indoor can also feel the time
Application
Dimensions&Connection Diagram
