Quick Details
-
Model Number:
-
4Y2 CBN wheel
-
Application:
-
band saw grinding wheel
-
Profile:
-
10/30, 9/29, 13/29, 4/32, 7/34 WM or as your drawing
-
Material:
-
CBN + Steel body
-
MOQ:
-
2 PCS
-
Grit:
-
B126
-
Color:
-
grey
-
Style:
-
4Y2 cbn wheel
-
Size:
-
8 inch cbn wheel
-
Dry/Wet:
-
Dry or Wet
-
Product Keywords:
-
6 inch wheel
Quick Details
-
Type:
-
Abrasive Pad
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
ZTSUPERHARD
-
Model Number:
-
4Y2 CBN wheel
-
Application:
-
band saw grinding wheel
-
Profile:
-
10/30, 9/29, 13/29, 4/32, 7/34 WM or as your drawing
-
Material:
-
CBN + Steel body
-
MOQ:
-
2 PCS
-
Grit:
-
B126
-
Color:
-
grey
-
Style:
-
4Y2 cbn wheel
-
Size:
-
8 inch cbn wheel
-
Dry/Wet:
-
Dry or Wet
-
Product Keywords:
-
6 inch wheel
High quality 6 inch wheel vitrified diamond cup grinding wheels for pcd pcbn cutters electroplating
Product Detail
| Application | band saw grinding wheel |
| Profile | 10/30, 9/29, 13/29, 4/32, 7/34 WM or as your drawing |
| Material | CBN + Steel body |
| MOQ | 2 PCS |
| Grit | B126 |
| Color | grey |
| Style | 4Y2 cbn wheel |
| Size | 8 inch cbn wheel |
| Dry/Wet | Dry or Wet |
| Product Keywords | 6 inch wheel |

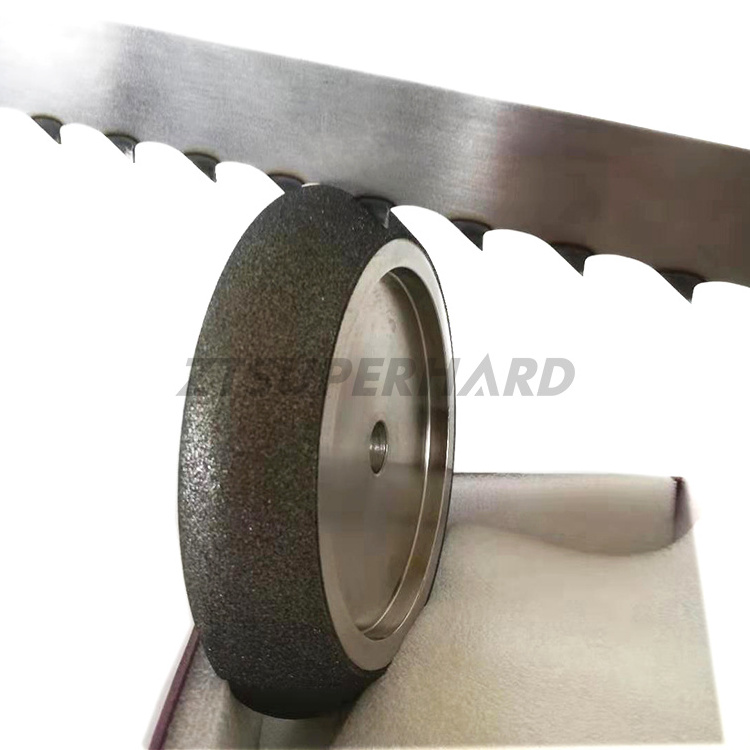

Main features
1. No loss of profile during grinding, no dressing required
2. Cooler cutting CBN results in less metallurgical damage to the blade; moreover, longer life between re-grinds
3. No need to re-open the wheel face
4. The bandsaw itself is sharper after grinding and runs at higher production speeds
5. No abrasive dust generated that can damage machine components
6. Eliminates the possibility of wheel breakage
7. No loss in wheel diameter during grinding; wheel continues to operate at the optimum peripheral speed
8. Wheel cores can be recycled and replated, thus reducing waste
High quality 6 inch wheel vitrified diamond cup grinding wheels for pcd pcbn cutters electroplating require continuous dressing by the saw filer to retain the profile and prevent the wheels from burning the blade. Sharpen bandsaw sawmill blades with JR CBN grinding wheels for consistent and high quality sharpening. Our 6 inch wheel completely profile grind each sawmill blade tip to tip for precision and performance with every cut.
Electroplated CBN grinding wheel are for band saws of following producers
WM profiles, Mill, Simonds, Dakin-Flathers Ripper37 (22mm,19mm), Lenox, Lenox Woodmaster C, Munkfors, Fenes, Armoth, Hakansson, Ro-Ma, Wintersteiger and others...
| Type | Machine type | D | H | T |
| CBN grinding wheels | Fenes,Ro-Ma | 127 | 12.7 | 22.2 |
| 150 | 20 | 22.2 | ||
| 203 | 32 | 22.2 | ||
| Sword | 127 | 12.7 | 9 | |
| Wood-Mizer 10/30 | 127 | 12.7 | 22.2 | |
| 150 | 20 | 22.2 | ||
| 203 | 25.4 | 22.2 | ||
| 203 | 32 | 22.2 | ||
| Wood-Mizer 9-29 | 127 | 12.7 | 22.2 | |
| 203 | 25.4 | 22.2 | ||
| 203 | 32 | 22.2 | ||
| Other model | WM10/30,WM13/29,WM12/28,WM9/29,WM6/30,WM7/39.5,Lenox10/30 | |||
ZTSUPERHARD™ 6 inch wheel mainly used for machining tungsten carbide, ceramics, glass, composite, sapphire, high speed steel, tool steel, mould steel, stainless steel, cast iron and so on
Henan Zhongtu Superhard Material Co., Ltd is located in Zhengzhou high-tech Development Zone. It is a high-tech enterprise integrating production, sales, service and research. The company has grinding wheel workshop and cutting tool workshop. Monthly output of grinding wheels are 5,000 ~ 7,000 pieces and Turning tools are 100,000 ~ 130,000 pieces.
Ztsuperhard adopts advanced technology and equipment, strict quality management, and has won highly praise from customers. Our main products include resin bond grinding wheels, vitrified bond grinding wheels, metal bond grinding wheels, electroplated bond grinding wheels, PCBN cutting tools, PCD cutting tools etc.
