Quick Details
-
Warranty:
-
5 Years/60 Months
-
Chip:
-
Lattice
-
Resolution:
-
1080P@60Hz
-
Transmission Distance:
-
500m up to 80km
-
Support:
-
EDID
-
Power Input:
-
AC100V-240V,47-63Hz
-
OperationTemperature:
-
-25 ~+60°C,-13~+140°F
-
Storage Tempareture:
-
-40 ~+80°C,-40~+176°F
-
Humidity:
-
5-90%@45℃
-
MTBF:
-
≥100000H
Quick Details
-
Brand Name:
-
Axtron
-
Model Number:
-
AX100V
-
Place of Origin:
-
Henan, China
-
Warranty:
-
5 Years/60 Months
-
Chip:
-
Lattice
-
Resolution:
-
1080P@60Hz
-
Transmission Distance:
-
500m up to 80km
-
Support:
-
EDID
-
Power Input:
-
AC100V-240V,47-63Hz
-
OperationTemperature:
-
-25 ~+60°C,-13~+140°F
-
Storage Tempareture:
-
-40 ~+80°C,-40~+176°F
-
Humidity:
-
5-90%@45℃
-
MTBF:
-
≥100000H

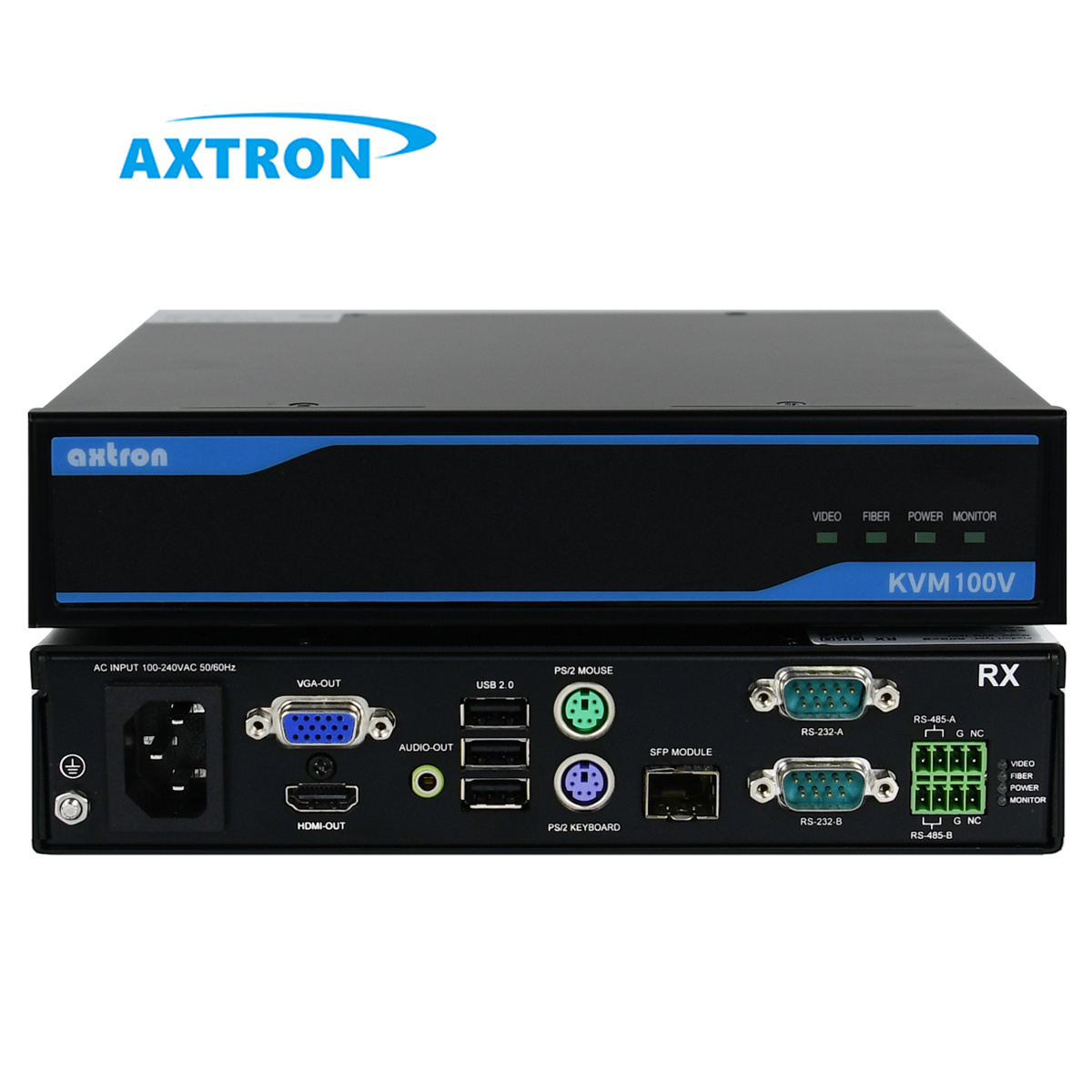

Axtron fiber KVM extender,model: 100V is a KVM extender based on the FPGA hardware platform, with HDMI digital display + VGA analog port. It can transmit HD video streams and control signals (including USB keyboard and mouse, 3.5MM audio, HDMI video signal, VGA video signal, maximum support WUXGA 1920*1200 resolution) through a single SC or LC fiber.
The whole product supports USB2.0-HID input peripherals and does not need to install third-party drivers when using, simplifying the usage process. It supports Windows XP, Windows 7, Windows 10, Linux, and other mainstream operating systems. Axtron industrial-grade extender overcomes the influence of ambient temperature and electromagnetic interference, and solves the problems of image blur, trailing color separation, and other phenomena.
KVM100V extender core key materials use imported components, and the product complies with ROHS standards. It has a long supply cycle of 10 years, informs users one year in advance before production stops, and develops corresponding replacement plans to help users’ projects run reliably for a long time.
- Compact desktop design
- Supports HDMI & VGA signal mixing
- Integrated two-way RS232 & 485 communication ports for remote output
- Supports PS/2 interface keyboard and mouse
- Supports USB2.0 protocol pass-through
- Maximum transmission distance of 80km
|
Items |
Transmitter (TX) |
Receiver (RX) |
|
VGA IN |
1 |
NA |
|
VGA OUT |
NA |
1 |
|
HDMI IN |
1 |
NA |
|
HDMI OUT |
NA |
1 |
|
HDMI LOOP |
1 |
NA |
|
Power |
AC/100~220V/47~63Hz |
AC/100~220V/47~63Hz |
|
Fiber Module |
SFP+ *1 |
SFP+ *1 |
|
Audio IN |
1 |
NA |
|
Audio OUT |
1 |
1 |
|
USB2.0 IN |
1 |
3 |
|
RS232 |
2 |
2 |
|
RS485 |
2 |
2 |
|
PS/2 |
2 |
2 |
|
Max. Resolution |
1080P@ 60HZ, 4:4:4 |
|
|
Max. Distance |
Multi-mode fiber 500M,single-mode fiber UP to 80KM |
|
| Shock |
IEC 60068-2-6 |
|
|
Green Product |
Rohs |
|
|
EMS |
EN 61000-4-2(ESD)Level 3, EN 61000-4-3(RS)Level 3 , EN 61000-4-4(EFT)Level 3 , EN 61000-4-5(Surge)Level 3 , EN 61000-4-6(CS)Level 3 , EN 61000-4-8 |
|
|
Connection Cable |
Fiber Cable |
|
|
Power Supply |
Power supply support
AC/100~220V/47~63Hz
|
|
|
Operating Temperature |
-25-60℃ |
|
|
Storage Temperature |
-40-80℃ |
|
|
Humidity |
5-90% RH, Non-condensing |
|
|
Material |
IP30 metal housing |
|
|
Product Dimension (mm) |
210*206*44.40 |
210*206*44.40 |
|
Net Weight |
1645g |
1640g |
How long is the warranty on your product?
Our product warranty is 3 years.
Can you accept customized products? OEM and ODM?
We accept customization, our mature R&D team can accept all kinds of customization
About customized products, can I customize them according to the use environment?
Our professional engineering team has provided solutions to many Different use requirements clients.
How can i get a sample?
You can contact us directly and we will arrange samples for you.
Can your products be used in the international rail transit industry?
Yes, we can. Our certificates are certified by formal institutions. Our products guarantee reliability, safety and environmental protection.
Can you provide product inspection report service and online video tracking inspection service?
We provide product test report, you can also directly through the phone video tracking product performance test, we will provide you with test project information. However, please note that long time test items need to make an appointment.
