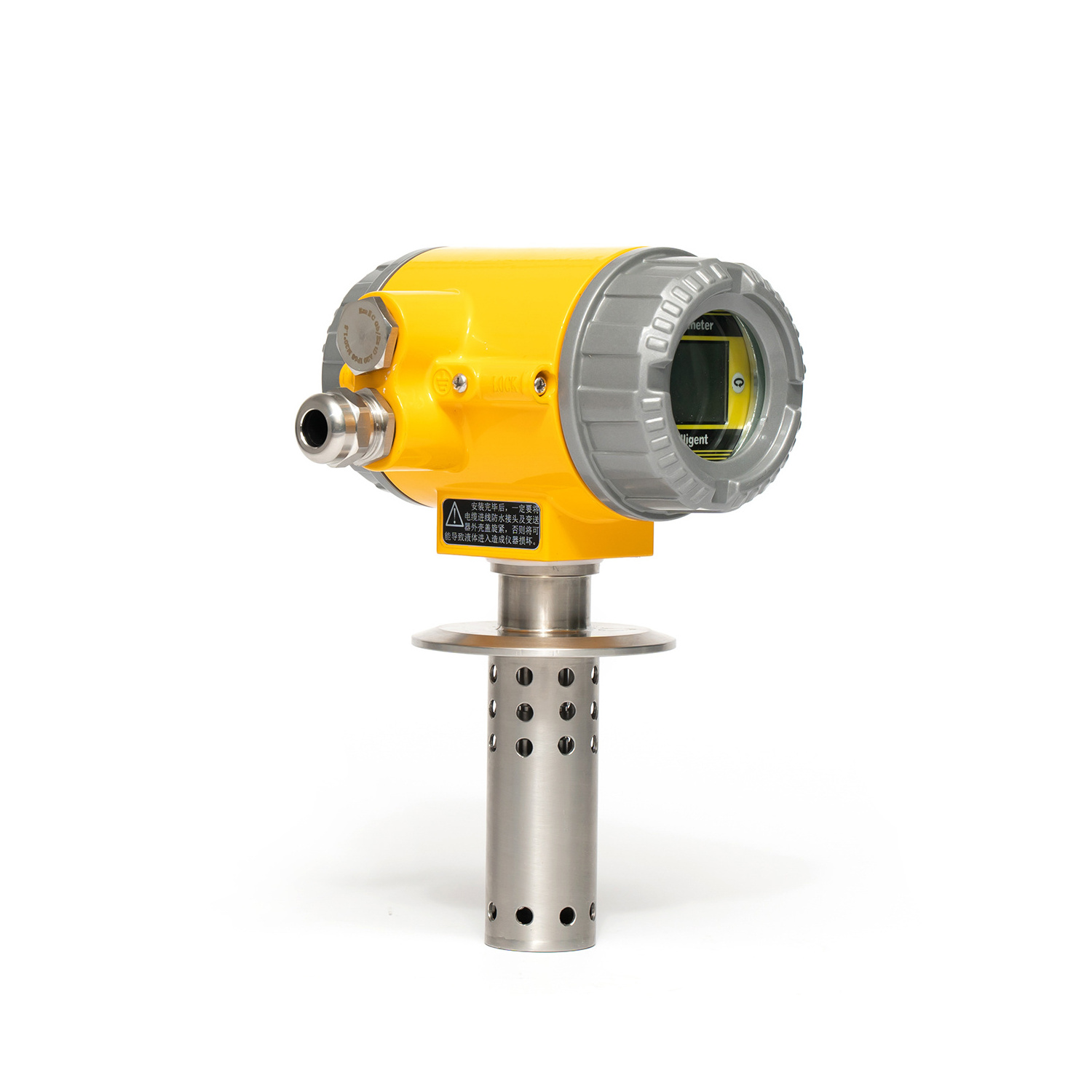

Alcohol concentration meter/concentration monitor for brewing equipment/digital density meter

Alcohol concentration meter/concentration monitor for brewing equipment/digital density meter

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2650

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: APX

Model Number:: APX301

Product name:: Fork density meter

Function:: online density and concentration displaying

Application:: industrial density measurement

Power supply:: 24VDC

Housing Material:: aluminum housing

Output signal:: 4-20mA/RS485/0-1000HZ

Max pressure:: 207 Bar

wetted material:: SS316/2205 stainless steel/ Hastelloy C/ PTFE

Fluid viscosity range:: 0-600 cP

Length:: 150mm

Quick Details

Warranty:: 1 years

Type:: Direct Insertion

Place of Origin:: Shandong, China

Brand Name:: APX

Model Number:: APX301

Product name:: Fork density meter

Function:: online density and concentration displaying

Application:: industrial density measurement

Power supply:: 24VDC

Housing Material:: aluminum housing

Output signal:: 4-20mA/RS485/0-1000HZ

Max pressure:: 207 Bar

wetted material:: SS316/2205 stainless steel/ Hastelloy C/ PTFE

Fluid viscosity range:: 0-600 cP

Length:: 150mm

Alcohol concentration meter/concentration monitor for brewing equipment/digital density meter

Product Description

Direct-insertion meter for continuous, real-time density and concentration measurement in pipelines, bypass loops, and tanks

The Plug-in (Direct Insertion) Densimeter can detect density on line in real time. It can be applied to process control of products with density as basic parameter or quality control with solid percentage or concentration percentage as reference. Typical industries include petrochemical industry, brewing industry, food industry, pharmaceutical industry and mineral processing (such as clay, carbonate, silicate, etc.), which are specifically applied to interface detection in multi-product pipelines in the above industries, density detection of stirred mixture, end-point monitoring of reaction kettle, and segregation device interface detection.

Finished instrument aging process

Batch semi-finished products

Product Parameter

Product name	Direct Insertion Fork densitometer
Measurement range	0.5-2.5 g /cc (500-2500 kg/m3)
Function	Test Density
Temperature range	-50 c ~+150 c
Measure Range	0-2500kg/m3
Accuracy	±2kg/m3
Max Working Pressure	207bar (3000psi)
Medium Viscosity	0-20000cp
Power Supply	24 V DC
Signal Output	4-20mA /RS485/0-1000HZ
IP Grade	IP67
Wetted Material	SS316/SS2205/Hastelloy C/ PTFE
Process Connecting	Flange
Installation Pipe Request	Min DN100,full flow pipe , flow speed less than 5m/s
