Quick Details
-
WIFI Standard:
-
IEEE802.11b/g/n
-
Application:
-
App IOS Andorid Control
-
work mode:
-
STA and AP
-
Output frequency:
-
50/60Hz
-
Input Voltage:
-
AC100-240V
-
Rated Power for single gang:
-
500W
-
Rated Current:
-
10A
-
Color:
-
Gold
-
Warranty:
-
2 years
Quick Details
-
Max. Current:
-
10A
-
Place of Origin:
-
Guangdong, China
-
Wireless Standard:
-
WiFi 2.4GHz
-
WIFI Standard:
-
IEEE802.11b/g/n
-
Application:
-
App IOS Andorid Control
-
work mode:
-
STA and AP
-
Output frequency:
-
50/60Hz
-
Input Voltage:
-
AC100-240V
-
Rated Power for single gang:
-
500W
-
Rated Current:
-
10A
-
Color:
-
Gold
-
Warranty:
-
2 years
Smart Device For Home Automation 110V Wifi Touch Panel 2 Way Switch Glass Relay Switch
1.
High quality of touch panel, control home appliance or lamp simply by touch
2.
Work with Amazon Alexa and the Google assistant, control with your voice.
3.
Patent WiFi access technology, users configure network one step intelligently by APP
4. Control lamps and appliance from anywhere by APP with WiFi/4G access
5. Set schedule: Turn on/off your devices based on specific time

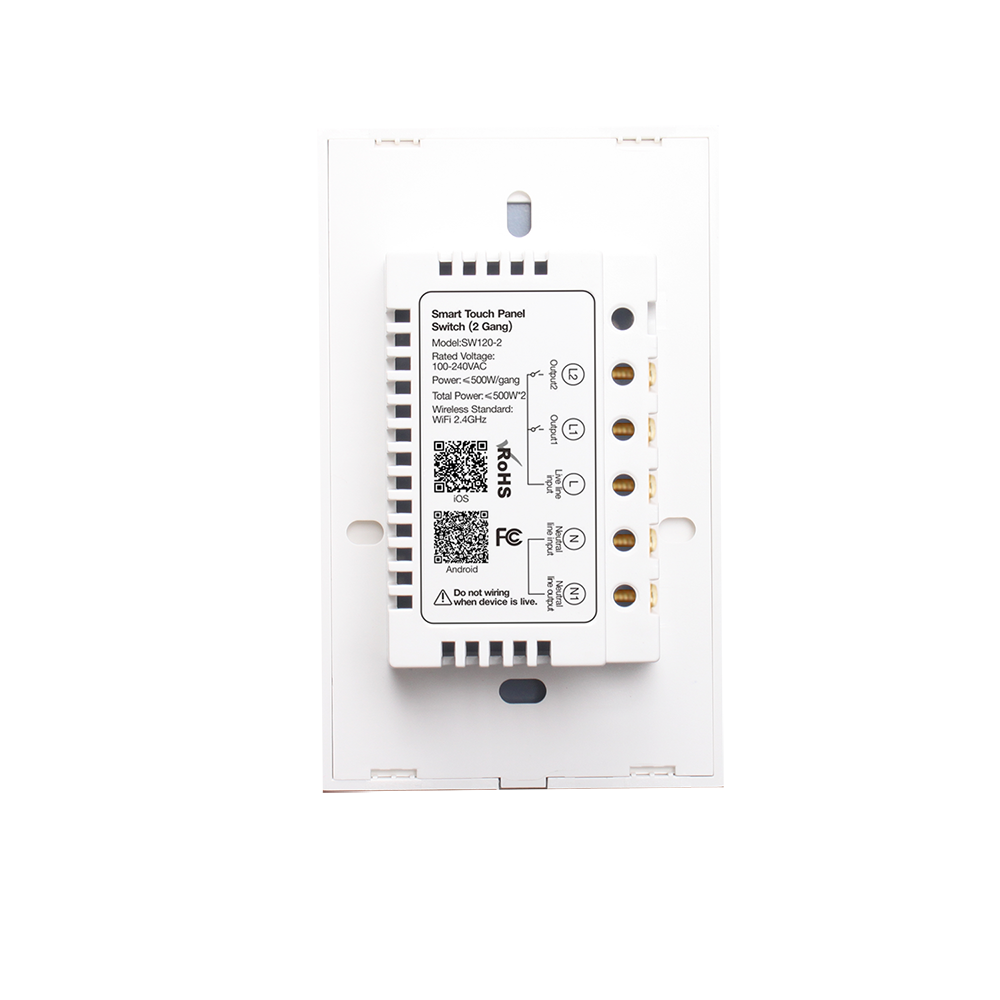

| Pin | Label | Function DESCRIPTION |
|
N1 |
Neutral line output |
Output Neutral line termin al( it may not need to be connected ) |
|
N |
Neutral line input |
AC Neutral line input terminal |
|
L |
Live line input |
AC l ive line input terminal |
| L1 |
Output 1 |
AC output terminal, connect load device(small appliance, lamp) Rated Power: 500W |
| L2 |
Output 2 |
AC output terminal, connect load device(small appliance, lamp) Rated Power: 500W(Only SW86-2/SW86-3 have L2 output) |
| L3 |
Output 3 |
AC output terminal, connect load device(small appliance, lamp) Rated Power: 500W(Only SW86-3 has L3 output) |
|
Model |
SW120-1 |
SW120-2 |
SW120-3 |
|
Control |
1 Gang |
2 Gang |
3 Gang |
|
Wireless Standard |
WiFi 2.4GHz |
WiFi 2.4GHz |
WiFi 2.4GHz |
|
Input Voltage |
AC100-240V |
AC100-240V |
AC100-240V |
|
Rated Power for single gang |
500W |
500W |
500W |
|
Total Rated Power |
500W |
1000W |
1500W |
|
Rated Current |
10A |
10A |
10A |
