Quick Details
-
Model Number:
-
GA615K
-
colour:
-
sky blue,green
Quick Details
-
Type:
-
projectile loom
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
luli
-
Model Number:
-
GA615K
-
colour:
-
sky blue,green
The projectile loom application:

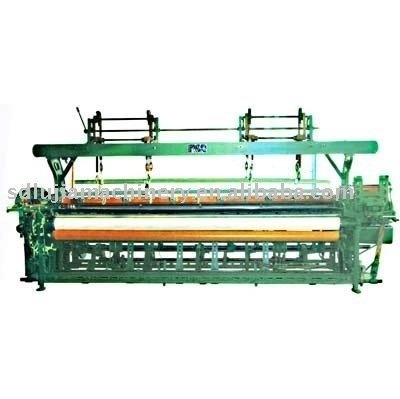

GA615K-230-280cm-Wide-breadth Automatic Shuttle changing Loom
This loom is essentically suitable for weaving cotton cloth of plain weave. If attached with various of twill weave or shedding equipment,it also can weave cloth of twill or more complicated fabric . Technical characteristic of cloth is that it can weave from plain weave to 16 shafts weave.
Technical character:
(1)Type: under picking,non-stop and automatic shuttle changing type
(2)Effective reed space ,2300mm,2500mm,2800mm,3200mm,3300mm
(3)Machine hand-L·H&R·H
(4)Crank shaft speed-110-130r/min
(5)Number of shuttle box:1×1
(6)Angle between read and shuttle race:86°36
(7)Diameter of warp beam flanges:495/550mm
(8)The diameter of full cloth rullerdia-Φ300mm
(9)Capacity of shuttle magazine ----10shuttles.
(10)Overall dimension of loom:
Length:3732mm (2300) , 3932mm (2500) , 4232mm (2800),4632mm (3200) ,4732mm (3300) ;
Width :1617mm.
Height :1640mm(plain,weave),2250mm(with dobby ).
