Quick Details
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNVA
-

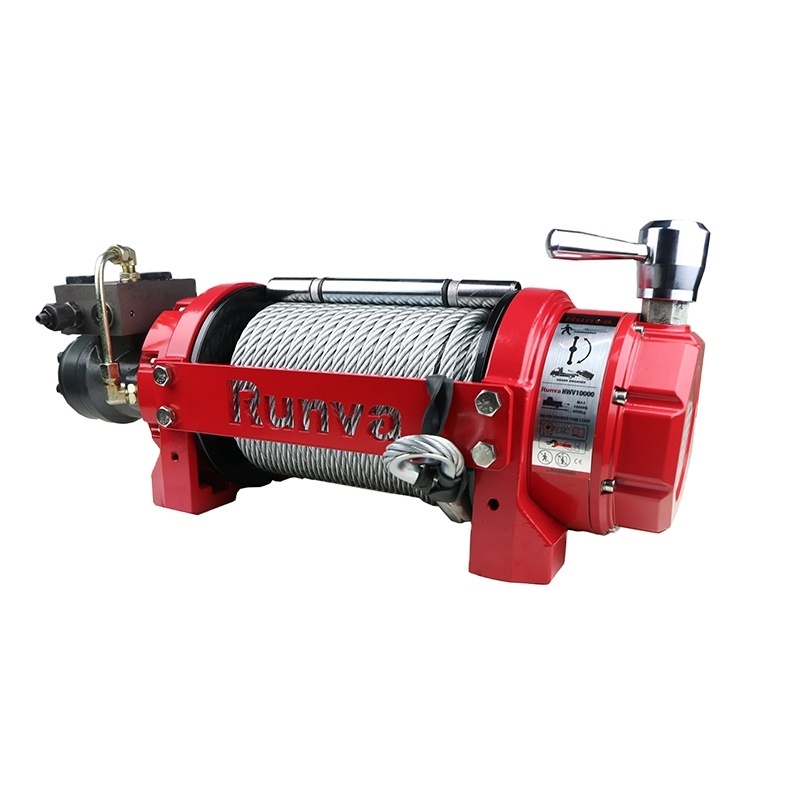

Model Number:
-
HWV10000
-
Type:
-
Hydraulic Winch
-
Color:
-
red
-
Material:
-
steel
-
MOQ:
-
18pcs
-
Cable:
-
Steel Cable
-
Packing:
-
carton
-
Brand:
-
runva
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
CRANES
-
Capacity:
-
10000lb
-
Warranty:
-
1 year, 1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RUNVA
-
Model Number:
-
HWV10000
-
Type:
-
Hydraulic Winch
-
Color:
-
red
-
Material:
-
steel
-
MOQ:
-
18pcs
-
Cable:
-
Steel Cable
-
Packing:
-
carton
-
Brand:
-
runva
SPECIFICATION(HW V 10000)
|
Rated line pull |
100 00 lbs ( 4536 kgs) |
|
Motor displacement |
100ml/r |
|
Oil flow |
5 ~ 60L /min |
|
Pressure |
15Mpa |
|
Gear reduction ratio |
17.6:1 |
|
Cable (Dia. × L) |
Ø 13 / 32 " × 83.7 ' ( Ø 1 0.2 mm × 25.5 m ) |
|
Drum size(Dia. × L) |
Ø 4.0 " × 10.0 " ( Ø 102 mm × 253 mm ) |
|
Mounting bolt pattern |
14.7 " × 4.5 " (374.2mm × 114.3mm ) ; 11.5 " × 6.7" (291.6mm × 1 71 .2mm ) 8-M10 |
|
Overall dimensions (L × W × H) |
2 5.5 " × 9. 3 " × 9.7 " 647 mm × 2 37 mm × 2 48 mm |
|
Net weight Ibs(kg) |
112.4 51 |
Pull , Speed, Pressure , Flow (First layer)
|
Line pull lb s (kgs) |
Pressure Mpa(Psi) |
Flow G/min (L/min) |
Line speed ft/min(m/min) |
|
0 |
3 . 0 ( 435.1 ) |
1.3 ( 5 ) |
3.0 ( 0.9 ) |
|
4 000( 1814 ) |
6.8(986.2 ) |
2.6 ( 10 ) |
5.9 ( 1.8 ) |
|
60 00( 2722 ) |
9.2 ( 1334.3 ) |
5.2 ( 20 ) |
11.8 ( 3.6 ) |
|
80 00( 3629 ) |
1 2.0 ( 1740.4 ) |
10.4 ( 40 ) |
23.6 ( 7.2 ) |
|
10000 ( 4536 ) |
1 4 . 0 ( 2030.5 ) |
15.6 ( 60 ) |
36.1 ( 11 ) |
Line P ull And Rope Capacity Inlayer
|
Layer of wire rope |
Rated l ine pull lbs(k gs ) |
|
|
1 |
10000 ( 4536 ) |
|
|
2 |
7355 ( 3336 ) |
|
|
3 |
6780 ( 3075 ) |
|
|
4 |
5711 ( 2591 ) |
|
