Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYD MOTOR; DONGZHENG MOTOR
-
Model Number:
-
37JB6K/35ZY30
-
Torque:
-
Up to 1.0N.m
-
Motor type:
-
37mm Micro DC Parallel Shaft Gear Motor
-
Color:
-
Silver or Customized
-
Typical Applications:
-
Motion control
-
Diameter:
-
35mm
-
Noise:
-
Low noise level
-
Shaft diameter:
-
Customized
-
Brush Type:
-
Carbon Brush System
-
Shaft and flange dimensions:
-
Customer's needs
-
Certification:
-
CCC, CE, UKCA, RoHS, Reach
Quick Details
-
Speed(RPM):
-
1 ~ 999rpm
-
Continuous Current(A):
-
0.1A-5A
-
Efficiency:
-
TBD
-
Warranty:
-
12 months
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DYD MOTOR; DONGZHENG MOTOR
-
Model Number:
-
37JB6K/35ZY30
-
Torque:
-
Up to 1.0N.m
-
Motor type:
-
37mm Micro DC Parallel Shaft Gear Motor
-
Color:
-
Silver or Customized
-
Typical Applications:
-
Motion control
-
Diameter:
-
35mm
-
Noise:
-
Low noise level
-
Shaft diameter:
-
Customized
-
Brush Type:
-
Carbon Brush System
-
Shaft and flange dimensions:
-
Customer's needs
-
Certification:
-
CCC, CE, UKCA, RoHS, Reach
Product Description

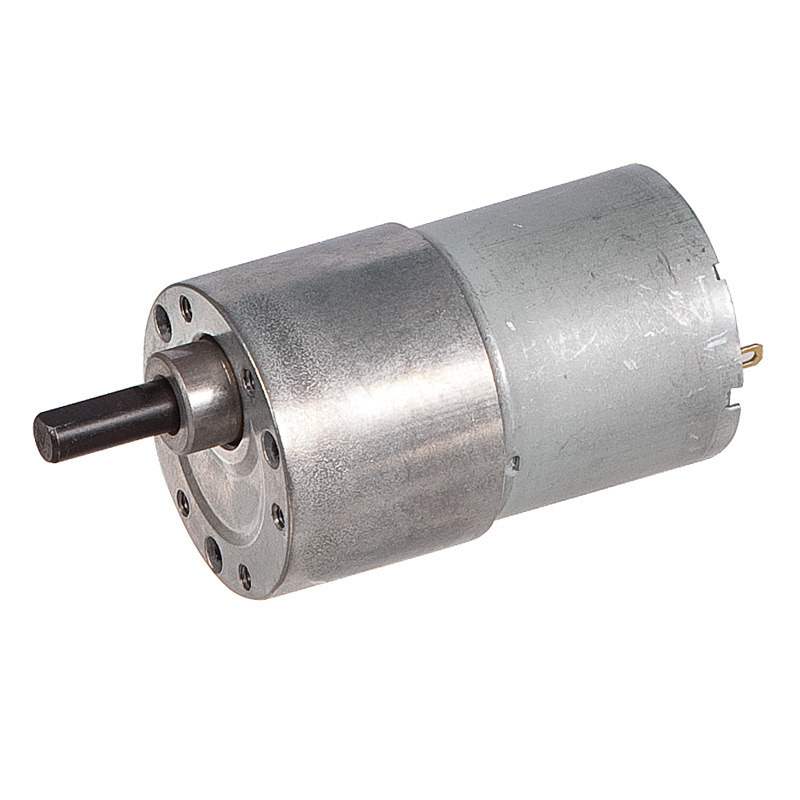

37mm Micro DC Parallel Shaft Gear Motor
DC Spur Gear Motor
Model: 37JB6K/35ZY30
Voltage: 12 ~ 400V DC
Rated torque: up to 1 N.m for S1 duty cycle
CE, UKCA, Reach and RoHS approval
Optional components: magnetic/optical encoder; brake; cable connector
Customized shaft dimensions and technical specs. are available upon requested.
Only Motor Technical Data:
|
电机型号
Type |
额定电压
Rated voltage (VDC) |
空载转速
No-load speed (r/min) |
空载电流
No-load current (mA) |
额定转速
Rated speed (r/min) |
额定转矩
Rated torque mN.m |
输出功率Output power (W)
|
额定电流
Rated current (mA) |
堵转力矩
Stall torque (mN.m) |
堵转电流
Stall current (A) |
|
35ZY30-1230
|
12
|
3000
|
60
|
2400
|
5
|
1.2
|
280
|
12
|
0.56
|
|
35ZY30-1250
|
12
|
5000
|
80
|
4300
|
4
|
1.8
|
330
|
24
|
1.20
|
Gear Motor Technical Data:
|
型号
Model No. |
减速比
Reduction ratio |
减速级数
Number of gear trains |
减速器长度
Length(L)
mm
|
空载转速
No-load speed
r/min
|
额定转速
Rated speed r/min |
额定转矩
Rated torque
N.m
|
最大瞬间允许负载
N.m Max. permissible load in a short time |
转 向 Direction of rotation
|
|
35ZY30-1230
|
10
|
2
|
19
|
300
|
240
|
0.04
|
0.3
|
CCW
|
|
|
18
|
3
|
21.5
|
167
|
133
|
0.07
|
0.6
|
CW
|
|
|
30
|
3
|
21.5
|
100
|
80
|
1.11
|
0.6
|
CW
|
|
|
50
|
4
|
24
|
60
|
48
|
0.16
|
1.2
|
CCW
|
|
|
75
|
4
|
24
|
40
|
32
|
0.24
|
1.2
|
CCW
|
|
|
100
|
4
|
24
|
30
|
24
|
0.33
|
1.2
|
CCW
|
|
|
150
|
5
|
26.5
|
20
|
16
|
0.44
|
1.8
|
CW
|
|
|
200
|
5
|
26.5
|
15
|
12
|
0.59
|
1.8
|
CW
|
|
|
250
|
5
|
26.5
|
12
|
10
|
0.6
|
1.8
|
CW
|
|
|
300
|
5
|
26.5
|
10
|
9
|
0.6
|
1.8
|
CW
|
|
|
400
|
6
|
29
|
7.5
|
7
|
0.6
|
1.8
|
CCW
|
|
|
500
|
6
|
29
|
6
|
5
|
0.6
|
1.8
|
CCW
|
|
|
750
|
6
|
29
|
4
|
3.2
|
0.6
|
1.8
|
CCW
|
|
|
1000
|
6
|
29
|
3
|
2.4
|
0.6
|
1.8
|
CCW
|
|
|
10
|
2
|
19
|
500
|
430
|
0.04
|
0.3
|
CCW
|
|
|
18
|
3
|
21.5
|
278
|
239
|
0.05
|
0.6
|
CW
|
|
|
30
|
3
|
21.5
|
167
|
143
|
0.1
|
0.6
|
CW
|
|
|
50
|
4
|
24
|
100
|
86
|
0.16
|
1.2
|
CCW
|
|
|
75
|
4
|
24
|
67
|
57
|
0.22
|
1.2
|
CCW
|
|
|
100
|
4
|
24
|
50
|
43
|
0.29
|
1.2
|
CCW
|
|
|
150
|
5
|
26.5
|
33
|
29
|
0.44
|
1.8
|
CW
|
|
|
200
|
5
|
26.5
|
25
|
22
|
0.58
|
1.8
|
CW
|
|
|
250
|
5
|
26.5
|
20
|
17
|
0.6
|
1.8
|
CW
|
|
|
300
|
5
|
26.5
|
16
|
14
|
0.6
|
1.8
|
CW
|
|
|
400
|
6
|
29
|
12
|
11.3
|
0.6
|
1.8
|
CCW
|
|
|
500
|
6
|
29
|
10
|
9.2
|
0.6
|
1.8
|
CCW
|
|
|
750
|
6
|
29
|
6.6
|
6.3
|
0.6
|
1.8
|
CCW
|
|
|
1000
|
6
|
29
|
5
|
4.8
|
0.6
|
1.8
|
CCW
|
