Quick Details
-
Wheel:
-
4WD
-
Mini ground clearance:
-
235mm
Quick Details
-
Place of Origin:
-
China
-
Weight:
-
1620 KG
-
Wheelbase:
-
1780mm
-
Wheel:
-
4WD
-
Mini ground clearance:
-
235mm
Contact Way

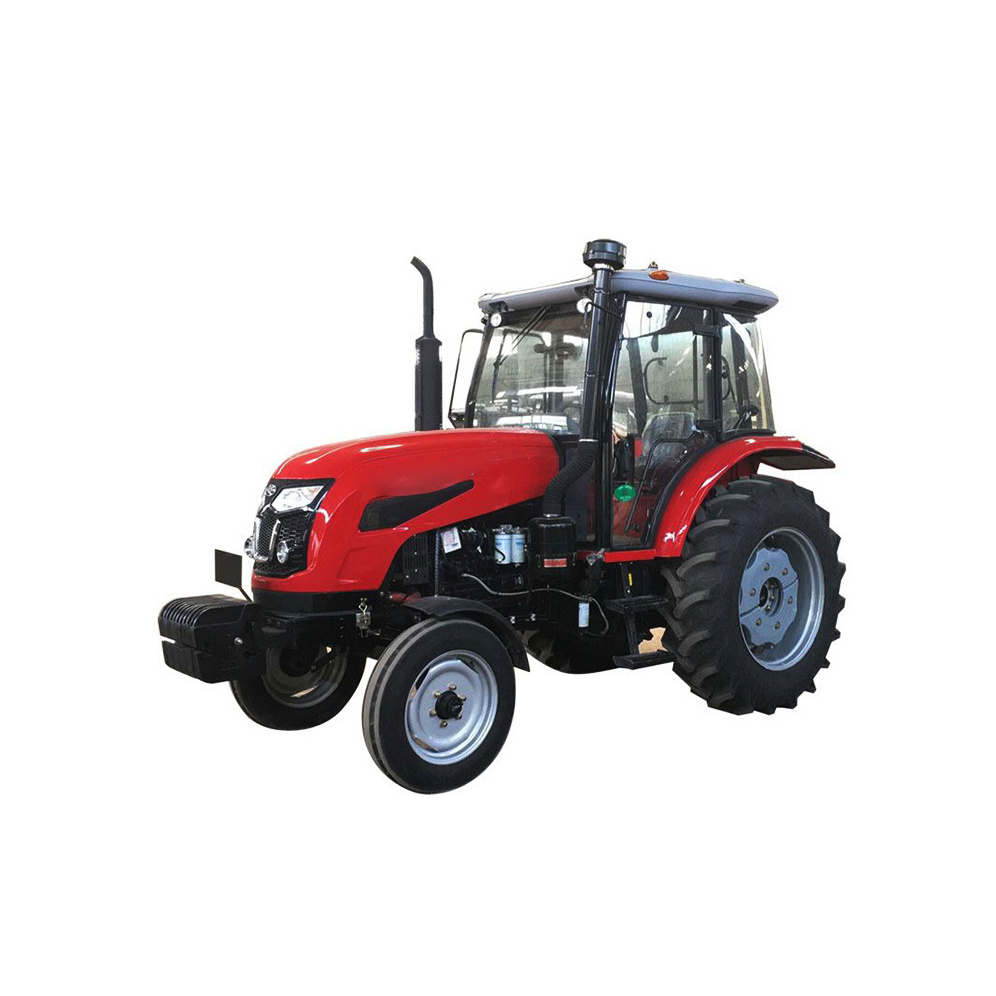

LUTONG 4x4 Compact Tractor With Loader And Backhoe 50hp Tractor LT500
Product Overview
It is a good engine with good reliability, high torque reserve, low fuel consumption and high economic benefit.
The gearbox adopts 4 x (2+1) shuttle-type meshing gear shift, with 8 forward gears, 4 reverse gears, reasonable gear matching and
high operating efficiency;
It adopts a non-independent power output device, with stable transmission, large bearing capacity and rotational speed (540/720,
540/1000 RPM) for selection, and meets the requirements of compound operation.
The whole hydraulic steering control system with independent oil circuit is adopted, which is flexible, reliable and labor-saving.
It adopts disc brake with large braking torque and good braking effect.
The final transmission adopts planetary deceleration mechanism, with compact structure and large deceleration ratio;
New streamline appearance, generous, modern, fashion.
The gearbox adopts 4 x (2+1) shuttle-type meshing gear shift, with 8 forward gears, 4 reverse gears, reasonable gear matching and
high operating efficiency;
It adopts a non-independent power output device, with stable transmission, large bearing capacity and rotational speed (540/720,
540/1000 RPM) for selection, and meets the requirements of compound operation.
The whole hydraulic steering control system with independent oil circuit is adopted, which is flexible, reliable and labor-saving.
It adopts disc brake with large braking torque and good braking effect.
The final transmission adopts planetary deceleration mechanism, with compact structure and large deceleration ratio;
New streamline appearance, generous, modern, fashion.
Product Paramenters
|
Tractor Model
|
|
LT500
|
|
|
Drive Type
|
|
4×2
|
|
|
Overall Dimension L×W×H(mm)
|
|
3910×1620×2130
|
|
|
Wheel base(mm)
|
|
1940
|
|
|
Front wheel tread(mm)
|
|
1200--1500 (Common 1300)
|
|
|
Rear wheel tread(mm)
|
|
1200--1500(Common 1300)
|
|
|
Min. ground clearance(mm)
|
|
360
|
|
|
Min. steering radius
|
Unilateral brake(m)
|
3.3
|
|
|
|
Not unilateral brake(m)
|
3.7
|
|
|
Min. operating weight (KG)
|
|
1840
|
|
|
Gearbox gears number
|
|
12F+12R
|
|
|
Speed
|
Forward(Kw/h)
|
2.46-34.02
|
|
|
|
Reverse(Kw/h)
|
2.15-29.82
|
|
|
Engine
|
Model
|
A498BT-6A
|
|
|
|
Rated power (Kw)
|
36.8
|
|
|
|
Rated speed (r/min)
|
2400
|
|
|
Tires spec.
|
Front tires
|
6.00-16
|
|
|
|
Rear tires
|
13.6-28
|
|
|
Steering Type
|
|
Full hydraulic front wheels steering
|
|
|
Max. lifting force( KN )
|
|
8.28
|
|
|
PTO
|
Type
|
Rear-mounted, Semi-independent type
|
|
|
|
Speed (r/min)
|
540/760 or 540/1000
|
|
|
|
Power(Kw)
|
≥31.3
|
|
|
Control type of ploughing depth
|
|
Height control & flotation control
|
|
|
Max. traction force (KN)
|
|
10.7
|
|
|
Front / rear Ballast (KG)
|
|
104/220
|
|
