Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Dimensions(L*W*H):
-
920x920x590-830mm
-
Weight:
-
82 KG
-
Max. Print Area:
-
custom
-
Name:
-
tshirt screen printing machine
-
Printing Color:
-
4 Color
-
Machine color:
-
Blue
-
Printing Products:
-
t-shirt,cloth, plastic, circuit boards,etc
-
Biggest Screen Sized it can apply to:
-
530x430mm
-
Pallet Size:
-
550x450mm
-
Shipping Volume:
-
0.30 Cubic Meter
-
Package carton:
-
four carton
-
Net Weight:
-
163Lb (74kg)
-
Max carton weight:
-
57Lb (26kg) 23"x23"x13" (59x59x31cm)
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
NO
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Disen
-
Dimensions(L*W*H):
-
920x920x590-830mm
-
Weight:
-
82 KG
-
Max. Print Area:
-
custom
-
Name:
-
tshirt screen printing machine
-
Printing Color:
-
4 Color
-
Machine color:
-
Blue
-
Printing Products:
-
t-shirt,cloth, plastic, circuit boards,etc
-
Biggest Screen Sized it can apply to:
-
530x430mm
-
Pallet Size:
-
550x450mm
-
Shipping Volume:
-
0.30 Cubic Meter
-
Package carton:
-
four carton
-
Net Weight:
-
163Lb (74kg)
-
Max carton weight:
-
57Lb (26kg) 23"x23"x13" (59x59x31cm)
|
Customer First Service First |
|
Product video: https://www.youtube.com/watch?v=WWndERsjSG0

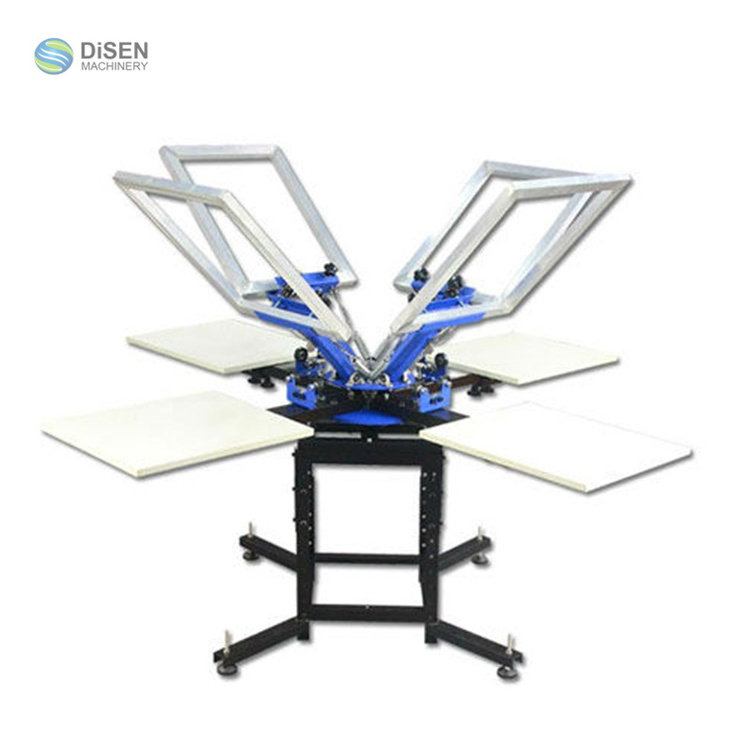

4 Color 4 Station Double Rotary tshirt screen printing machine 4 Color 4 Station Screen Press can apply 4 screens to 4 stations simultaneously. The printing layer and the screen layer and the pallet layer can rotate independently, which makes it easy for multi-color printing, material loading and unloading, finally brings more wide range, convenient and faster printing effect.
4 Color 4 Station Screen Press is the only the one and only double-rotary printing machine which adopts assembled instruction but still can guarantee the accuracy color registers of four colors in four stations. It has kept the common functions of the similar machines, such as double rotary of pallet layer and screen layer, high pulling intensity of double springs, height of pallet putting up and down, screen adjusted in all round, left and right location of screen frame support arm, etc. What's more, it has some special functions with human nature, overcoming the shortcomings of the traditional machines, which brings more relaxed, accurate but higher efficient printing effect. So it's the highest cost-performance screen printing machine during the screen presses with the same prices.
Special Features and Functions
tshirt screen printing machine
tshirt screen printing machine
Main features
tshirt screen printing machine
Parameters
|
|
Customer First Service First |
|
tshirt screen printing machine
tshirt screen printing machine
tshirt screen printing machine
tshirt screen printing machine |
| Customer First Service First |
|
tshirt screen printing machine Screen printing is a printing technique that uses a woven mesh to support an ink-blocking stencil. The attached stencil forms open areas of mesh that transfer ink or other printable materials which can be pressed through the mesh as a sharp-edged image onto a substrate. A fill blade or squeegee is moved across the screen stencil, forcing or pumping ink into the mesh openings for transfer by capillary action during the squeegee stroke.
Screen printing is also a stencil method of print making in which a design is imposed on a screen of polyester or other fine mesh, with blank areas coated with an impermeable substance, and ink is forced into the mesh openings of the mesh by the fill blade or squeegee and onto the printing surface during the squeegee stroke. It is also known as silkscreen,serigraphy, and serigraph printing. You can also have more than one colour printing, for example you could have a striped printing.
Printing technique
A screen is made of a piece of mesh stretched over a frame. A stencil is formed by blocking off parts of the screen in the negative image of the design to be printed; that is, the open spaces are where the ink will appear on the substrate.
Before printing occurs, the frame and screen must undergo the pre-press process, in which an emulsion is 'scooped' across the mesh and the 'exposure unit' burns away the unnecessary emulsion leaving behind a clean area in the mesh with the identical shape as the desired image. The surface (commonly referred to as a pallet) that the substrate will be printed against is coated with a wide 'pallet tape'. This serves to protect the 'pallet' from any unwanted ink leaking through the substrate and potentially staining the 'pallet' or transferring unwanted ink onto the next substrate. Next, the screen and frame are lined with a tape. The type of tape used in for this purpose often depends upon the ink that is to be printed onto the substrate. These aggressive tapes are generally used for UV and water-based inks due to the inks' lower viscosities. The last process in the 'pre-press' is blocking out any unwanted 'pin-holes' in the emulsion. If these holes are left in the emulsion, the ink will continue through and leave unwanted marks. To block out these holes, materials such as tapes, specialty emulsions and 'block-out pens' may be used effectively.
Textile items printed with multi-colour designs often use a wet on wet technique, or colors dried while on the press, while graphic items are allowed to dry between colours that are then printed with another screen and often in a different color after the product is re-aligned on the press.
Most screens are ready for recoating at this stage, but sometimes screens will have to undergo a further step in the reclaiming process called dehazing. This additional step removes haze or "ghost images" left behind in the screen once the emulsion has been removed. Ghost images tend to faintly outline the open areas of previous stencils, hence the name. They are the result of ink residue trapped in the mesh, often in the knuckles of the mesh (the points where threads cross).
While the public thinks of garments in conjunction with screenprinting, the technique is used on tens of thousands of items, including decals, clock and watch faces, balloons, and many other products. The technique has even been adapted for more advanced uses, such as laying down conductors and resistors in multi-layer circuits using thin ceramic layers as the substrate.
The screen is placed atop a substrate. Ink is placed on top of the screen, and a floodbar is used to push the ink through the holes in the mesh. The operator begins with the fill bar at the rear of the screen and behind a reservoir of ink. The operator lifts the screen to prevent contact with the substrate and then using a slight amount of downward force pulls the fill bar to the front of the screen. This effectively fills the mesh openings with ink and moves the ink reservoir to the front of the screen. The operator then uses a squeegee (rubber blade) to move the mesh down to the substrate and pushes the squeegee to the rear of the screen. The ink that is in the mesh opening is pumped or squeezed by capillary action to the substrate in a controlled and prescribed amount, i.e. the wet ink deposit is proportional to the thickness of the mesh and or stencil. As the squeegee moves toward the rear of the screen the tension of the mesh pulls the mesh up away from the substrate (called snap-off) leaving the ink upon the substrate surface.
There are three common types of screenprinting presses. The 'flat-bed', 'cylinder', and the most widely used type, the 'rotary'.
Versatility
Screenprinting is more versatile than traditional printing techniques. The surface does not have to be printed under pressure, unlike etching or lithography, and it does not have to be planar. Different inks can be used to work with a variety of materials, such as textiles, ceramics, wood, paper, glass, metal, and plastic. As a result, screenprinting is used in many different industries, including: Balloons Clothing Decals Medical devices Printed electronics, including circuit board printing Product labels Signs and displays Snowboard graphics Textile fabric Thick film technology
Screen printing press To print multiple copies of the screen design on garments in an efficient manner, amateur and professional printers usually use a screen printing press. Many companies offer simple to sophisticated printing presses. Most of these presses are manual. A few that are industrial-grade-automatic printers require minimal manual labor and increase production significantly.
screen printing applications Survey shows that China Screen Printing Industry and the number of kinds of products sorted by manufacturers as follows:signs and panels, textiles and garments, plastic sheets, advertising materials, printed circuits, light boxes and so on.Emerging field of screen printing to an extraordinary rate, such as building materials, the system card, CD-ROM, security printing and so on. manual cylinder screen printing machine
manual cylindrical screen printing machine for sale Screen Printing in commercial advertising, there will be more market, some large companies, especially electric companies,tobacco companies promote their image in order to attach great importance to the role of advertising. Advertising time and to some extent determine the quality of the company's share of the market. Therefore, all kinds of electrical advertising,packaging and advertising, outdoor advertising, commercial ads to screen printing provides a broad space. In the commercial competition, because the large-scale outdoor advertising a wide field of vision, effective and taken seriously. So, as our screen printing large color outdoor ads along with the development of commercial advertising, the increasing volume showed large, cheap, colorful, save a long period, and fast delivery advantages, more and more cities are planning departments,advertising approved by regulatory agencies, attracting a lot of advertisers.
Screen Printing What is the principle
The main features of screen printing
|
