Quick Details
-
Brand Name:
-
huazheng
-
Model Number:
-
HZ-901S
-
Product name:
-
PRIMARY CURRENT INJECTION TEST SET
-
Power Supply:
-
AC 220V± 10%
-
The current output waveform distortion:
-
≤ 5%
-
Accuracy:
-
± 0.5%
-
Dual protection:
-
overload electronic protection and software protection
-
Working environment:
-
Temperature -10~40
-
Display:
-
primary current, second current and turn ratio
-
Resolution:
-
0.001A
-
Measurement second current range:
-
0~6A
-
MOQ:
-
1
Quick Details
-
Warranty:
-
1 Years
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
huazheng
-
Model Number:
-
HZ-901S
-
Product name:
-
PRIMARY CURRENT INJECTION TEST SET
-
Power Supply:
-
AC 220V± 10%
-
The current output waveform distortion:
-
≤ 5%
-
Accuracy:
-
± 0.5%
-
Dual protection:
-
overload electronic protection and software protection
-
Working environment:
-
Temperature -10~40
-
Display:
-
primary current, second current and turn ratio
-
Resolution:
-
0.001A
-
Measurement second current range:
-
0~6A
-
MOQ:
-
1

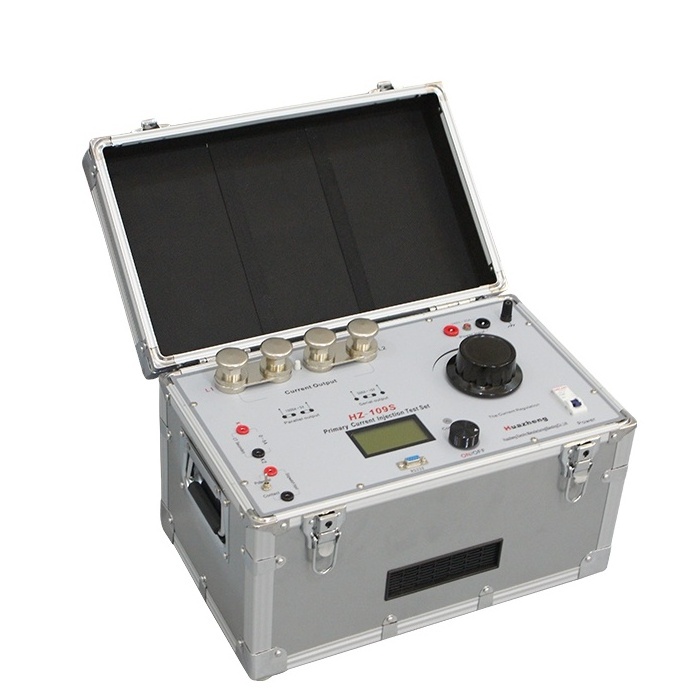

Substation Maintenance And Commissioning Test Equipment Multifunctional Primary Current Injection Test Set
Primary Current Injection Test Set Introduction
primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.
Primary Current Injection Test Set Parameters
1. Power Supply: AC: 220V± 10%· 25A, 50Hz/60Hz
2. Current Output: AC: 1000A· 5V or 500A· 10V, Capacity: 5KVA
3. The current output waveform distortion: ≤ 5%
4. Display, primary current, second current and turn ratio,
Accuracy: ± 0.5%,
Primary current range: 0~1100A, Resolution: 0.1A;
Measurement second current range: 0~6A, Resolution: 0.001A
Current Duration:
1000A range: 1000A 2~3minutes,
500A 3~6minutes
500A range: 500A 2~3minutes,
5. Dual protection (electronic protection and software protection)
6. Working environment: Temperature -10~40, relative humidity≤ 80%
7. Volume: 430mm× 260mm× 260mm
8. Weight: 28Kg
Packing List
|
No. |
Item |
Qty |
|
1 |
Main engine |
1 |
|
2 |
Test line |
2 |
|
3 |
Power line |
1 |
|
4 |
Double core sheathed wire |
2 |
|
5 |
Ground lead |
1 |
|
6 |
Small clip |
5 |
|
7 |
Insert |
1 |
We have our own manufacturing factory,pls see the below certificate,we are the direct supplier.
We are a new enterprise engaged in development,produce & sale a serious of power system products, such as Cable fault tester, transformer test class, lightning arrester test class, comprehensive test class.
From the date of purchase within one year instrument,the warranty time is 12 months.This is the piriod of free repair replacement, lifetime supply of maintenance and technical services. If the instrument has been found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
