STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan
STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan

STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan

FOB Reference Price: Get Latest Price
≥1 Pieces
US $16.88
≥100 Pieces
US $15.88
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Warranty:
1 YEAR
Brand Name:
STARFLO
Model Number:
FLO-2202
Place of Origin:
Fujian, China
Horsepower:
36W
Power Source:
Battery Power
Outlet Size:
3/8" hose barb, customize
Power:
36W
Product name:
12v electric kitchen faucet water pump automatic
Pump Design:
2 Chamber Diaphragm
Max Flow:
3.8LPM(1.0GPM)
Amps:
3.0A max
Duty Cycle:
working intermittent
Valves:
EPDM
Certification:
CE, ISO9001:2008, RoHS
Port dimension:
3/8" Barb
Diaphragm:
Santoprene

Quick Details

Application:
Drinking water treatment, Marine, Water Treatment Solutions
Pressure:
35PSI
Voltage:
12V DC, 12v dc
Warranty:
1 YEAR
Brand Name:
STARFLO
Model Number:
FLO-2202
Place of Origin:
Fujian, China
Horsepower:
36W
Power Source:
Battery Power
Outlet Size:
3/8" hose barb, customize
Power:
36W
Product name:
12v electric kitchen faucet water pump automatic
Pump Design:
2 Chamber Diaphragm
Max Flow:
3.8LPM(1.0GPM)
Amps:
3.0A max
Duty Cycle:
working intermittent
Valves:
EPDM
Certification:
CE, ISO9001:2008, RoHS
Port dimension:
3/8" Barb
Diaphragm:
Santoprene

STARFLO 3.8LPM 35PSI 12v electric kitchen faucet water pump automatic for RV Caravan

Specifications:

Voltage: 12V DC
Flow capacity: 4.3 Litres per minute (1.1 Gallons per minute)
Water pressure: 35 PSI
Hose Outlets: Fixed 10mm (3/8") diam. hose tails
Twin core wire
Current Draw: 2 Amp (max. 3.5 Amp)
Pump dimensions: Length 170mm x Width 100mm x Height 67mm
Faucet dimensions: Base 90mm x 43mm, Height 117mm
Mounting screws for faucet supplied. Mounting screws for pump not supplied
Note: Pump motor is not waterproof and should not be exposed to external water contact
Approvals: CE certified

Product Description:

This product is a 100% brand new, original STARFLO product
Beware of inferior non-genuine products on the market that claim to be just as good

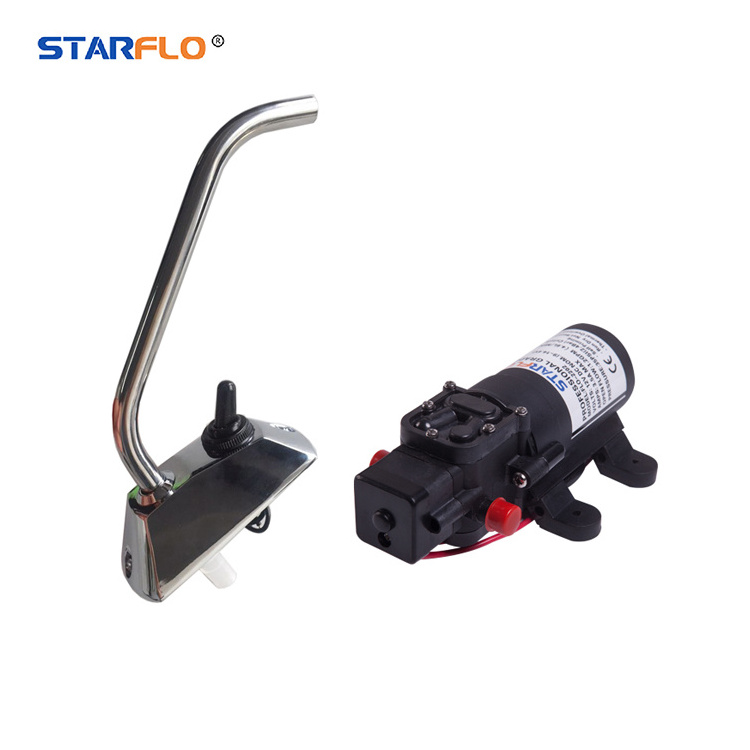

12V self-priming galley pressure pump, complete with faucet
Zinc-alloy metal faucet base and stainless steel swing spout
Built-in 12V toggle switch in on the faucet base - To automatically activate pump
Waterproof rubber boot, to protect on toggle switch from accidental water splashes
4.3 Litres per minute (1.1 GPM) capacity flow, and 35 PSI pressure
Extremely efficient, very low current draw and offer high capacity output
Self priming
Smooth, quiet operation (only 60dB)
Can run dry without damage
Thermal overload and ignition protection
Easy connecting system
Low power draw
Soft rubber mounts
Professional grade pump - Ideal for marine, caravans/RV, and agriculture applications
Built-in pressure switch, to automatically turn on and off as you turn your tap on and off

Application of Galley Water Pump Set:

1. Good for Boating/ Caravan/Motorhome/RV/Marine applications where a single

2. handle tap is required for space saving

PUMP PICTURES:


Model Voltage Flow Rate Pressure Amps
FLO-2201 12V DC 0.5GPM(2.0LPM) 55PSI(3.8 Bar) 1.8A
FLO-2202 12V DC 1.0GPM(3.8LPM) 35PSI(2.4 Bar) 3.0A
FLO-2202-1 12V DC 1.1GPM(4.3LPM) 55PSI(3.8 Bar) 3.5A
FLO-2203 12V DC 0.7GPM(2.6LPM) 70PSI(4.8 Bar) 2.1A
FLO-2203-1 12V DC 0.8GPM(3.1LPM) 70PSI(4.8 Bar) 2.2A
FLO-2202A 12V DC 1.1GPM(4.0LPM) 80PSI(5.5 Bar) 2.6A
FLO-2401 24V DC 0.5GPM(2.0LPM) 55PSI(3.8 Bar) 0.9A
FLO-2402 24V DC 1.0GPM(3.8LPM) 35PSI(2.4 Bar) 1.5A
FLO-2403 24V DC 0.7GPM(2.6LPM) 70PSI(4.8 Bar) 1.0A
FLO-2402A 24V DC 1.1GPM(4.0LPM) 80PSI(5.5 Bar) 1.3A
Inlet Size 3/8" hose barb;thread
Outlet Size 3/8" hose barb;thread
Dimension/pc 18.5*11*6.5cm
Net Weight/pc 0.64kg
Gross Weight/pc 0.72kg
Carton Dimension(50pcs) 56.5*38.5*36.5cm

Q: What's your main products of your company?

A: We specialized in all kinds of water pump(drinking water pump,micro gear pump,high performance diaphragm pump,Marine pump,RV pump, bilge pump )for over 8 years with excellent quality and competitive price.

Q:How can I choose the most suitable pump?

A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.If you don’t know the details for the pump, tell us the usage, must suitable model will be recommended.

Q:What's your product MOQ of it?

A:Our company is pleasure accept all items 1pcs order for testing.If bulk order, pls send inquiry to get more  discount.

Q: What's your payment way?

A: Usually we accept T/T ,Western Union or PayPal.

Q: What's your delivery time?

A. 1.The stock samples can be sent to you within 2-3days by international express after received

2.The batch order can be shipped to you in about 10-15days after order confirmation (by air or by sea)

Q : How long is your pump lifetime?

A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor for your choice, the pump warranty is 12 months.we can supply 1% spare parts for after service.
