Quick Details
-
Model Number:
-
UWBF-768
-
Product name:
-
electric knapsack sprayer battery power
-
Core Components:
-
Engine, Pump, Gearbox, Motor
-
Nozzle:
-
3 Kinds Nozzles
-
Function:
-
backpack fogging machine
-
Use:
-
backpack fogger
-
Application:
-
gasoline knapsack power sprayer
-
KW:
-
power sprayer gun
-
Keywords:
-
4 stroke knapsack power sprayer
Quick Details
-
Sprayer Type:
-
Knapsack
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
USE WELL
-
Model Number:
-
UWBF-768
-
Product name:
-
electric knapsack sprayer battery power
-
Core Components:
-
Engine, Pump, Gearbox, Motor
-
Nozzle:
-
3 Kinds Nozzles
-
Function:
-
backpack fogging machine
-
Use:
-
backpack fogger
-
Application:
-
gasoline knapsack power sprayer
-
KW:
-
power sprayer gun
-
Keywords:
-
4 stroke knapsack power sprayer
Related Products
Products Description
Gaoline motor perperated napnapsack prayer Backpack gasoline mist sprayer Garden sprayer fogger
:
Backpack power sprayer belongs to the high-pressure sprayer series, which is powered by the four-stroke gasoline engine 139F and powered by the high-pressure plunger pump. It is suitable for the long-range spray gun with effective range of 10-12 meters.If higher sprays are required, the nozzle can be extended with a long rod.Three - headed spray poles can be used to spray low crops with aerosolized pesticides or fertilizers.
There are mainly two types backpack fogging spray machine in our company:
1.
High pressure mist fogging spray machine ：
|
Plunger diameter
|
18mm
|
|
plunger stroke
|
8mm
|
|
working pressure
|
1.5-2.4Mpa
|
|
Spray quantity
|
3.3-7L/min
|
|
Engine
|
Single cylinder two-stroke air-cooled type
|
|
gas displacement
|
26cc
|
|
Power
|
0.65kw
|
|
rotary speed
|
3000-8000
|
|
volumn
|
20L
|
|
Fuel volumn
|
0.75L
|
|
Suitable fuel
|
Gasoline above 90#
|
All copper pump head:
high pressure all copper pump head, strong and durable without rust
Backwater switch:
pressure regulating valve, accurate outlet pressure adjustment, clockwise pressure, counterclockwise pressure reduction.
Outlet carburetor:
Fill the tank with oil before starting, and press the bubble to let the oil enter the tank
Spare parts:
1.
High pressure spray rod
: surface electroplating treatment, strong corrosion resistance, not easy to rust, long range, regulating valve can adjust a variety of water way, flat shot about 12 meters, vertical shot up to 6 meters;
2.
Long curved nozzle:
three nozzle, atomizing effect, spray width, suitable for large area of spraying fruit and vegetable fields;
3.
Two curved nozzle:
small surface machine atomization effect, spray area is good control, can be sprayed vertically.

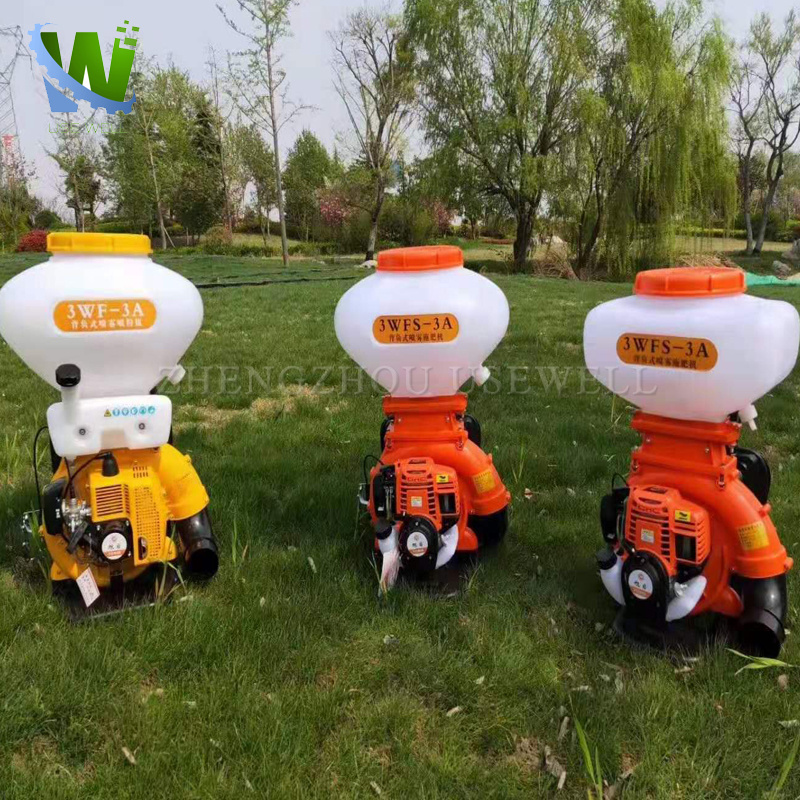

2.
Knapsack gasoline powder and mist spraying machine:
This type
can mist, spray powder, sprinkle particles, spray smoke, ultra-low volume spray, etc.
Two troke sprayer
Four stroke sprayer
|
Two troke sprayer
|
|
Four stroke sprayer
|
|
||
|
Matching power
|
1E40FP-3Z
|
Matching power
|
140F
|
||
|
Rated power(L/min)
|
2.13KW
|
Displacement
|
35cc
|
||
|
Rotational speed
|
7500r/min
|
Rated power
|
0.9/6500KW/R/MIN
|
||
|
Displacement
|
41.5cc
|
Horizontal range
|
≥ 10(m)
|
||
|
Weight
|
11kg
|
Fuel rate
|
disconnect-type
|
||
|
box capacity
|
20L
|
Drug tank volume
|
26L
|
||
|
Overall Dimension(L*W*H)
|
500*410*730mm
|
Carburetor type
|
diaphragm
|
||
|
Qty-20'/ 40'
|
185/470CTNS
|
Weight
|
16KG
|
||
Nozzle structure:
Rotary structure, so that the assembly is more convenient, more tight
Large Hose:
Hose installation can enlarge the Angle range of operation to improve work efficiency
Shock absorption system:
Spring and rubber structure greatly reduces vibration, ensuring comfort and easy operation
Details Images
Warehouse & Packing:
Application:
Powerful function, suitable for a variety of environments: suitable for the prevention and control of crop diseases and insect pests, such as epidemic prevention, sanitation, wheat, corn, cotton, rice, fruit trees, grapes, tobacco, tea, flowers, etc;
It can also be used for vegetable, greenhouse pest control, urban and rural health and epidemic prevention and livestock farms,hotel sanitation, storage sanitation and disinfection.
