Quick Details
-
Model Number:
-
LS200
-
Product name:
-
Glass Thickness Gauge
-
Application:
-
Measure glass thickness
-
Measuring range:
-
Glass thickness 70mm, air interlayer 34mm
-
Accuracy:
-
± 0.5mm
-
Power supply:
-
Standard 2032 button battery
-
Size:
-
160mm * 55mm * 25mm (L*W*H)
-
Weight:
-
250g
-
MOQ:
-
1 piece
-
Package:
-
Paper box
-
Dimension:
-
210mm * 130mm * 60mm (L*W*H)
-
Certification:
-
SMQ Inspection National Hi-tech Metrology Station
Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Linshang
-
Model Number:
-
LS200
-
Product name:
-
Glass Thickness Gauge
-
Application:
-
Measure glass thickness
-
Measuring range:
-
Glass thickness 70mm, air interlayer 34mm
-
Accuracy:
-
± 0.5mm
-
Power supply:
-
Standard 2032 button battery
-
Size:
-
160mm * 55mm * 25mm (L*W*H)
-
Weight:
-
250g
-
MOQ:
-
1 piece
-
Package:
-
Paper box
-
Dimension:
-
210mm * 130mm * 60mm (L*W*H)
-
Certification:
-
SMQ Inspection National Hi-tech Metrology Station
Overview

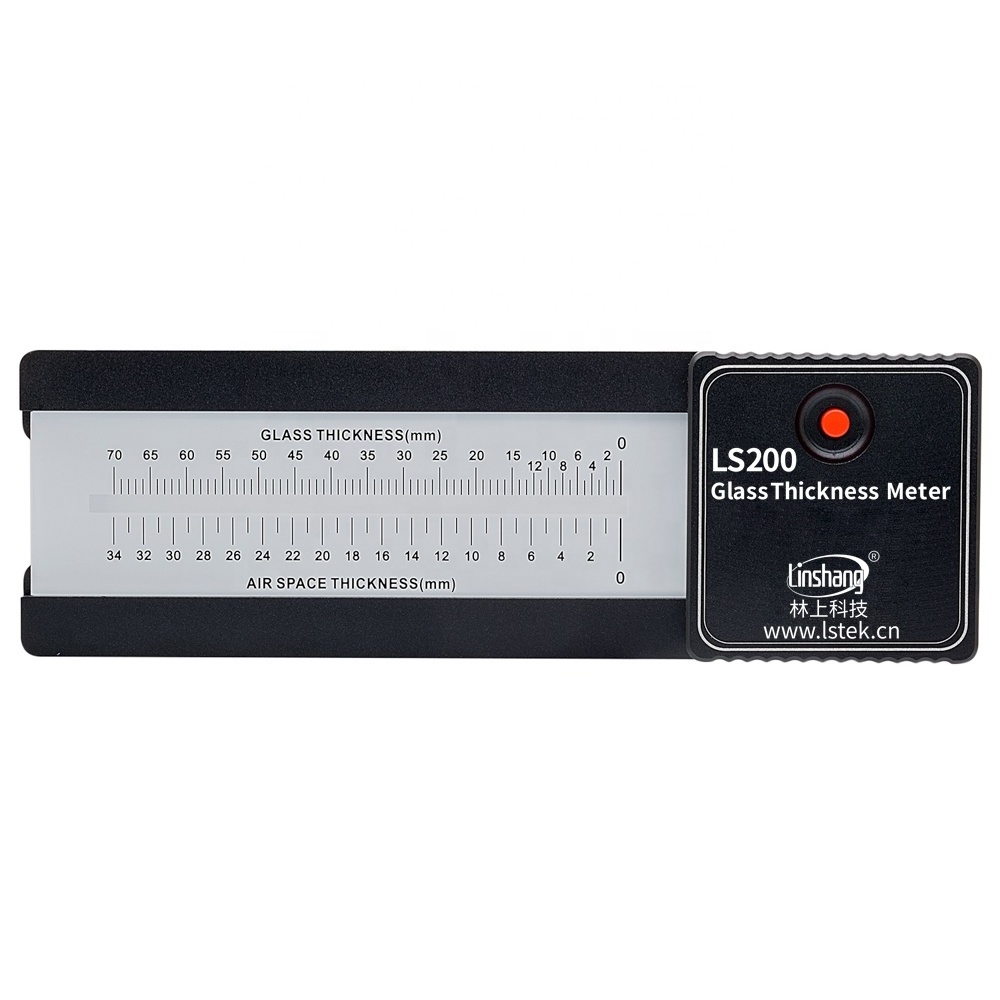

LS200 Glass Thickness Meter
Linshang LS200 glass thickness meter can be used for thickness measurement of single-layer glass, insulating glass and cylindrical glass bottles. It is especially suitable for measurement occasions where ordinary scales or calipers cannot or are not easy to operate, such as measuring the wall thickness of glass bottles and the thickness of laminated glass windows. For the measurement of the insulating glass thickness, the thickness of each glass layer and the intermediate air layer can be measured simultaneously. The glass thickness meter is suitable for the glass thickness measurement in quality inspection, supervision, teaching, production, sales, engineering construction and other occasions.
Features
1. The LS200 has simple operation and fast measurement. The instrument is light and portable. It uses the laser reflection principle, the thickness of glass and air layer can be measured on single side of the glass.
2. Glass thickness and air layer thickness can be tested simultaneously. The glass thickness can be measured up to 70mm and the air interlayer can be measured up to 34mm.
3. Measure insulated glass, which can measure air interlayer thickness and glass thickness at the same time. The following figure is an example. The calculation method of the glass and air layer thickness is as follows:
C-D = the first layer of glass thickness (5-0 = 5mm)
A-B = the second layer of glass thickness (30-25 = 5mm)
B-C = Air layer thickness (12-2.5 = 9.5mm)
Note: Please read at an angle of 45 degree under strong light
4. The glass thickness measuring tool is suitable for the thickness measurement of single-layer glass, double glazing, triple glazing and other types of glass.
Qualification and Standards
Paramenters
|
No.
|
Description
|
Quantity
|
Unit
|
|
1
|
LS200 Glass Thickness Meter
|
1
|
pcs
|
|
2
|
Cloth packing bag
|
1
|
pcs
|
|
3
|
User Manual
|
1
|
pcs
|
|
4
|
Certificate / warranty card
|
1
|
pcs
|
|
5
|
Packing box dimension 21*13*6 cm (L*W*H)
|
1
|
pcs
|
