Quick Details
-
Brand Name:
-
Jvler
-
Model Number:
-
RL-20XW600
-
Material:
-
Aluminum Alloy
-
Application:
-
River/Lake/Shoal
-
Range:
-
30m
-
Process Temperature:
-
-40~80℃
-
Process Pressure:
-
-1~5BAR
-
Connection:
-
Bracket
-
Accuracy:
-
±3mm
-
Power Supply:
-
3.6-5 VDC
-
Output:
-
RS485
-
Blind:
-
5mm
-
Structural Style:
-
Lens Antenna
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Jvler
-
Model Number:
-
RL-20XW600
-
Material:
-
Aluminum Alloy
-
Application:
-
River/Lake/Shoal
-
Range:
-
30m
-
Process Temperature:
-
-40~80℃
-
Process Pressure:
-
-1~5BAR
-
Connection:
-
Bracket
-
Accuracy:
-
±3mm
-
Power Supply:
-
3.6-5 VDC
-
Output:
-
RS485
-
Blind:
-
5mm
-
Structural Style:
-
Lens Antenna

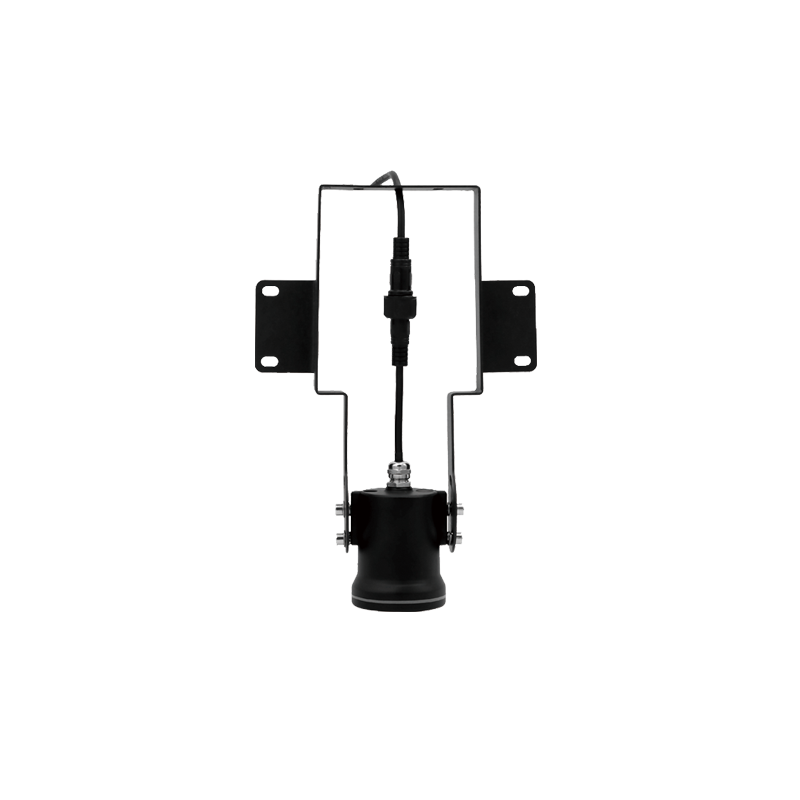

RL-20XW600 CE ISO9001 approved 80GHz bracket connection river lake shoal level measurement non-contact radar level meter
Working Principle
The working principle of the radar level meter is that the measuring instrument sends out short radar pulses toward the measured product via the antenna system. The product surface reflects the signal waves, which are then received back by the antenna system. The instrument calculates the level from the running time of the radar pulses and the entered tank height.The advantage of the non-contact radar technology is characterized by a particularly high measurement accuracy. The measurement is affected neither by fluctuating product properties nor by changing process conditions such as temperature, pressure or intense dust generation.
Specification
|
Application
|
River/Lakes/Shoal
|
|
Measuring Range
|
30m
|
|
Connection
|
Bracket
|
|
Process Temperature
|
-40~80℃
|
|
Process Pressure
|
-1~1 Bar
|
|
Power Supply
|
3.6-5 VDC
|
|
Output Signal
|
RS485
|
|
Accuracy
|
±3mm
|
|
Blind
|
5mm
|
