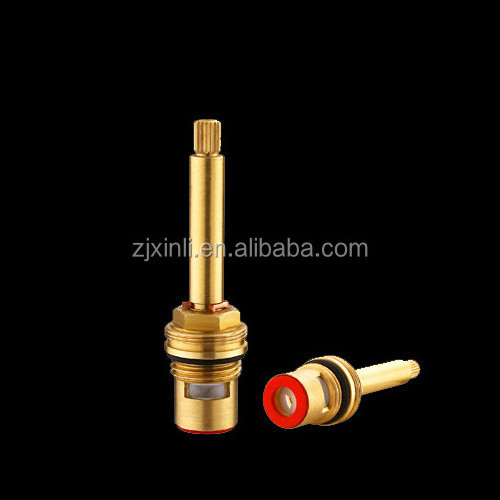

Brass Tap Cartridge, G1/2 Fast Open Cartridge with Long Lever, X3141

FOB Reference Price: Get Latest Price

≥1000 Pieces

US $0.01

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: X3141

Quick Details

Material:: Brass

Place of Origin:: Zhejiang, China

Brand Name:: XINLI

Model Number:: X3141

Product Description

Item No.:	X3141
Color:	Yellow
Installation Size:	G½"
Max. Turning Angle:	90°c
Max. Temperature:	90°c
Burst Test:	Static Pressure at 35Mpa, No Deformation
Ceramic Disc:	(1)Hardness: 1100Hv5 (2)Flatness: ≤ 0.6 µm (3)Roughness: ≤ Ra0.25 µm (4) Porosity: 60-80%
Life Time:	500,000 open and close cycles
Logo:	Xinli Brand, OEM is available
Guarantee:	5 Years

AIR PRESSURE

Static Pressure		Dynamic Pressure
High Pressure	Low Pressure	Dynamic Pressure
0.68 Mpa	0.02 Mpa	0.28Mpa

PRESSURE & FLOW RATE

Pressure

Mpa

0.05

0.10

0.15

0.20

0.25

0.30

0.35

0.40

0.45

0.50

Flow Rate

L / Min

9.9

13.5

17.0

19.7

22.3

24.8

27.0

28.5

30.8

32.3

ACCESSORIES LIST

No.	Description	Material
1	Body	HPB59-3
2	O Ring	EPDM
3	Lubricating O Washer	POM
4	Lever	HPB59-3
5	Garter Spring	QSN6.5-0.1
6	O Ring	EPDM
7	Holder	POM
8	Moving Dise	AL ₂ O ₃ ≥96%
9	Fixed Dise	AL ₂ O ₃ ≥96%
10	Sealing Gasket	Silicone
11	Base	HPB59-3
12	Sealing Gasket	Silicone

PARAMETER

ASSEMBLY PARTS
