5.5 meters, 6.5 meters, 7.6 meters length
Grapple jaw opening from 700mm to 2100mm
Loading weight 200kg-3500kg
- Product Details
- {{item.text}}
Quick Details
-

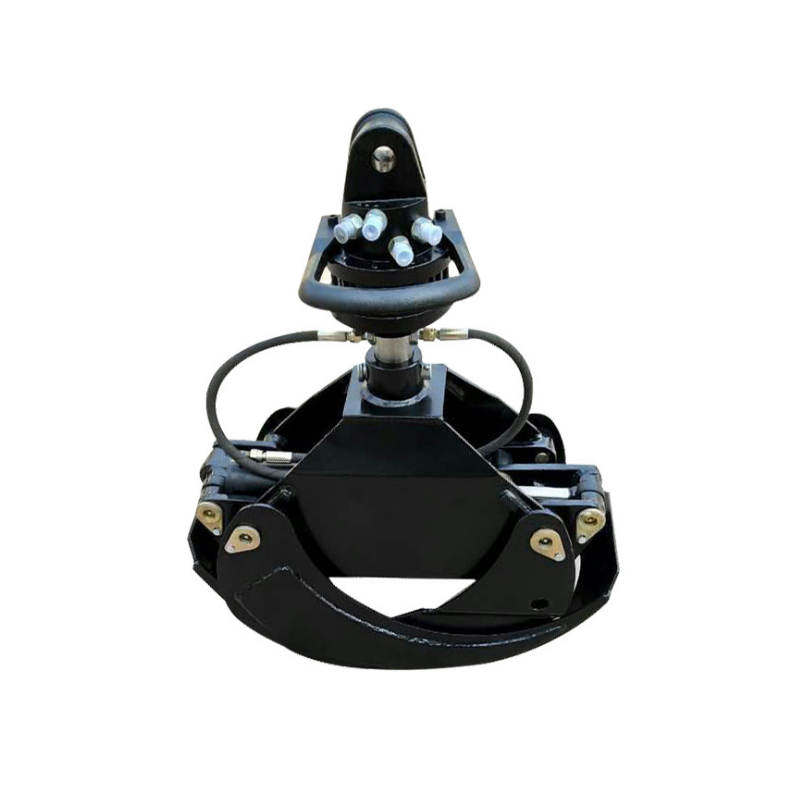

Product name:
-
hydraulic rotator log grapple
-
rotation angle:
-
unlimited
-
Max rotation pressure:
-
250Bar
-
Max working pressure grapple closed:
-
300 Bar
-
Weight (rotator):
-
10kg
-
Connections:
-
G1/4"
-
Max oil flow:
-
10lpm
-
Torque:
-
250 Bar
-
Grapple jaw opening:
-
1.6meter
-
Material:
-
NM400
Quick Details
-
Marketing Type:
-
Hot Product 2022
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOMIE/ OEM
-
Product name:
-
hydraulic rotator log grapple
-
rotation angle:
-
unlimited
-
Max rotation pressure:
-
250Bar
-
Max working pressure grapple closed:
-
300 Bar
-
Weight (rotator):
-
10kg
-
Connections:
-
G1/4"
-
Max oil flow:
-
10lpm
-
Torque:
-
250 Bar
-
Grapple jaw opening:
-
1.6meter
-
Material:
-
NM400
Available crane 4.2 meters, 4.7 meters
Flange rotator grapple
Shaft rotator grapple
Install with crane
HOMIE - Real Producer of Hydraulic Rotator Log Grapple
Rotator - Shaft type and Flange type with model( 1 Ton, 3 Ton, 5 Ton, 6 Ton, 10 Ton and etc)
The rotator grapple widely used for forestry machine- logger loader, timber trailer, timber crane, tractor crane and excavators.
Check our bellowing products information to find your requested grapple.
Grapple specification for reference:
Minimum grapple with loading 500kg
Minimum grapple jaw opening- 1100mm
Maximum grapple with loading 4500kg
Maximum grapple jaw opening- 2100mm
Shaft rotator -1 Ton 3 Ton
Flange rotator
Flange rotator 3 Ton
Shaft rotator grapple Flange rotator loader grapple Combination grapple
|
No
|
Item
|
Data(1Ton)
|
3Ton
|
5Ton
|
6Ton
|
|
1
|
Rotation angle
|
unlimited
|
unlimited
|
unlimited
|
unlimited
|
|
2
|
Max rotation pressure
|
250 bar
|
250 bar
|
250 bar
|
250 bar
|
|
3
|
Max working pressure(closed)
|
300 bar
|
300 bar
|
300 bar
|
300 bar
|
|
4
|
Capacity
|
193cm3
|
330cm3
|
465cm3
|
670cm3
|
|
5
|
Connections
|
G1/4"
|
G3/8"
|
G3/8"
|
G 1/2"
|
|
6
|
Max axial load(static)
|
10kN
|
30kN
|
55kN
|
60kN
|
|
7
|
Max axial load(dynamic)
|
5kN
|
15kN
|
25kN
|
30kN
|
|
8
|
Max oil flow
|
10lpm
|
20lpm
|
20lpm
|
20lpm
|
|
9
|
Weight
|
10.2kg
|
16kg
|
28kg
|
36kg
|
Application
The hydraulic rotator widely used in forestry log grapples
The hydraulic rotator install on a loader log grapple
Rotator grapple for Bell Logger Loader
Combination rotator grapple for Pulp Wood
Rotator Log Grapple for Timber Trailer Crane
