Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
manufacturer
-
Product name:
-
BLE 5.0 Gateway
-
Range:
-
Max 100m
-
Network modes:
-
3dBi flexible FPC antenna
-
Frequency band:
-
2.400-2.484GHz
-
Number of selectable Sub Channels:
-
14 channels
-
Channel Bandwidth:
-
20/40MHz
-
Wireless:
-
IEEE 802.11b/g/n(single stream)
-
Operation temperature:
-
-10℃ to 50℃
-
Humidity:
-
Max 95%, Non condensing, relative humidity
-
Support:
-
BLE/Wifi
Quick Details
-
Chipset:
-
nRF52
-
Application:
-
indoor navagation , location , personal tracking
-
Model Number:
-
G1
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Minew
-
Supplier Type:
-
manufacturer
-
Product name:
-
BLE 5.0 Gateway
-
Range:
-
Max 100m
-
Network modes:
-
3dBi flexible FPC antenna
-
Frequency band:
-
2.400-2.484GHz
-
Number of selectable Sub Channels:
-
14 channels
-
Channel Bandwidth:
-
20/40MHz
-
Wireless:
-
IEEE 802.11b/g/n(single stream)
-
Operation temperature:
-
-10℃ to 50℃
-
Humidity:
-
Max 95%, Non condensing, relative humidity
-
Support:
-
BLE/Wifi

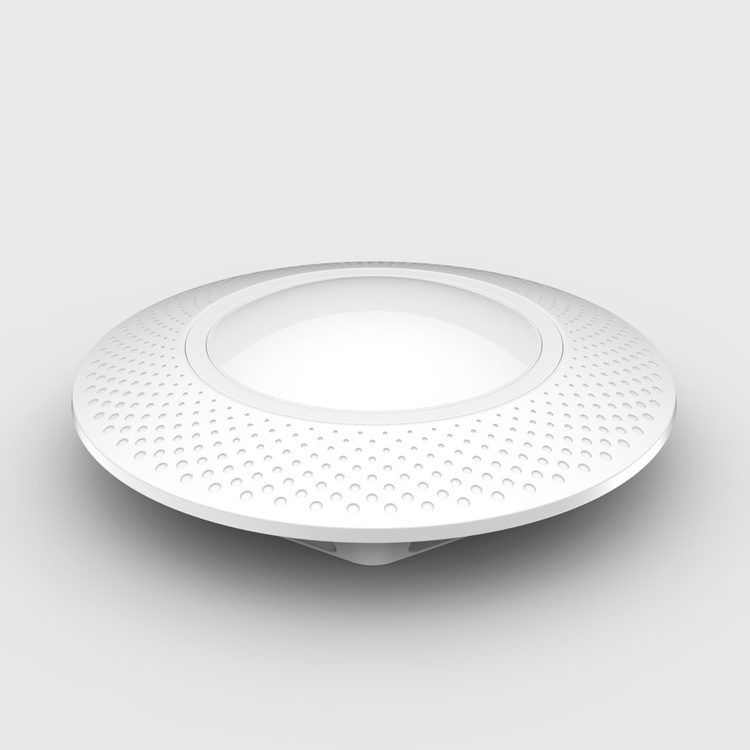

Bluetooth 5.0 iBeacon Eddystone Reader/ BLE & WiFi Gateway
GI is a bluetooth 5.0 low energy 5.0 low energy (BLE) to Wi-Fi connectivity gateway without the uses of smartphones or apps. The G1 Gateway collects the data from ibeacon, Eddystone, BLE sensor and other BLE devices, and then sends to the local TCP server or remote cloud server by HTTP/ MQTT/ mbed ( ARM) protocol over Wi-Fi/ Ethernet Cellular. User is easy configure the G1 gateway via a very simple web UI.
Application of G1 BLE &Wifi gateway:
G1 Gateway can manage the beacon, receive Bluetooth signal and send to cloud server.
iBeacon / Eddystone / other BLE tag Receiver
BLE Sensor reader / receiver
Asset tracking
Access control management
Advertisement promotion
Indoor location and position
Industrial automation
S1: Bluetooth temperature & humidity sensor
E2: 300 TO 500 meters MaxBeacon
E6:Bluetooth ambient light sensor
i3:Waterproof iBeacon & Eddystone
i7: Bluetooth accelerometer sensor
C7: Credit card beacon with RFID/NFC
G1: Bluetooth & WiFi gateway
Electronic Parameters:
|
General Information
|
|
|
|
|||
|
Color
|
|
White
|
|
|||
|
Size
|
|
150*150*36
|
|
|||
|
Battery (inside gateway)
|
|
3000mAh, rechargeable( coming soon )
|
|
|||
|
Net weight
|
|
155g( without battery)
|
|
|||
|
Accessory
|
|
1* usb cable, mental fixing and screws
|
|
|||
|
Absolute Maximum Rating
|
|
|
|
|||
|
Power Supply
|
|
Max. 5.5 Volts, DC
|
|
|||
|
Storage temperature
|
|
-40 ℃ to 85 ℃
|
|
|||
|
Voltage ripple
|
|
+/- 2%
|
|
|||
Products details:
E8 Accelerometer sensor
E7 Waterproof Beacon
D15N Beacon
Founded in 2007,Minew has been engaged in IoT (Internet of Things) field for years and is keeping updated to the market demand all along.We are an ISO9001:2008 certified manufacturer focusing on RF / Wireless products such as 2.4GHz BLE 4.0 related products.We focus on designing and manufacturing many different high quality and low cost iBeacons hardware , offering one-stop services include:
1. Schematic design;
2. Mold design;
3. PCB layout;
4. Firmware design;
5. Production and assembling.
Warmly welcome the OEM and ODM projects.
Exhibition and Partners
Bluetooth 5.0 iBeacon Eddystone Reader/ BLE & WiFi Gateway
1.According to our customers requirements, we are willing to handle shipment for our customers, and the shipment fee is needed in this case.Fast Express like DHL,UPS, TNT, FedEx are all available here.
2. If our customers have their own Express account, freight forwarder in China,we are happy to contact their Express people or freight forwarder to pick up products from our factory.
Do you provide the technical support to the developers?
Re: SURE. The following technical data and documents will be provided to developers.
1. SDK 2. Firmwork 3. Demo APP 4. Configuration APP 5. Instructions
Can I change the password?
Re: Yes, you can use configuration APP to change password by yourself.
Do you have SDK or the source code?
Re: Yes, we will provide you after sample was arrived.
Does MiniBeacon comply with iBeacon standard?
Re: Yes,MiniBeacon has been licensed by ibeacon stamdard program with contact No.iBC-14-00582.
