Quick Details
-
Frequency:
-
125KHz
-
Verification Method:
-
Card / Password/ Card +Password
-
Storage RFID capacity:
-
1000 users (can be upgraded to 4000 users )
-
PIN length:
-
3-6 digits
-
Material:
-
ABS
-
Size:
-
117*75*20 mm
-
Operating humidity:
-
20% - 90%
-
Operating temperature:
-
0 - 60°C
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Techcrepower
-
Name:
-
Touch Screen Keypad Access Card Reader
-
Frequency:
-
125KHz
-
Verification Method:
-
Card / Password/ Card +Password
-
Storage RFID capacity:
-
1000 users (can be upgraded to 4000 users )
-
PIN length:
-
3-6 digits
-
Material:
-
ABS
-
Size:
-
117*75*20 mm
-
Operating humidity:
-
20% - 90%
-
Operating temperature:
-
0 - 60°C

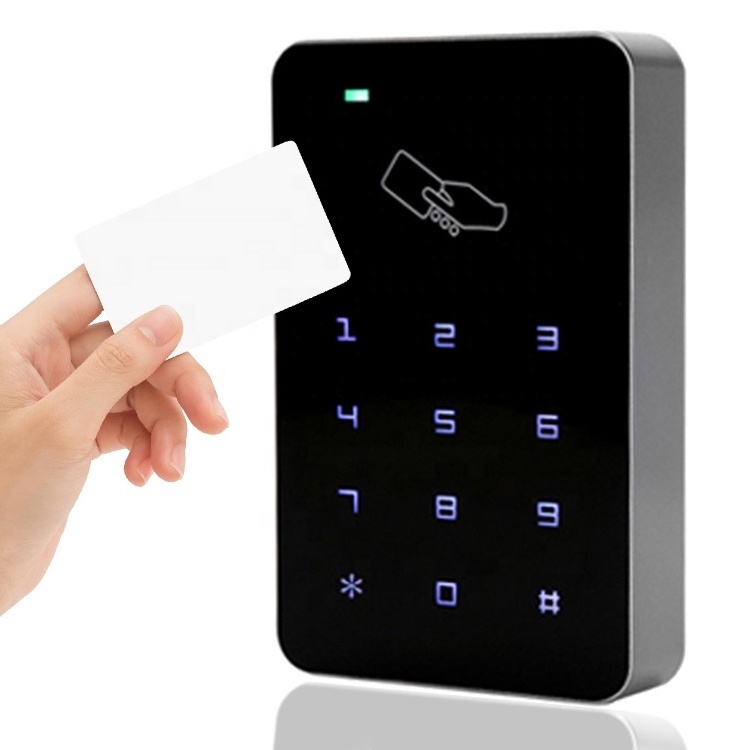

RF23 is a keypad and proximity standalone access control . Both methods of input can be used separately or in combination for extra security.
Its slim profile, modern aesthetics and durable construction make it fantastic and secure on any wall especially with its anti-tamper feature.
All programming can be done at the reader itself making installations quick and easy without the need for a PC. The device can be used as a standalone access control system simply by adding a 12V power supply and door release or it can be used to upgrade an existing system.
Specification:
| Name | Touch Screen Keypad Access Card Reader |
| Frequency | 125 kHz |
| PIN length | 3-6 digits |
| Material | ABS |
| Size | 117*75*20 mm |
| Operating temperature | 0 - 60°C |
| Operating humidity | 20% - 90% |
| Verification Method | Card / Password/ Card +Password |
| Storage RFID capacity | 1000 users (can be upgraded to 4000 users ) |
Factory default setting:
| Programming Password | 123456 |
| Open Mode | Card or Access PIN |
| Output signal time | 5secs |
| Backlight | Auto |
| Security function | Off |
Features:
- Two sets of signals are outputed independently , a set of relay signals and a set of PUSH signals
- Can be connected with the exit button and doorbell
- Full programming from the keypad ,easy to install and program
- User capacity: 1000 users(can be upgraded to 4000 users )
- Supports three way to access : Card, PIN, Card + PIN
- Can be used as a standalone access controller
- Wiegand 26 input for connection to external reader
- Wiegand 26 output for connection to a controller
- User-friendly and adaptable interface
- Backlight keys
- Easy of use to add and remove access
- Very low power consumption (30mA)
- Lock output current short circuit protection
- Built in buzzer
- Red and Green LEDS display the working status
- Installation, training, and ongoing maintenance and support
