Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Ceyetec
-
Model Number:
-
CEY-PB-0003
-
Dimension:
-
16MM
-
Specification:
-
2A 250VAC
-
Operating temperature:
-
-35℃ to +85℃
-
Voltage:
-
1500AVC, 1Minute
-
Waterproofing class:
-
1P67
-
Contact resistance:
-
35mΩ MAX
-
Insulation resistance:
-
1000mΩ min(500VDC)
-
Electrical life:
-
≥200000 cycles
-
Mechanical life:
-
≥1000000 cycles
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP67
-
Max. Current:
-
3A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Ceyetec
-
Model Number:
-
CEY-PB-0003
-
Dimension:
-
16MM
-
Specification:
-
2A 250VAC
-
Operating temperature:
-
-35℃ to +85℃
-
Voltage:
-
1500AVC, 1Minute
-
Waterproofing class:
-
1P67
-
Contact resistance:
-
35mΩ MAX
-
Insulation resistance:
-
1000mΩ min(500VDC)
-
Electrical life:
-
≥200000 cycles
-
Mechanical life:
-
≥1000000 cycles
-
Certification:
-
CE
Product Description
Definition
Pushbutton Switches operate via a pushing or pulling action that moves the operating part in the direction of the force required to open or close the contacts.
The operating part is generally equipped with an incandescent lamp or LED to provide illumination and status indication.
Features
Status Indication:
By adding illumination and status indication to the switch, the user can get visual feedback on the operation input they make.
Rich Product Variations:
Pushbutton Switches are used in a wide variety of applications from miniature devices to large-scale equipment, and therefore come in a rich selection of sizes, specifications and functions.
Specification
|

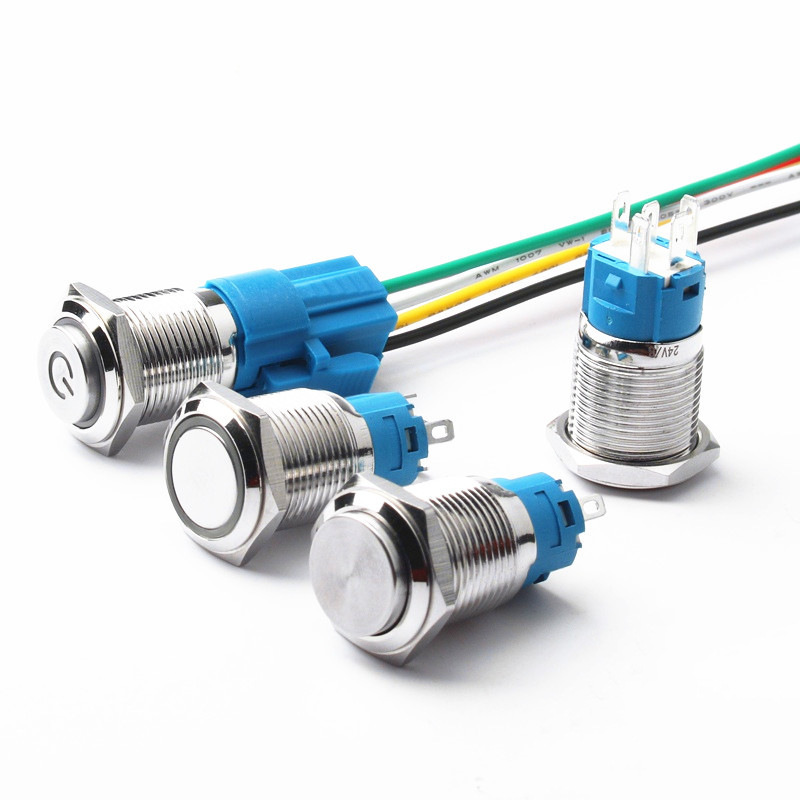

Push Button Switch
|
|
|
|
Dimension
|
16MM
|
|
|
Specification
|
2A 250VAC
|
|
|
Operating temperature
|
-35℃ to +85℃
|
|
|
Voltage
|
1500AVC, 1Minute
|
|
|
Waterproofing class
|
1P67
|
|
|
Contact resistance
|
35mΩ MAX
|
|
|
Insulation resistance
|
1000mΩ min(500VDC)
|
|
|
Electrical life
|
≥200000 cycles
|
|
|
Mechanical life
|
≥1000000 cycles
|
|
Related Products
16mm Button Switch
19mm Button Switch
12mm Button Switch
16mm Button Switch
19mm Button Switch With LED
16mm Button Switch
12mm Big Head Round Ball Button
10mm Button Switch
12mm Big Head Round Ball Button
If need any model, pls contact me freely
Email: helen@ceyetec.com
Phone: +86 15927192638
