Quick Details
-
Voltage:
-
as your request
-
Dimension(L*W*H):
-
depends on the model size
-
Weight (KG):
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
1200kg
-
Max. drill diameter:
-
35mm
-
Numbers of Spindle:
-
21*3
-
Certification:
-
ISO CE
Quick Details
-
Motor Type:
-
national standard
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZD
-
Voltage:
-
as your request
-
Dimension(L*W*H):
-
depends on the model size
-
Weight (KG):
-
1200 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Weight:
-
1200kg
-
Max. drill diameter:
-
35mm
-
Numbers of Spindle:
-
21*3
-
Certification:
-
ISO CE
Multiple Spindle Woodworking Drilling Machine
Wood Machinery Drilling Machine
1. Introduction
(1)Multiple rows hole drilling machines are combined single horizontal and double sets of vertical boring units to upgrade working efficiency and reduce your production costs.
(2)The vertical boring unit is set 90° for maximum boring position flexibility.
(3)The mechanical switch provides convenient and accurate adjustment for boring depth and position.
(4)Additional, optional automatic feeding equipment is available for upgrading working efficiency.
(5)The speed stabilizer guarantees smooth feeding against the workpiece.
(6) Quick chucks provide convenient fitting and dismantling for boring bits. This is a combined single horizontal and double vertical, high efficiency multiple head rows drilling machine.
(7)Furthermore, the air-operated stoppers are convenient for repeat boring.
2. Technical Specifications
| Maximum diameter of holes | 35mm |
| Depth of drilled holes | 0-60mm |
| The number of spindles | 21*3 |
| Centerdistance between spindles | 32mm |
| Rotation of Spindle | 2840r/min |
| Total Motor Power | 1.5kw*3 |
| Packing Size | 2700*1200*1600mm |
| Suitable Voltage | ~380v |
| Air Pressure | 0.5-0.8Mpa |
| Weight of the whole machine | 1200kg |
3. Characteristics
(1) Suitable for all kinds of density boards, particleboard, based panels,PVC panels, organic glass plates and solid wood boards such as the drill
(2) High-strength, reinforced the structure of the whole body of cast iron base. Vertical tank, horizontal seat, left and right panels, motors and other key parts of the base is also used in all cast iron
(3) The use of high-precision guide rail and the slider staf Taiwan, Hongkong production drill row,omron appliances. LG brand of PLC microcomputer control system, making the equipment more stable, easier to operate.
(4) All models can be equipped with electronic digital devices in Italy.
(5) P2 horizontal drilling part is flip structure, can be used for vertical drilling, horizontal drilling can also be.

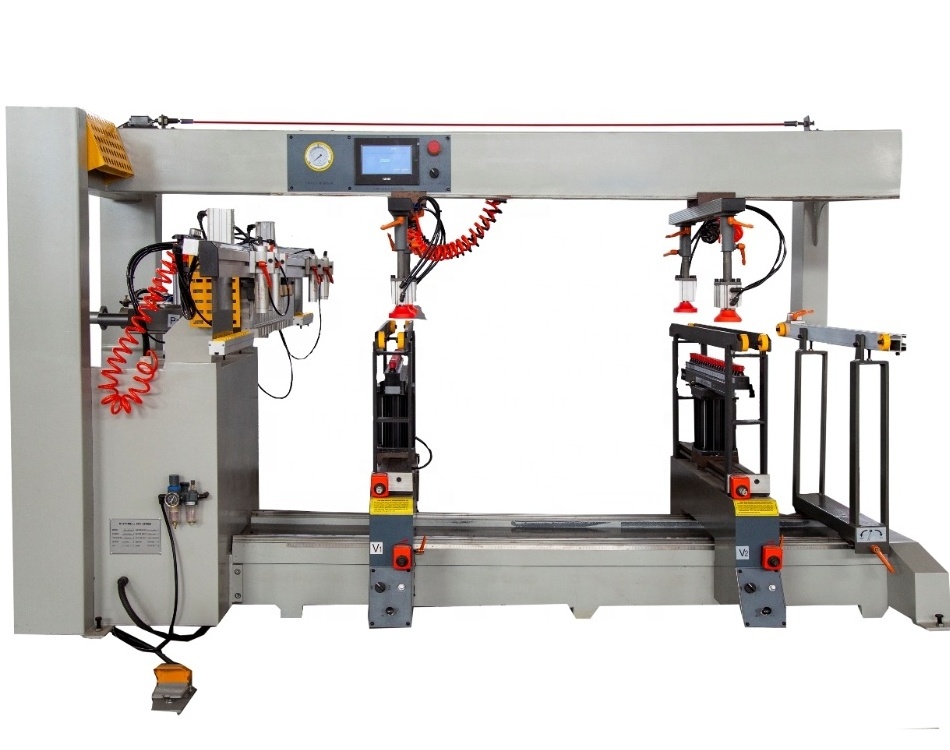

4. Photos
