Quick Details
-
Place of Origin:
-
Anhui, China
-
Temperature Range:
-
F: -20 ~ -40 ℃; R: 2 ~ 8 °C
-
Capacity:
-
R: 273L; F: 255L
-
Controller:
-
Microprocessor
-
Cooling Type:
-
R: Forced-air Cooling; F: Direct Cooling
-
Compressor:
-
Chinese Brand * 2
-
Refrigerant:
-
R: R290 / 28g; F: R290 / 56g
-
Door:
-
R: Foamed Glass Door / 1; F:Foamed Solid Door / 1
-
Defrost:
-
R: Auto; F: Manual
-
Backup Battery:
-
8 hours
-
External Size(W*D*H) mm:
-
900*818*1870
Quick Details
-
Warranty:
-
1 Year
-
Brand Name:
-
Malinmaus
-
Model Number:
-
MRF-40-528
-
Place of Origin:
-
Anhui, China
-
Temperature Range:
-
F: -20 ~ -40 ℃; R: 2 ~ 8 °C
-
Capacity:
-
R: 273L; F: 255L
-
Controller:
-
Microprocessor
-
Cooling Type:
-
R: Forced-air Cooling; F: Direct Cooling
-
Compressor:
-
Chinese Brand * 2
-
Refrigerant:
-
R: R290 / 28g; F: R290 / 56g
-
Door:
-
R: Foamed Glass Door / 1; F:Foamed Solid Door / 1
-
Defrost:
-
R: Auto; F: Manual
-
Backup Battery:
-
8 hours
-
External Size(W*D*H) mm:
-
900*818*1870
Product Description

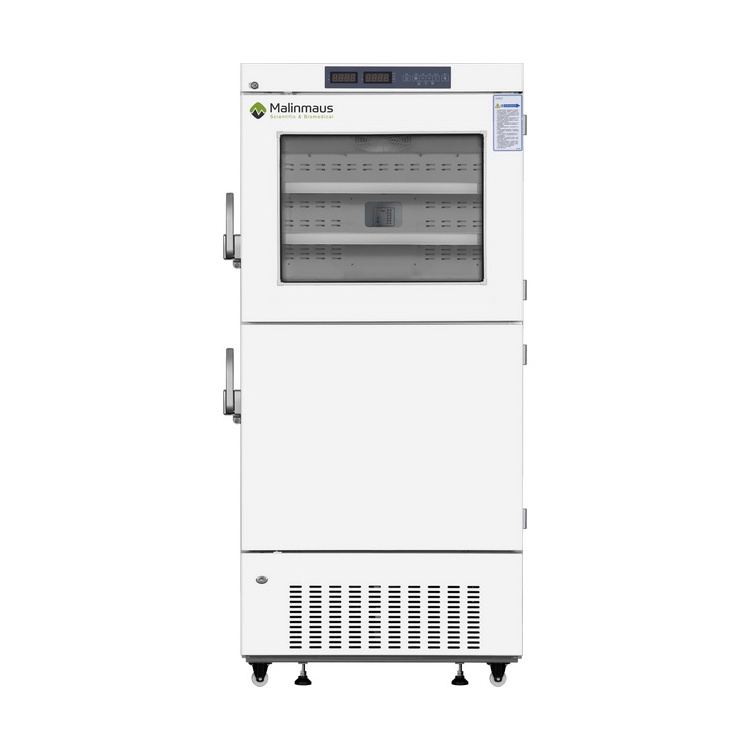

+2~8°C/-40°C
Biomedical Combined
Refrigerator & Freezer
Biomedical Combined
Refrigerator & Freezer
★ Precise temperature control, keep inside temperature stability.
★
For medical, laboratory, scientific and industrial use.
★ Standard power failure alarm, 8
hours backup battery.
Application
Malinmaus Combined Refrigerator & Freezer are specially designed to store medicines, vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and electronic and medical fields.
Features
■ Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C
■ Double outside doors and two independent chambers.
■ HC green refrigerant is energy-saving and environmentally friendly.
■ Wide available voltage range: 187V~242V.
Security
■ Safety door lock and controller password to prevent unauthorized access.
■ Built-in backup battery to display temperature and alarms when power failure or system error.
■ Visual and audible alarm system.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: The cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors fail.
Humanized design
■ Adjustable shelves (Refrigerator) and drawers (Freezer) for easy storage.
■ Auto on/off LED light with manual switch on the control panel (Only for refrigerator).
■ Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
■ Casters and adjustable feet for easy moving and fixation.
Malinmaus Combined Refrigerator & Freezer are specially designed to store medicines, vaccines, blood plasma, reagents, and many other biological materials which are widely used in research institutions, clinics, and electronic and medical fields.
Features
■ Microprocessor control, ensure good inner temperature uniformity, accuracy is 0.1°C
■ Double outside doors and two independent chambers.
■ HC green refrigerant is energy-saving and environmentally friendly.
■ Wide available voltage range: 187V~242V.
Security
■ Safety door lock and controller password to prevent unauthorized access.
■ Built-in backup battery to display temperature and alarms when power failure or system error.
■ Visual and audible alarm system.
■ Power failure protection: turn-on delay of the cooling system after power failure.
■ Controller error protection: The cooling system will remember the normal working cycle and keep working depending on this memory when the controller or two sensors fail.
Humanized design
■ Adjustable shelves (Refrigerator) and drawers (Freezer) for easy storage.
■ Auto on/off LED light with manual switch on the control panel (Only for refrigerator).
■ Auto on/off cooling fan to prevent cold air from leaking out when the door is opening.
■ Casters and adjustable feet for easy moving and fixation.
Specification
|
Model NO.
|
MRF-
40
-
528
|
|
|
Main Specifications
|
|
|
|
Temperature Range
|
F: -20 ~ -40 ℃; R: 2 ~ 8 °C
|
|
|
Ambient Temperature
|
10~32℃
|
|
|
Capacity (L/Cu. Ft.)
|
R: 273 / 9.64; F: 255 / 9
|
|
|
Interior Dimensions (W×D×H) mm
|
R: 765×640×635; F: 651×636×635
|
|
|
Exterior Dimensions (W×D×H) mm
|
900×818×1870
|
|
|
Weight
|
174 kgs
|
|
|
Noise
|
50 dB
|
|
|
Control and Power
|
|
|
|
Controller
|
Microprocessor
|
|
|
Display
|
Digital
|
|
|
Sensor
|
NTC
|
|
|
Voltage and Frequency
|
187~242V, 50/60Hz
|
|
|
Power
|
527 W
|
|
|
Electric Current
|
3.02 A
|
|
|
Power Consumption (kWh/24h)
|
7.06
|
|
|
Audible and Visual Alarms
|
|
|
|
High / Low Temp. Alarm
|
Yes
|
|
|
Power Failure Alarm
|
Yes, 8h
|
|
|
Sensor Error Alarm
|
Yes
|
|
|
Controller Error Alarm
|
Yes
|
|
|
Door Ajar Alarm
|
Yes
|
|
|
Abnormal Ambient Temp. Alarm
|
Yes
|
|
|
Refrigeration
|
|
|
|
Refrigeration Type
|
R: Forced-air Cooling; F: Direct Cooling
|
|
|
Defrost
|
R: Auto; F: Manual
|
|
|
Compressor (Brand/pcs)
|
Chinese Brand / 2
|
|
|
Refrigerant / Weight (kgs)
|
R: R290 / 28g; F: R290 / 56g
|
|
|
Cabinet
|
|
|
|
Door (pcs)
|
R: Foamed Glass Door / 1; F：Foamed Solid Door / 1
|
|
|
Fixed / Adjustable Shelf (pcs)
|
3 / 2
|
|
|
Drawer (pcs)
|
9
|
|
|
Interior Cabinet Material
|
Coated Steel
|
|
|
Exterior Cabinet Material
|
Coated Steel
|
|
|
Insulation Material
|
R: PURF (δ38mm); F: PURF (δ95mm)
|
|
|
Door Lock
|
Yes
|
|
|
LED Lamp
|
R: Yes; F: -
|
|
|
Test Hole (pcs)
|
Φ25mm / 2
|
|
|
Fixed / Levelling Castors (pcs)
|
4 / 0
|
|
|
Fixed / Levelling Feet (pcs)
|
0 / 2
|
|
|
Accessories
|
|
|
|
Voltage Stabilizer
|
Optional
|
|
|
USB Data Download Port
|
Yes
|
|
|
Remote Alarm Port
|
Optional
|
|
|
RS232 / RS485 Port
|
Optional
|
|
|
Temperature Datalogger
|
Optional
|
|
|
Temperature Printer
|
Optional
|
|
|
Shipping
|
|
|
|
Package
|
Carton box with pallet
|
|
|
Shipping Weight
|
204 kgs
|
|
|
Shipping Size (W×D×H)
|
921×960×1950
|
|
|
Shipping Volume
|
1.72 CBM
|
|
