Product name:
-
Led 7 Segment Led Display
-
Brightness:
-
High Brightness
-
Color:
-
Red
-
LED chip:
-
Epistar
-
Warranty:
-
1 Year
-
Name:
-
Led 7 Segment Led Display
-
Module size:
-
28.8*40.8*9.0mm
-
Life span:
-
100000hours
Quick Details
-
Brand Name:
-
kohon
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SND1200BHR-20A
-
Screen Dimension:
-
28.8*40.8*9.0mm
-
Certificate:
-
ROHS
-
Application:
-
Indoor
-
Product name:
-
Led 7 Segment Led Display
-
Brightness:
-
High Brightness
-
Color:
-
Red
-
LED chip:
-
Epistar
-
Warranty:
-
1 Year
-
Name:
-
Led 7 Segment Led Display
-
Module size:
-
28.8*40.8*9.0mm
-
Life span:
-
100000hours

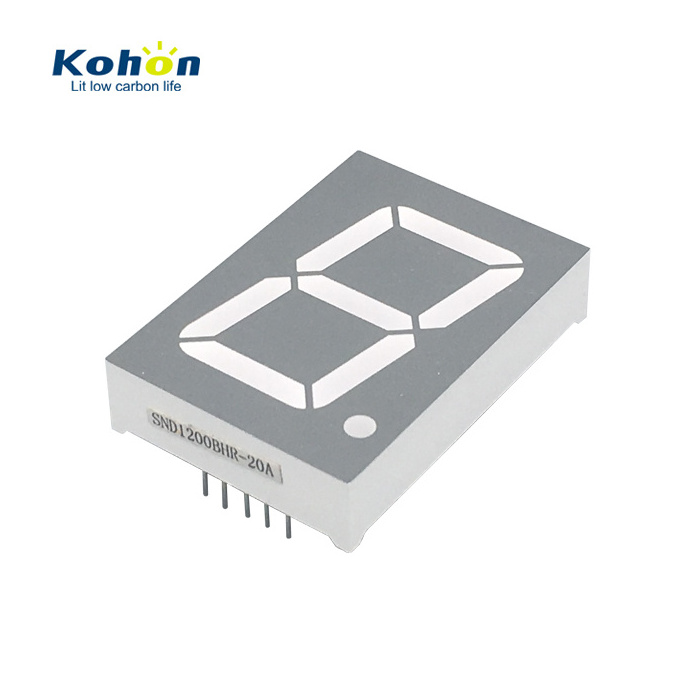

Outward appearance improved single digit 7 segment 1.2 inch seven segment LED numeric display
reliable quality,excellent service,Professional technology
Choose us, is to choose rest assured
1.Features:Connecting Form: Usual anode,Lighting Color:Red
2.Electrical Optical Charactertistics (Ta = 25℃):
| Parameter | Symbol | Min | Type | Max | Unit | Test Condition |
| Luminous Intensity | IV | 25 | 30 | mcd | IF=20mA | |
| Peak Wavelength | l p | nm | IF=20mA | |||
| Dominant Wavelength | l d | 635 | 645 | nm | IF=20mA | |
| Forward VoltageForward Voltage | Vf | 3.6 | 4.0 | 4.8 | V | IF=20mA |
| Reverse Current | IR | 50 | uA | VR=5V | ||
| Suggestion Forward Current | IF | 3 | 5-10 | 20 | mA | IF=20mA |
3.Absolute Maximum Ratings (Ta=25℃):
| Parameter | Rating |
Unit |
| Reverse Voltage | 5 | V |
| Power Dissipation,Per Dice | 60 | mW/chip |
| Operating Temperature Ranger | -20~+65 | ℃ |
| Storage Humidity | 45%~85% | RH |
| Storage Temperature Ranger | -20~+85 | ℃ |
| Soldering Temperature | 260℃ For 3-5 Seconds | 260℃ For 3-5 Seconds |
| Peak IF(ma) (1/10Duty Cycle 0.1ms Pulse Width) | 60 | mA/chip |
| Continuous Forward Current | 20 | mA/chip |
4.Suggested Way OF Usage:
When using LED, It′s circuit adopts constant current,With DC current about 5~10mA,Not more than 20mA at maximum
5.Package Dimension(dimensions:inch):
6.Internal Circuit Diagram(dimensions):
