It is usually colorless and transparent, and its visible light transmittance is 85% or more.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
oem
-
Model Number:
-
customized
-
Product name:
-
UV quartz plate
-
Material:
-
Quartz and Glass
-
Model:
-
plate
-
Color:
-
Transparent or milky white or frosted
-
Size:
-
OEM
-
Usage:
-
Lab Application
-
Packing:
-
Safe Exported Cartons
-
Work Temperature:
-
1100 Degrees Celsius
-
Delivery Time:
-
Usual 15-20 Days
-
Design:
-
Customsized
Quick Details
-
Type:
-
Clear Quartz Plate
-
Application:
-
optical/solar energy/semiconductor
-
Thickness:
-
0.1mm-50mm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
oem
-
Model Number:
-
customized
-
Product name:
-
UV quartz plate
-
Material:
-
Quartz and Glass
-
Model:
-
plate
-
Color:
-
Transparent or milky white or frosted
-
Size:
-
OEM
-
Usage:
-
Lab Application
-
Packing:
-
Safe Exported Cartons
-
Work Temperature:
-
1100 Degrees Celsius
-
Delivery Time:
-
Usual 15-20 Days
-
Design:
-
Customsized
Product Description

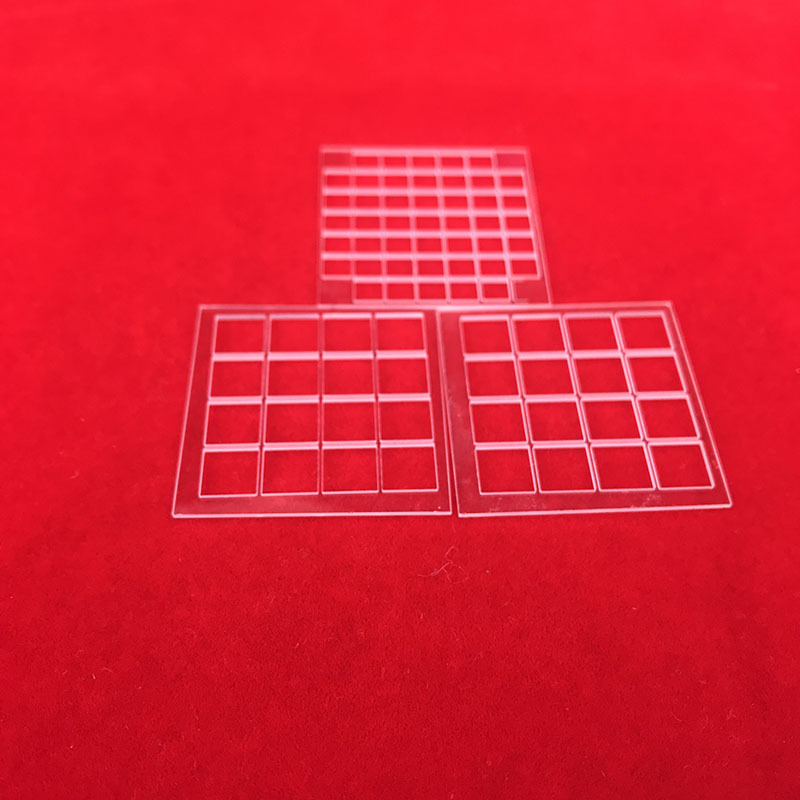

Quartz Plate
Quartz sheets, usually smelted and cut by quartz, have a silica content of over 99.99%. The hardness is 6.5 grades of Mohs, and it has the characteristics of high temperature resistance, low thermal expansion coefficient, thermal shock resistance and good electrical insulation performance.
Chemical composition (unit:ppm)
|
Al
|
Fe
|
K
|
Na
|
Cu
|
Li
|
B
|
Ca
|
Mg
|
OH
|
|
20
|
0.4
|
1
|
1.5
|
0.01
|
1.4
|
0.2
|
0.5
|
0.05
|
120-260
|
Physical Properties:
|
Property Content
|
Unit
|
Property Index
|
|
|
g/cm³ |
2.21 |
|
Tensile Strength |
Pa(N/㎡) |
4.9×107 |
|
Compression Strength |
Pa |
>1.1×109 |
|
(20℃-300℃)
Coefficient of Thermal Expansion |
cm/cm℃ |
5.5×10-7 |
|
Thermal Conductivity |
W/m℃ |
1.4 |
|
Specific Heat |
J/kg℃ |
680 |
|
Softening Point |
℃ |
1700 |
|
Annealing Point |
℃ |
1210 |
Advantage of Quartz Plate:
Material properties:
1.Both side polished
2.Can do flame polishing
3.Broad Transmission Spectrum
4.Low Thermal Expansion Coefficient
5.Vaulted quartz plate can work long time with 1100°C
5.Vaulted quartz plate can work long time with 1100°C
6.clear quartz plate
softening point:1730°C=3146°F Annealing point:1180°C=2156°F
7.clear Vaulted quartz plate
7.clear Vaulted quartz plate
strain point:1075°C=1967°F
8.No bubble, no airline
9.High Corrosion Resistance transmission of visible light>90%
1.JGS1( High-purity UV optical quartz glass) JGS1 optical quartz glass plate is a very good kind of light transmission glass,
because it nearly has no any air-bubbles in glass. At 185nm wavelength, the UV transmission can be up to 90%. JGS1 is generally used in the range of 185-2500nm wavelength.
because it nearly has no any air-bubbles in glass. At 185nm wavelength, the UV transmission can be up to 90%. JGS1 is generally used in the range of 185-2500nm wavelength.
2.JGS2 (UV quartz glass) JGS2 quartz glass plate has little air-bubbles in glass, and is generally used as heat-resistant glass.
If used as optical glass, its transmission wavelength is 220-2500nm.
If used as optical glass, its transmission wavelength is 220-2500nm.
3.JGS3 (Infrared quartz glass) It has a good performance of infrared light transmission with a transmittance of over 85%. It is
recommended for applications in the wavelength range of 260-3500nm.
recommended for applications in the wavelength range of 260-3500nm.
We supply all kind quartz product, containing: quartz glass tube, quartz glass plate, quartz glass crucible, quartz glass cuvette and all kinds quartz labware. If you need sample, please contact us.
We can customize products according to your requirements!
