High sensitive radar detector for led light ceiling mount radar motion sensor microwave motion sensor switch for panel lights

High sensitive radar detector for led light ceiling mount radar motion sensor microwave motion sensor switch for panel lights

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2.99

≥5000 Pieces

US $2.29

≥100000 Pieces

US $2.19

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Mounting Type:: Built-in

Description:: Microwave Motion Sensor Switch, microwave motion sensor switch

Model Number:: KM501S

Place of Origin:: Jiangsu, China

Brand Name:: LANQUAD

Theory:: Doppler Princeple

Output:: 220-240VAC 50/60Hz

Power Source:: 220-240V/DC

Standby Power Consumption:: ≤0.2W

HF system:: 5.8GHz, ISM band

Time Delay:: 5s~30min, adjustable

Ambient Light:: 5Lux, 10Lux, 25Lux, 50Lux, Disable.

Detection Range:: 100%, 75%, 50%, 25%,10%.

Detection Angle:: 180*360 degree

IP Rating:: IP20

Working temperature:: -20~85℃

Sensor Type:: Microwave Doppler Sensor

Quick Details

Usage:: Auto lighting control sensor

Series:: 5.8GHz Microwave Motion sensor

Features:: Radar Microwave sensor switch

Mounting Type:: Built-in

Description:: Microwave Motion Sensor Switch, microwave motion sensor switch

Model Number:: KM501S

Place of Origin:: Jiangsu, China

Brand Name:: LANQUAD

Theory:: Doppler Princeple

Output:: 220-240VAC 50/60Hz

Power Source:: 220-240V/DC

Standby Power Consumption:: ≤0.2W

HF system:: 5.8GHz, ISM band

Time Delay:: 5s~30min, adjustable

Ambient Light:: 5Lux, 10Lux, 25Lux, 50Lux, Disable.

Detection Range:: 100%, 75%, 50%, 25%,10%.

Detection Angle:: 180*360 degree

IP Rating:: IP20

Working temperature:: -20~85℃

Sensor Type:: Microwave Doppler Sensor

Product Description

High sensitive radar detector for led light ceiling mount radar motion sensor microwave motion sensor switch for panel lights

The sensor is an active motion detector, it emits high-frequency electro-magnetic wave（5.8GHz）and receives their echo. The sensor detects the change in echo from even the slightest movement in its detection zone. A microprocessor then triggers the “switch light ON” command. Detection is possible through doors, panes of glass or thin walls.

Features

1. Low power consumption, power-saving.
2. Detect distance, ambient light and time-delay are adjustable, you can make your own setting.
3. Microwave Radar Sensor, 360° wide angle detection and further detection distance, can penetrate glass and veneer, but not wall.
4. Pluggable type of the terminals which make easier and much convenient to install.
5. Applicable to monitoring equipment, warning facility, LED lamp, fluorescent lamp, incandescent lamp, ventilator and magnetic valve and so on.
6. Well suited to circulation areas, integral garages, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on accidentally.
7. Can be installed on wall, ceiling and anywhere of your house.

Product schematic

KM501S is an ISM wave band 5.8GHz microwave light control motion sensor switch, which detects moving objects in the surrounding
environment according to the Doppler effect principle.

When a person or moving object enters the detection range, KM501S starts to
energize the load. If it remains active while within detection range, the switch will repeat the time delay without de-energizing.
Keeping still or leaving the detection range, the switch will automatically power off after a period of delay.

1. The light keeps on during daytime even when movement is detected. (Ambient lux level is above preset daylight threshold.

2. With movement and insufficient ambient lux level, the light is triggered on by the detector.

3. If there is no more movement, the light turns off automatically after hold-time preset.

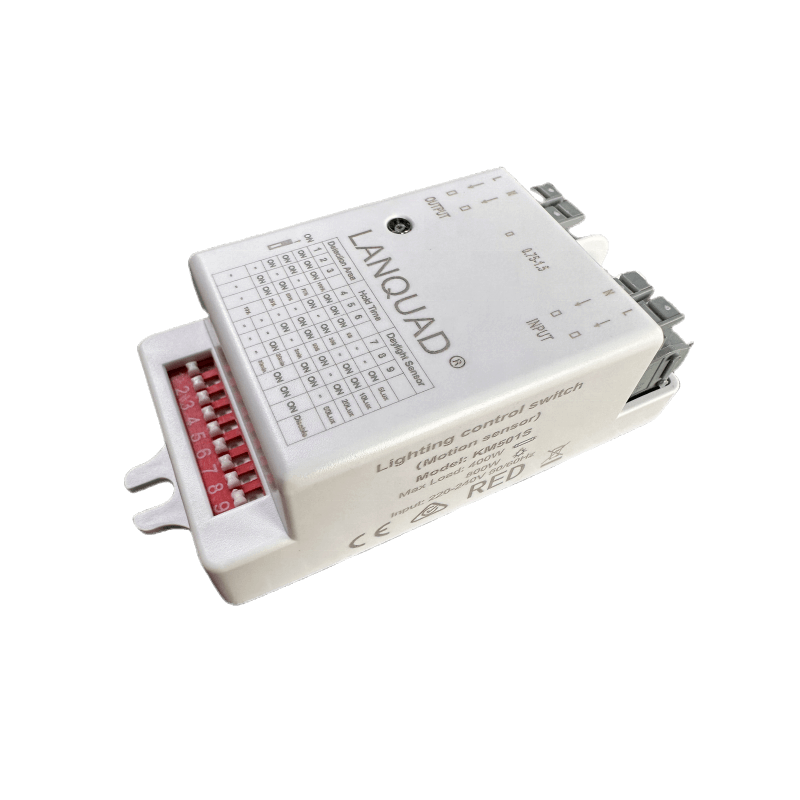

Micorwave Motion Sensor Light Control Switch with Daylight Sensor and Dip Switch

We developed a super small size light contorl switch, flexible installation for all kinds of lamps.
Dip switch, microwave radar motion sensor and day light sensor are integrated into one product.
Detection distance, hold on time and light theroshold are adjustable, setting via Dip switch, simple operation.
Terminal design for both in and off connection, easy to be connected.

1.Detection Sensitive

Sensitivity can be adjusted by selecting the combination on the dip switches for different applications.

2. Hold Time

Hold time refers to the time period that the light remain 100% on if no more movement is detected.

3. Light Control

Different daylight thereshold can be preset on DIP switches. Light will always turn on upon movement if daylight sensor is disbaled.

Specification

Name	Microwave Motion Sensor
Model No.	KM501S
Power supply	220-240VAC
Power frequency	50/60Hz
HF system	5.8GHz CW radar, ISM band
Transmission power	＜10mW
Rated load	400W@230Vac, Capacitive Load. 800W@230Vac, Resistive Load.
Installation Height	3m recommened
Detection angle	Ceiling mounted: 360° Wall mounted: 180°
Detection distance	1-7m (radii), adjustable
Detection setting	100%, 75%, 50%, 25%,10%.
Time setting	5s, 30s, 90s, 3min, 20min, 30min
Light control	5Lux, 10Lux, 25Lux, 50Lux, Disable
Power consumption	＜0.2W
Product size	77x36x28mm
Certificate	CE, RED,TUV
IP level	IP20
Guraranty	5 Years
