Quick Details
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OPEN
-
Model Number:
-
ZJSB9-80Z
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
1
-
Rated current:
-
16A/20A/40A/63A/80A/100A/125A
-
Rated voltage:
-
230V
-
Breaking capacity:
-
10KA
-
Product name:
-
circuit breaker
-
Standard:
-
GB 10963.1
-
Poles Number:
-
1
Quick Details
-
Breaking Capacity:
-
10KA
-
Rated Voltage:
-
230V
-
Rated Current:
-
16A/20A/40A/63A/80A/100A/125A
-
BCD Curve:
-
C
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OPEN
-
Model Number:
-
ZJSB9-80Z
-
Rated Frequency (Hz):
-
50/60Hz
-
Number of Pole:
-
1
-
Rated current:
-
16A/20A/40A/63A/80A/100A/125A
-
Rated voltage:
-
230V
-
Breaking capacity:
-
10KA
-
Product name:
-
circuit breaker
-
Standard:
-
GB 10963.1
-
Poles Number:
-
1

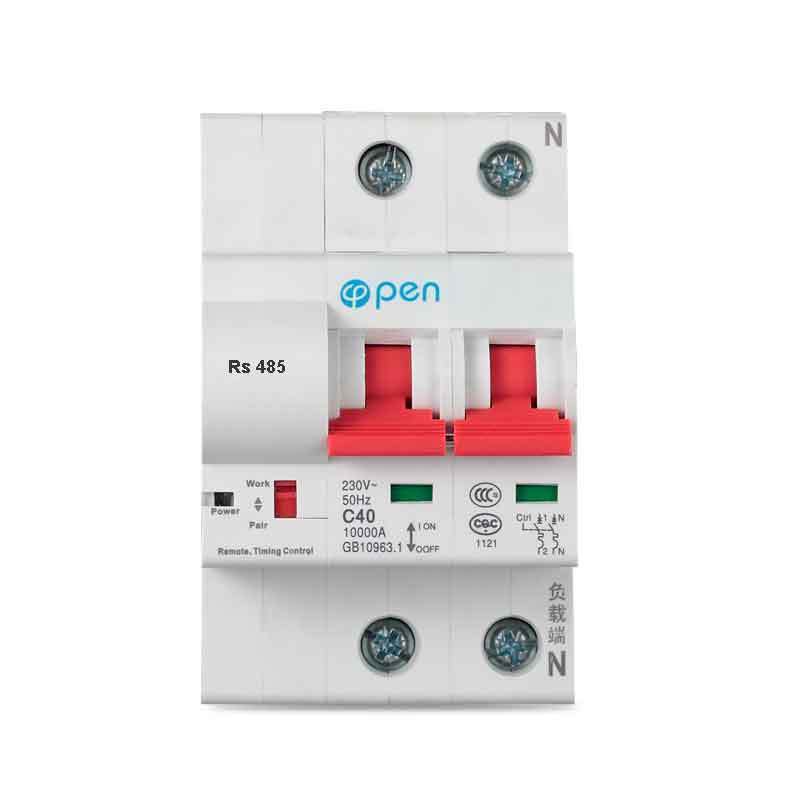

Remote control RS485 reclosing circuit breaker with overload and short circuit breaker
Application
The ZJSB9-80Z Rs 485 intelligent recloser circuit breaker can be widely used in household, factories, sduent dormitroy, farmland, muicipal works and can intelliently remote control water pump, water heater, underfloor heating equiement, etc
Function
The ZJSB-80Z Rs485 reclosing circuit breaker are suitable for 50Hz/60Hz, 230/400V 0~125A circuit which have the function such as overload protection, short-circuit protection and isolating protection. Meanwhile, this intelligent resclosing circuit breaker have the function as switched off/on globally remote control by smart cell phone.
Technical Data
|
Standard |
GB10963.1; IEC60898-1 |
|
Rated voltage |
AC230V 1P 2P; AC400V 3P 4P |
|
Frequency |
50/60Hz |
|
Pole Number |
1P,2P, 3P, 4P |
|
Anti-pollution grade |
2 |
|
Protection grade |
IP20 |
|
Installation category |
II , III |
|
Ambient temperature |
-25℃~ +65℃ |
|
Frame grade rated current |
80A, 125A |
|
Rated current |
32A,40A,63A,80A, 100A, 125A |
|
Instantaneous tripping characteristic |
B,C |
|
Rated short circuit breaking capacity |
10KA |
|
Rated impact withstand voltage |
6KV |
|
Mechanism life |
>10000 times |
|
Electrical life |
>6000 times |
Feature
- Remote control at anytime
- overload and short circuit protection
- over volatage and under voltage protection
- timely switch on/off
- time delay switch on/off
-
cycle switch on/off
