Quick Details
-
Brand Name:
-
OEM
-
Equipment Length::
-
1m 2m 3m 5m 10m
-
Fiber Type::
-
G652D,G657A,OM3,OM4
-
Fiber core::
-
2,4,6,8,12 Core
-
Connector type:
-
SC, FC, ST, LC, MU, MT-RJ
-
Cable Jacket:
-
PE sheath
-
Return Loss:
-
Upc>=55dB;APC>=60dB
-
Single-Mode Fiber:
-
G652D
-
No. of Fiber:
-
2.
-
Use:
-
FTTH
Quick Details
-
Type:
-
Fiber Pigtails
-
Model Number:
-
Waterproof fiber pigtail/Patch cord
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Equipment Length::
-
1m 2m 3m 5m 10m
-
Fiber Type::
-
G652D,G657A,OM3,OM4
-
Fiber core::
-
2,4,6,8,12 Core
-
Connector type:
-
SC, FC, ST, LC, MU, MT-RJ
-
Cable Jacket:
-
PE sheath
-
Return Loss:
-
Upc>=55dB;APC>=60dB
-
Single-Mode Fiber:
-
G652D
-
No. of Fiber:
-
2.
-
Use:
-
FTTH

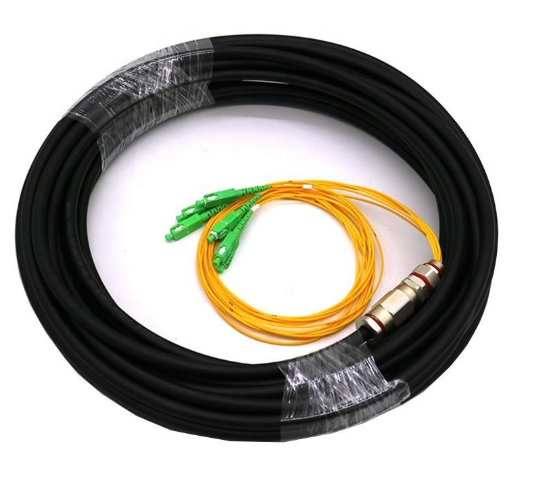

2 4 6 8 12 Core Waterproof Outdoor Optical Fiber Pigtail Patch Cord Cable With SC/APC Connector
Waterproof Fiber Pigtail/Patch Cord can be used in harsh environment.It is mainly used in outdoor connection of the optical transmitter.Waterproof fiber pigtail is designed with a stainless steel strengthened waterproof unit and armored outdoor PE jacketed cables.
Waterproof fiber pigtails/Patch cord are widely used in data transmission network, typical types are
with 2 fiber cores, 4 fiber cores or 8, 12 fiber cores. By adopting the special structure cables and
connectors, these fiber cable assemblies are widely used in CATV and other applications.
Waterproof Pigtail cable is used for outdoor harsh environments event network system, which is waterproof and waterproof, and the Tough rubber-sheathed cable can prevent the fiber bending damage.
Characteristics:
1.Low insertion loss and back reflection loss
2.Good exchangeability
3.Good Durability
4.High temperature stability.
5.Standard: Telecordia GR-326-CORE
6.Precise connector
7.Excellent mechanical capability
Application:
1. Optical fiber communication networks
2. Telecommunication network
3. CATV,LANs and WANs
4. Connection of equipment in the open air
5. Installation and debugging in harsh conditions
6. FTTx
Operating Temperature: -40°C to +85°C
| Fiber Optic Pigtail | |
| Parameter & Specification | |
|
Mode |
Single – mode , Multi-mode |
|
Type |
FC, LC, SC, ST, MU, MTRJ, MPO, E2000 |
|
Polishing |
APC, UPC, PC; |
|
Insertion Loss(dB) |
≤ 0.2, ≤ 0.3 |
|
Return Loss(dB) |
≥ 50, ≥ 65 |
|
Exchangeability(dB) |
≤ 0.2 |
|
Repeatability(dB/1000times) |
≤ 0.2 |
|
Operation Wavelenghth(nm) |
850; 1310; 1550 |
|
Operating Temperature(° C) |
-30— +75 |
|
Storage Temperature(° C) |
-40— +85 |
|
Cable OD(mm) |
0.9, 2.0, 3.0 |
