Quick Details
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
China
-
Product Name:
-
Connectable 1.5m 50W IP65 led linear pendant light
-
Lamp Luminous Flux(lm):
-
8000lm
-
Power:
-
50W
-
Size:
-
1495x43x57mm
-
Color:
-
3000K/4000K/6000K
-
Beam angle:
-
30/60/90/120
-
Power factor:
-
>0.95
-
Material:
-
AL+PC/PMMA
-
LED Chip:
-
Sanan SMD2835 Chip
Quick Details
-
Warranty(Years):
-
5
-
Lamp Luminous Efficiency(lm/w):
-
160
-
Lamp Body Material:
-
Aluminum Alloy
-
Working Temperature(℃):
-
-20 - 45
-
Place of Origin:
-
China
-
Product Name:
-
Connectable 1.5m 50W IP65 led linear pendant light
-
Lamp Luminous Flux(lm):
-
8000lm
-
Power:
-
50W
-
Size:
-
1495x43x57mm
-
Color:
-
3000K/4000K/6000K
-
Beam angle:
-
30/60/90/120
-
Power factor:
-
>0.95
-
Material:
-
AL+PC/PMMA
-
LED Chip:
-
Sanan SMD2835 Chip

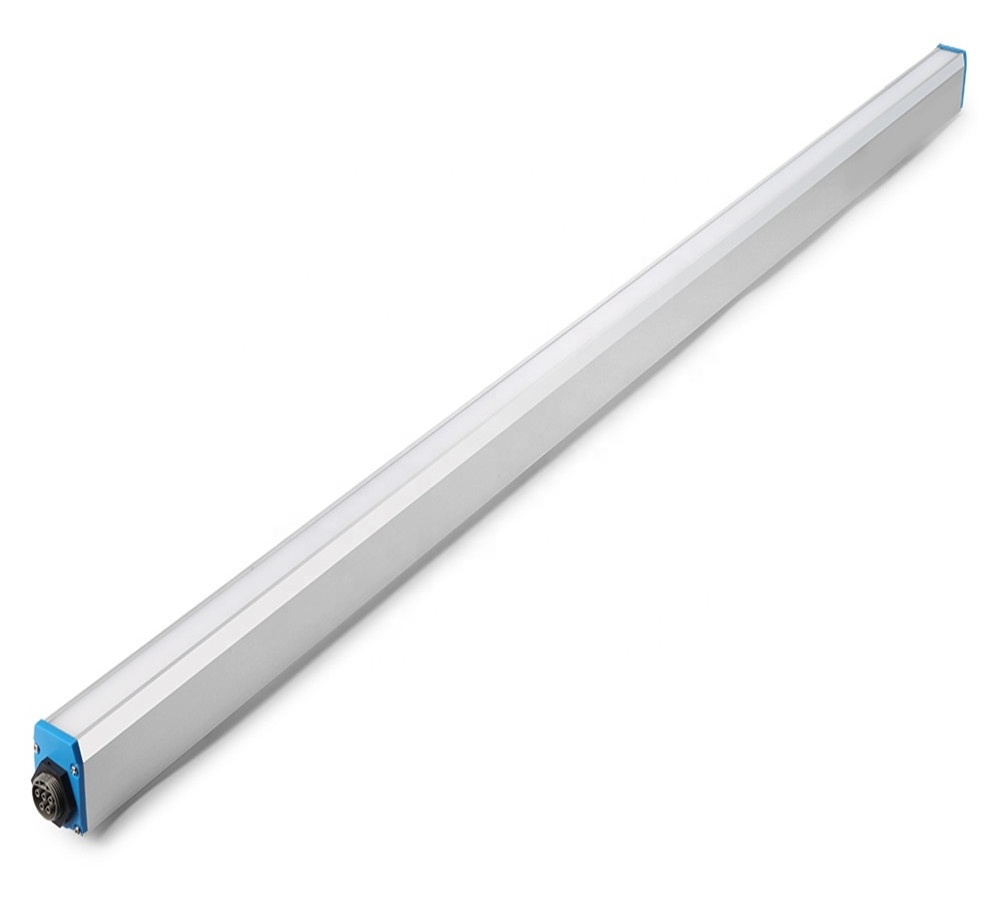

1500mm Lens Warehouse Supermarket Continuous Linkable Trunking System Linear Led light Fixture
| 1.5M Linear light | |||||||
| Model No. | Size | Watts | Efficiency | CCT | CRI | Power | Beam Angle |
| LM-65ST15-50W-xxL-xxK | 1495*43*57mm | 50W | 160LM/W | 3000-6000K | >85 Or 95 |
100-277VAC 50-60HZ PF>0.9 |
30/60/90/120 degree |
| 1.2M Linear linear light | |||||||
| LM-65ST12-40W-xxL-xxK | 1195 *43*57mm | 40w | 160LM/W | 3000-6000K | >85 Or 95 |
100-277VAC 50-60HZ PF>0.9 |
30/60/90/120 degree |
| LM-65ST12-30W-xxL-xxK | 30W | ||||||
| LM-65ST12-30W-xxL-xxK | 18w | ||||||
| Notes:Length can be customized. | |||||||
Feature of LED Linear Tube Light
1. Feature IP65, 3-in-1, waterproof, anti-corrosion, anti-dust
2. Safe installation, no need to turn off power
3. Hanging with chain, surface mounting without extra rails
4. Linkable length 60M max
5. Quick installation, saving labor cost
6. 30 , 60 , 90 , 120 degree for option
7. DALI & 0-10V dimmable
8. High luminous efficiency:160 LM/W, energy saving
Key Specification of LED Linear Tube Light
1. 100 ~ 277V, 50 ~60Hz (3 / N 380V)
2. 50,000 hours, L80 / B10 CRI > 80 / 95
3. Plug-in system, 5-pin typical ( 1.5 mm , DALI 2.5 mm )
4. Luminous efficacy:160lm/w
5. Current:16 A
6. Energy efficiency rating (EEI = 0.1) A ++
7. Working temperature : - 30 to + 40 ° C
------------------------
Pictures of products
Commercial, industrial, agricultural use: shopping mall, office, hospital, warehouse, plant grow
Library, restaurant, supermarket, studio , coffe house etc..
1, Susending
2, Surface monted
