Quick Details
-
Cross Reference:
-
according to customers' demand
-
Material:
-
Copper
-
Keyword:
-
Switch Lube Station
-
Color:
-
Customized Color
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
according to customers' demand
-
Model Number:
-
according to customers' demand
-
Cross Reference:
-
according to customers' demand
-
Material:
-
Copper
-
Keyword:
-
Switch Lube Station
-
Color:
-
Customized Color
Products Description
|
product
|

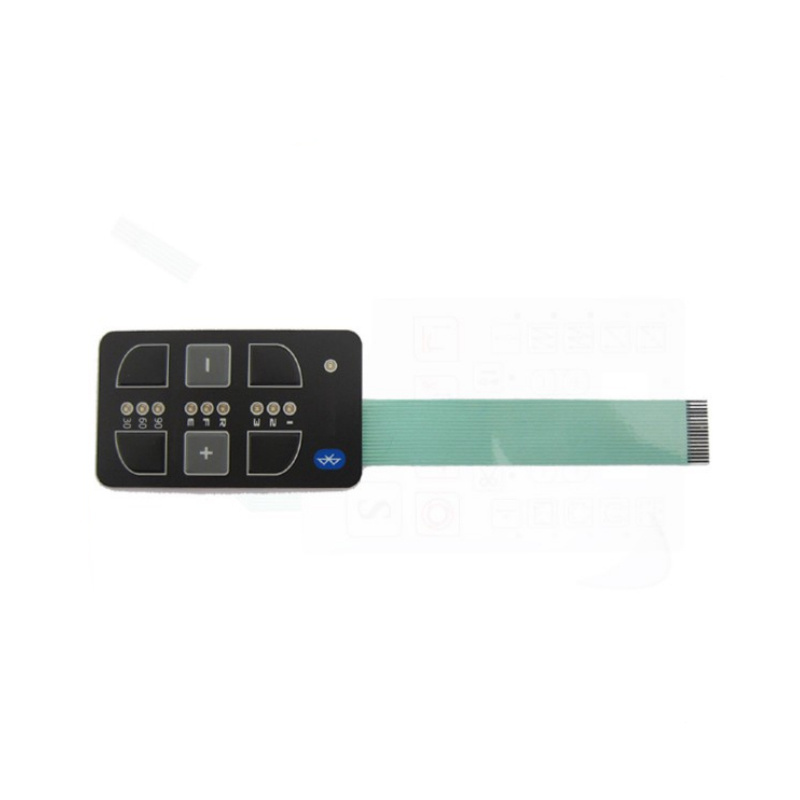

Thin film switch
|
|
|
Product structure
|
Base material +Spacer+Upper circuit layer+Spacer+down circuit layer+Adhesive
|
|
|
Electronic characteristics
|
|
|
|
Circuit rating
|
35V(DC),100mA,1 W
|
|
|
Contact resistance
|
10Ω - 500Ω( According to the trace length and materials to confirm)
|
|
|
Insulation nresistance
|
>100MΩ 250V(DC)
|
|
|
Contact bouce
|
≤5ms
|
|
|
Dielectric withstand voltage
|
250VRms(50 - 60Hz/1 min)
|
|
|
Mechanical Properties
|
|
|
|
Responsiblity Working life
|
flat type≥500 million times;
|
|
|
|
Tactile type:≥100million times.
|
|
|
Operating pressure
|
Flat type 57-284g(2-10 OZ);
|
|
|
|
Tactile type 170-397g(6-14 Oz).
|
|
|
Switch stroke
|
flat tyep 0.1-0.5mm;
|
|
|
|
Tactile type: 0.6-1.5mm
|
|
|
Environment parameters
|
|
|
|
Operating Temperature
|
-30°C - +85°C
|
|
|
Humidity
|
40°C,90%-95%,240H
|
|
