Quick Details
-
Footprint:
-
1080(W)*1180(D)*1730(H)mm
-
Tube type:
-
Sealed
-
Focus Spot Size:
-
5μm
-
Effective Inspection Area:
-
130*130mm
-
Pixel Matrix:
-
1536*1536
-
Pixel Size:
-
85μm
-
Frame Rates:
-
20fps
-
Max. Inspection Area:
-
435*385mm
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
chikn
-
Footprint:
-
1080(W)*1180(D)*1730(H)mm
-
Tube type:
-
Sealed
-
Focus Spot Size:
-
5μm
-
Effective Inspection Area:
-
130*130mm
-
Pixel Matrix:
-
1536*1536
-
Pixel Size:
-
85μm
-
Frame Rates:
-
20fps
-
Max. Inspection Area:
-
435*385mm
Specification
Product Description
|

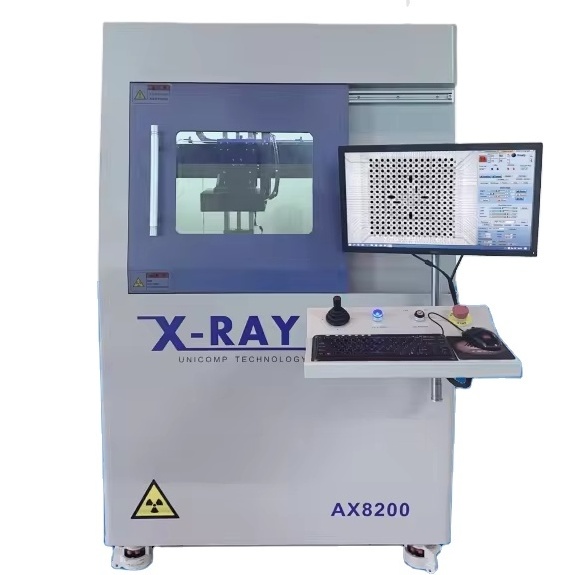

SMD PCB quality X-Ray inspection machine
|
|
|
|
Footprint
|
1080(W)×1180(D)×1730(H)mm
|
|
|
Power supply
|
AC 110~220V, 50/60Hz
|
|
|
Weight of the machine
|
1050 kg
|
|
|
Power Consumption
|
1.0 KW
|
|
|
Tube type
|
Sealed
|
|
|
Voltage
|
0~90kV (Adjustable)
|
|
|
Max. Power
|
8W
|
|
|
Focus Spot Size
|
5μm
|
|
|
Detector
|
Flat Panel Detector (option 4’’ i.i. Detector)
|
|
|
Effective Inspection Area
|
130*130mm
|
|
|
Warranty
|
1 Year
|
|
|
Pixel Matrix
|
1536*1536
|
|
|
Pixel Size
|
85μm
|
|
|
Frame Rates
|
20fps
|
|
|
System Magnification
|
600X
|
|
|
Navigation
|
Laser Locator for Precise Location
|
|
|
Movement Control
|
Joystick, Keypad & Mouse
|
|
|
Max. Loading Area/Weight
|
510*420mm /10kg
|
|
|
Max. Inspection Area
|
435*385mm
|
|
|
Obique Views
|
Max. ±60°
|
|
