Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
33000 kg
Quick Details
-
Rated Loading Capacity:
-
25 ton
-
Max. Lifting Height:
-
47.6m
-
Engine Brand:
-
shangchai
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
XCMG
-
Weight (KG):
-
33000 kg

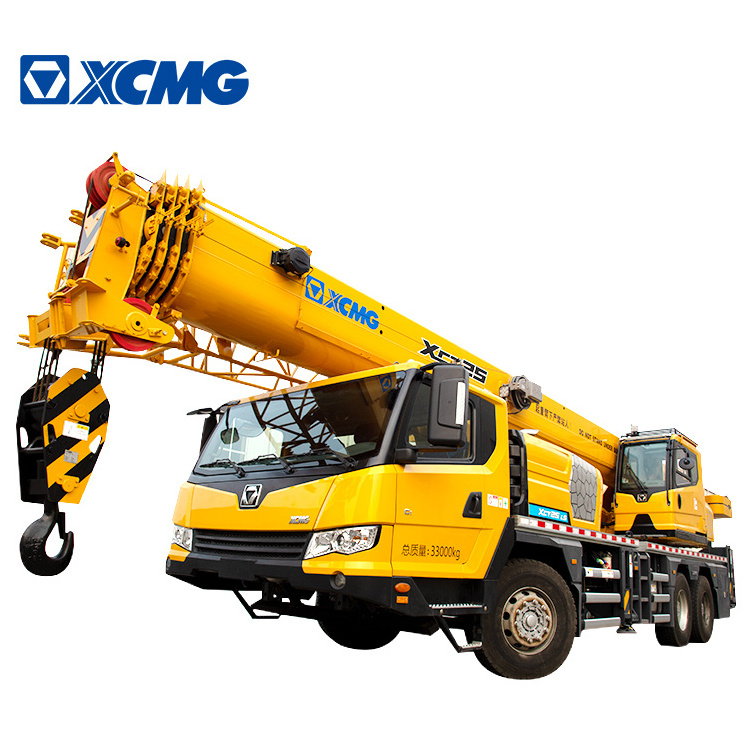

XCMG Manufacturer Mobile Crane XCT25L5 25 Ton Truck Cranes.
XCT25L5 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.
1. Super lifting performance
* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the
max. working radius is 38.5 m; The performance takes the lead comprehensively.
* Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.
2. New energy-saving hydraulic system
* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
* Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.
3. Low-speed large-torque power drive system
Resulting in perfect combination of high-power performance and low fuel consumption, i.e.12% reduction in fuel consumption fordriving, 15% for operation, and 15% improvement in power performance.
1. Super lifting performance
* 5-section boom of 42 m with U-type profile is adopted; the max. lifting load is 25 t; the max. lifting height is 50.2 m; the
max. working radius is 38.5 m; The performance takes the lead comprehensively.
* Innovative single-plate boom head and compact boom tail structure, best overlapping ratio in its class and stronger boom load-bearing capacity.
2. New energy-saving hydraulic system
* The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min. Precise and safe lifting movements can be realized.
* Dual-pump separate and confluent control technology brings higher compound movement performance in the industry with higher working efficiency.
3. Low-speed large-torque power drive system
Resulting in perfect combination of high-power performance and low fuel consumption, i.e.12% reduction in fuel consumption fordriving, 15% for operation, and 15% improvement in power performance.
Product Description
Specification
|
Dimension
|
Unit
|
XCT25L5
|
|
Overall length
|
mm
|
12870
|
|
Overall width
|
mm
|
2550
|
|
Overall height
|
mm
|
3470
|
|
Total weight in travel
|
kg
|
33000
|
|
Engine model
|
|
SC9DF290.1Q4/SC9DF290.2Q4
|
|
Engine rated power
|
kW/(r/min)
|
213/1900
|
|
Engine rated torque
|
N.m/(r/min)
|
1400/1400
|
|
Max. travel speed
|
km/h
|
90
|
|
Min. turning diameter
|
m
|
21
|
|
Min. ground clearance
|
mm
|
260
|
|
Approach angle
|
°
|
12
|
|
Departure angle
|
°
|
14
|
|
Max. grade ability
|
%
|
45
|
|
Fuel consumption for 100km
|
L
|
30
|
|
Max. rated total lifting capacity
|
t
|
25
|
|
Min. rated working radius
|
m
|
3
|
|
Turning radius at turntable tail
|
m
|
3.34
|
|
Max. lifting torque
|
kN.m
|
1132
|
|
Base boom
|
m
|
10.2
|
|
Max.main boom
|
m
|
41
|
|
Max.main boom+jib
|
m
|
50.2
|
