Quick Details
-
Model Number:
-
BTE2.0
-
Certificate:
-
Solar Key Mark/CE
-
Warranty:
-
15 years
-
Diamension L*W*H:
-
2000x1000x80 mm/accoriding to customers' requirements
-
Gross Area:
-
2.0㎡
-
Header Pipe:
-
19,22mm,25mm,28mm
-
Riser pipe:
-
8/10/12/15
-
Glass:
-
3.2mm Low Iron Tempered Glass
-
Frame:
-
1.2mm Aluminum
-
Insulation:
-
Fiberglass/Polyurethane
-
Coating:
-
Black Chromium/Blue Coating/Germany imported Coating
-
Efficiecy:
-
95%
-
Emission:
-
4-6%
Quick Details
-
Pipe Material:
-
Copper
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BTE&OEM&ODM
-
Model Number:
-
BTE2.0
-
Certificate:
-
Solar Key Mark/CE
-
Warranty:
-
15 years
-
Diamension L*W*H:
-
2000x1000x80 mm/accoriding to customers' requirements
-
Gross Area:
-
2.0㎡
-
Header Pipe:
-
19,22mm,25mm,28mm
-
Riser pipe:
-
8/10/12/15
-
Glass:
-
3.2mm Low Iron Tempered Glass
-
Frame:
-
1.2mm Aluminum
-
Insulation:
-
Fiberglass/Polyurethane
-
Coating:
-
Black Chromium/Blue Coating/Germany imported Coating
-
Efficiecy:
-
95%
-
Emission:
-
4-6%

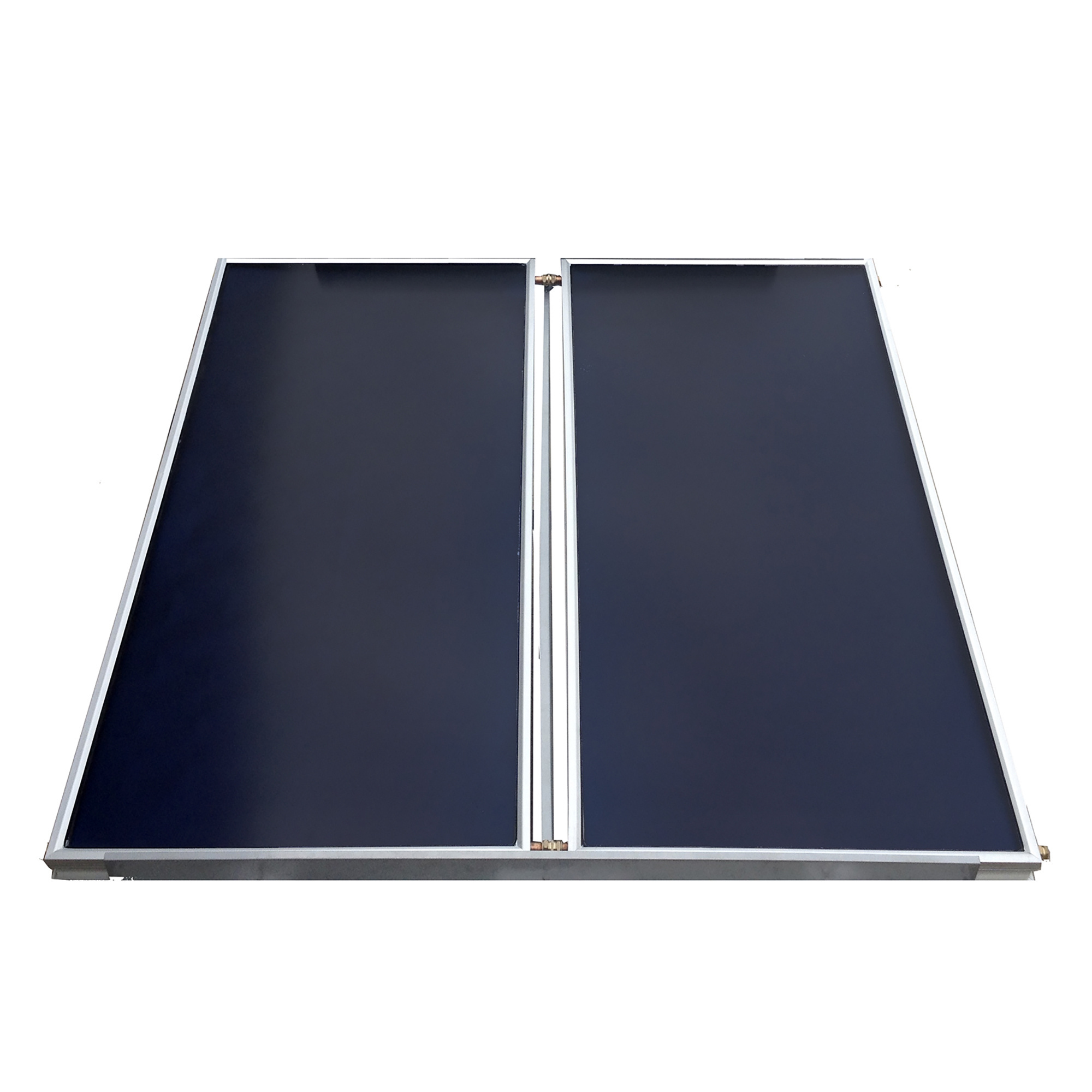

Flat panel collectors
Flat panel collectors working principle is different from evacuated tubes collector. A glazed flat-plate solar collector consists of a shallow rectangular box with a flat black plate behind a tempered glass cover. The plate is attached to a series of parallel tubes or one serpentine tube through which water or another liquid (such as an antifreeze solution) passes. Sunlight passes through the glazing and strikes the absorber plate, which heats up, changing sunshine into heat energy. The heat is transferred to liquid passing through pipes attached to the absorber plate. Bontel can supply you different kinds of high quality absorber plate
with selective film.
Product Paramenters
Product drawing
BTE Advantages:
1.The high weather-proof selective absorbing film from full-automatic magnetron sputtering production line developed by Bontel;
2.With Bonding heat transferring technology and laser welding technology;
3.High quality low-iron tempered glass with surface treatment to get high transmittance and low emittance;
4.Circulation fluid in closed copper pipes, no glass tubes. So collectors without corrosion and circulation fluid leaking;
5.The solid built-in absorber plate can absorb all solar radiation improve working efficiency and integrated well with buildings.
Product application
