- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Longi Solar
-
Model Number:
-
LR4-60HPH 350-380M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1755 *1038 *35 mm
-
Weight:
-
19.5kg
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
Single Glass, 3.2 mm coated tempered glass
-
Application:
-
Solar Power System
-
Maximum System Voltage:
-
1500V DC
-
Cell:
-
6x20 Monocrystalline solar semi-cells
-
Junction Box:
-
IP68, three diodes
-
Cable:
-
Length 300 mm, 1x4 mm
-
Connector:
-
MC4/MC4 Compatible
-
Certificate:
-
TUV/CE/IEC
Quick Details
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
19.2% - 20.9%
-
Warranty:
-
25 years linear output power warranty
-
Brand Name:
-
Longi Solar
-
Model Number:
-
LR4-60HPH 350-380M
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1755 *1038 *35 mm
-
Weight:
-
19.5kg
-
Frame:
-
Anodized Aluminium Alloy
-
Glass:
-
Single Glass, 3.2 mm coated tempered glass
-
Application:
-
Solar Power System
-
Maximum System Voltage:
-
1500V DC
-
Cell:
-
6x20 Monocrystalline solar semi-cells
-
Junction Box:
-
IP68, three diodes
-
Cable:
-
Length 300 mm, 1x4 mm
-
Connector:
-
MC4/MC4 Compatible
-
Certificate:
-
TUV/CE/IEC
Product Description
|
Typical Mechanical Characteristics
|
|
|
|
Dimension
|
1755 x 1038 x 35 mm
|
|
|
Weight
|
19.5 KG
|
|
|
Frame
|
Anodized Aluminum frame
|
|
|
Glass
|
Single Glass, 2.0 mm coated tempered glass
|
|
|
Fire Rating
|
UL type 1 or 2
|
|
|
Power Output Tolerance
|
0 ~ +5w
|
|
|
Cells
|
6x20 Monocrystalline Solar Semi-Cells
|
|
|
Junction Box
|
IP68, three diodes
|
|
|
Cable
|
Length 300 mm, 1 x 4 mm²
|
|
|
Connector
|
Compatible with MC4
|
|
|
Temperature Characteristics
|
|
Maximum Ratings
|
|
||
|
Voltage Temperature Coefficient
|
-0.27%/K
|
Maximum System Voltage (V)
|
1500
|
||
|
Current Temperature Coefficient
|
+0.048%/K
|
Series Fuse Rating (A)
|
20
|
||
|
Power Temperature Coefficient
|
-0.35%/K
|
Reverse Current Overload (A)
|
20
|
||
|
Packaging
|
|
System Design
|
|
||
|
Container 20'
|
180 pcs.
|
Temp. Range
|
-40℃ to +85℃
|
||
|
Container 40'
|
594 pcs.
|
Hail
|
Max. diameter of 25mm with impact speed of 23m/s
|
||
|
Container 40'HC
|
780 pcs.
|
Max. Capacity
|
Snow 5400 Pa, wind 2400 Pa
|
||
|
|
|
Application Class
|
A
|
||
|
|
|
Safety Class
|
Ⅱ
|
||

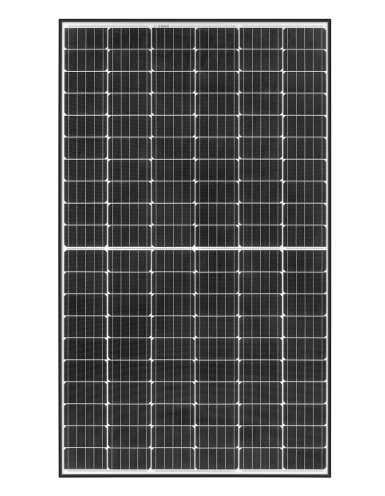

Details Images
