Quick Details
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAPENG
-
Year:
-
2021
-
Voltage:
-
380V/50HZ 3 phase
-
Dimension(L*W*H):
-
800*600mm
-
Weight (T):
-
4 T
-
Model Number:
-
DP-300Ton
-
Motor Power (kw):
-
11 kw
-
Warranty:
-
12 month
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
CNC
-
Working table size:
-
800X600mm
-
Master cylinder MAX range:
-
150mm
-
application:
-
300 Ton hydraulic press
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
/CE
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
200
-
Ejector Force (kN):
-
2000
-
Return Force (kN):
-
2000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DAPENG
-
Year:
-
2021
-
Voltage:
-
380V/50HZ 3 phase
-
Dimension(L*W*H):
-
800*600mm
-
Weight (T):
-
4 T
-
Model Number:
-
DP-300Ton
-
Motor Power (kw):
-
11 kw
-
Warranty:
-
12 month
-
Power Source:
-
Hydraulic
-
CNC or Not:
-
CNC
-
Working table size:
-
800X600mm
-
Master cylinder MAX range:
-
150mm
-
application:
-
300 Ton hydraulic press
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
Certification:
-
/CE
300 Ton hydraulic press for watchcase
Product features :
1,The Main cylinder is adpoted Alloy steel forging as a whole or High quality ductile iron casting as a whole, and processed of precision grinding, reliable using under high pressure
2,The main piston is adpoted alloyed steel forging, precised polish and chromed surface , Good abrasion resistance
3, The post adopted the high strength alloyed steel produce , hardening and tempering overall processed , and polished chromed surface treatment , good abrasion resistance
Scope of application :
Metal or nonmetal parts stamping, forming, shallow tensile, plastic shaping, die and trimming, blanking , cut material and so on.
Can press the typical products are auto brake pad liner , watch surface, watchcase, table bottom cover, strap, LED heat sink, tableware, commemorative badges, gifts, accessories, jewelry, glasses frame, signs, locks, lights, button, grinding wheel suppression and circuit boards, electronic modules such as correction, straightening of material installation.
300 Ton hydraulic press for watchcase Standard configuration :
Rapid oil cylinder
Hands button
Workers into (quick turn slowly)
The holding function
Photoelectric protection device
300 Ton hydraulic press for watchcase Optional function :
Multiple suppression (automatic pressure function)
returned material device
cylinder type four-column hydraulic press technology parameters
|
MODEL |
UNIT |
DP-100S |
DP-150S |
DP-200S |
DP-300S |
DP-500S |
|
|
master cylinder force |
ton |
100 |
150 |
200 |
300 |
500 |
|
|
Master cylinder MAX range |
mm |
150 |
150 |
150 |
150 |
200 |
|
|
WORKING TABLE HEIGHT |
mm |
820 |
820 |
820 |
820 |
900 |
|
|
Max open height |
mm |
400 |
400 |
400 |
400 |
600 |
|
|
Activity table movement speed |
downward |
mm/s |
210 |
210 |
180 |
140 |
135 |
|
Peak working |
mm/s |
5/10 |
5/10 |
4/7 |
3/6 |
3/6 |
|
|
Max return speed |
mm/s |
180 |
180 |
120 |
110 |
110 |
|
|
Working table size |
Left and right |
mm |
400 |
400 |
450 |
550 |
700 |
|
Front and back |
mm |
500 |
500 |
550 |
650 |
800 |
|
|
T-slot, connecting screw size |
|
M16 |
M16 |
M16 |
M20 |
M20 |
|
|
Motor power |
kw |
5.5 |
5.5 |
5.5 |
7.5 |
15 |
|
|
Machine weight |
kg |
2300 |
2600 |
3200 |
4500 |
7500 |
|
|
Notice |
These machine size and price are for standard machine , we can produce as your requirement size and press Ton |
||||||

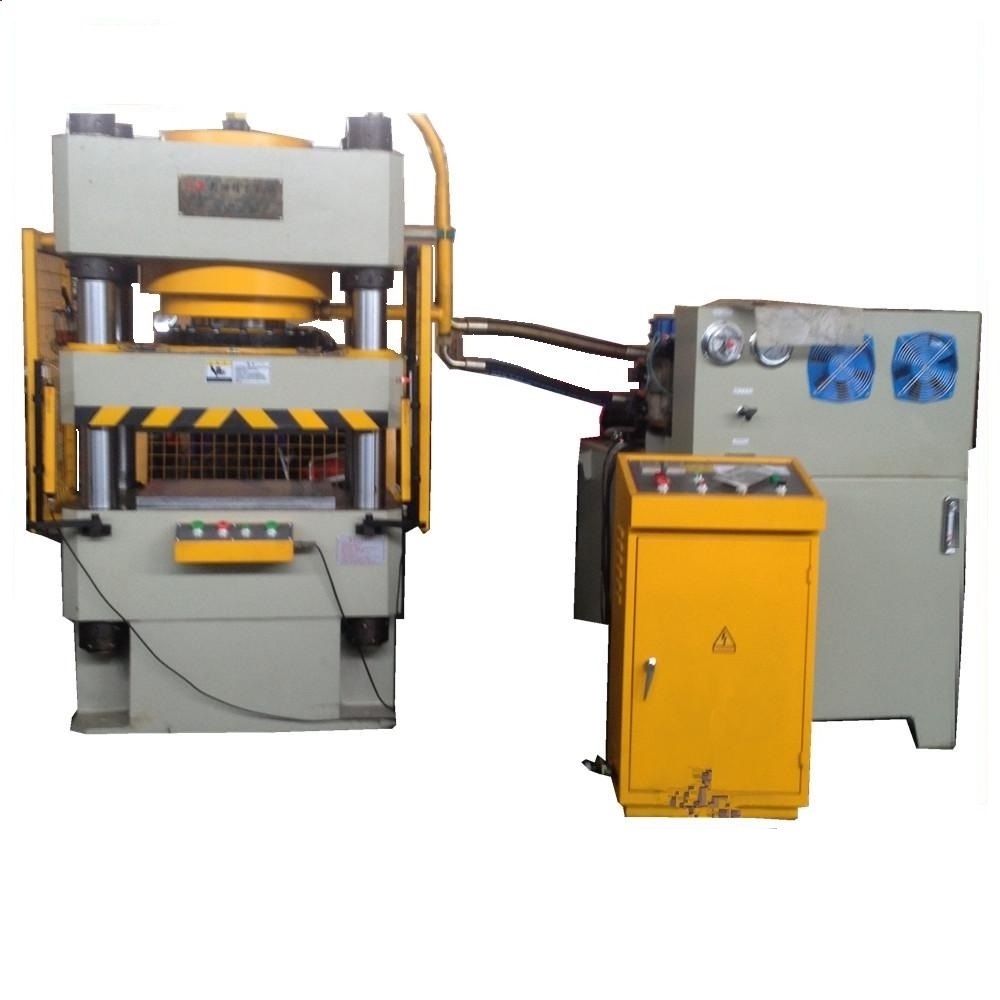

300 Ton hydraulic press Picture
The operation panel can be in English
