Quick Details
-
Model Number:
-
VTS-H200
-
Place of Origin:
-
China, Jiangsu China
-
Gross weight:
-
350 kg
-
Packing size:
-
1560*820*1850mm
-
Power supply:
-
220V/380V 50/60Hz
-
Capacity:
-
200L
-
Model:
-
VTS-H200
-
Chamber material:
-
304 stainless steel material
-
Working temp:
-
134°C
-
Power consumption:
-
9KW
-
Working pressure:
-
0.22MPa
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Free spare parts
-
Brand Name:
-
Vetese
-
Model Number:
-
VTS-H200
-
Place of Origin:
-
China, Jiangsu China
-
Gross weight:
-
350 kg
-
Packing size:
-
1560*820*1850mm
-
Power supply:
-
220V/380V 50/60Hz
-
Capacity:
-
200L
-
Model:
-
VTS-H200
-
Chamber material:
-
304 stainless steel material
-
Working temp:
-
134°C
-
Power consumption:
-
9KW
-
Working pressure:
-
0.22MPa

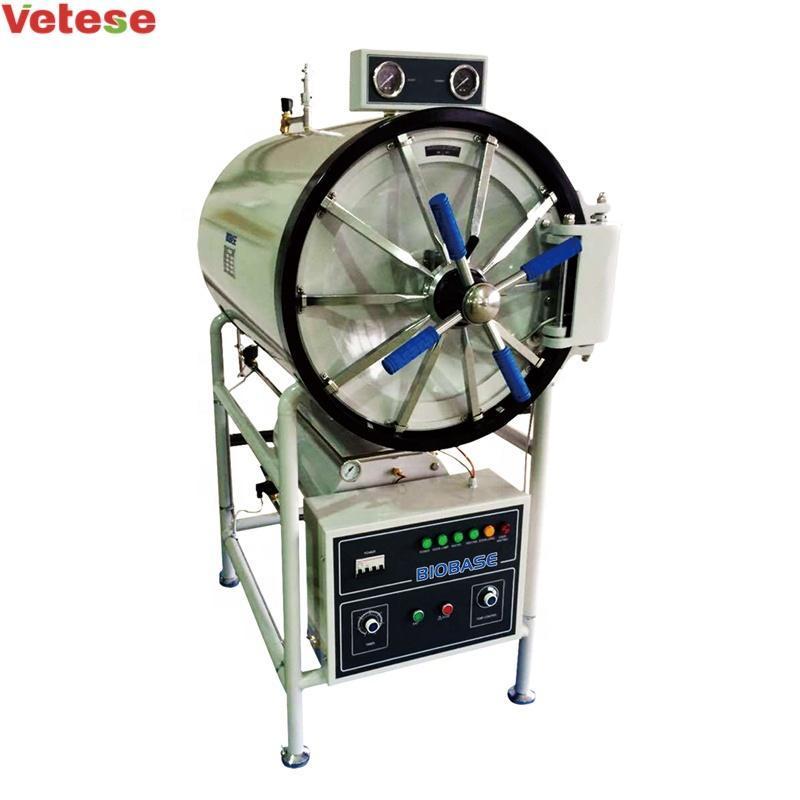

Picture Show of 200L Horizontal Cylindrical High Pressure Steam Sterilizer Autoclave
Parameters of 200L Horizontal Cylindrical High Pressure Steam Sterilizer Autoclave
|
Model |
VTS-H200 |
|
Capacity |
200L |
|
Chamber size |
φ515*1000mm |
|
Working pressure |
0.22MPa |
|
Working temp. |
134°C |
|
Temperature range |
40~134°C |
|
Sterilization time |
0~60 min |
|
Drying time |
0~60 min |
|
Temp. accuracy |
≤±2°C |
|
Power consumption |
9KW |
|
Power supply |
220V/380V, 50/60Hz |
|
External size(mm) |
1400*670*1650 |
|
Packing size(mm) |
1560*820*1850 |
|
Gross weight(kg) |
350 |
Features of 200L Horizontal Cylindrical High Pressure Steam Sterilizer Autoclave
1. Drying function
2. Interlock function.
3. Automatic sterilization process
4. 304 stainless steel material chamber.
5. Safety valve for over pressure protection.
6. Over-temperature, over-pressure protection device.
7. Water level sensor. The power will be cut-off automatically in case of low water level.
