Quick Details
-
Brand Name:
-
Tecnk
-
Model Number:
-
PPM-HLV-3
-
Usage:
-
Magnetic Sensor
-
Measuring medium:
-
Lubricating oil, hydraulic oil
-
Pressure range:
-
≤ 200 bar
-
Signal output:
-
Digital signal: RS485 MODBUS
-
Alarm points:
-
2 points 250VAC/3A or 30VDC/3A (optional)
-
Ingress protection:
-
IP66
-
Power consumption:
-
< 30mA at 24VDC (RS485)
-
Process connection:
-
NESSI, G1/2''
-
Housing Materials:
-
SS316 or 304, Hastelloy
-
Weight:
-
0.36kg
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Tecnk
-
Model Number:
-
PPM-HLV-3
-
Usage:
-
Magnetic Sensor
-
Measuring medium:
-
Lubricating oil, hydraulic oil
-
Pressure range:
-
≤ 200 bar
-
Signal output:
-
Digital signal: RS485 MODBUS
-
Alarm points:
-
2 points 250VAC/3A or 30VDC/3A (optional)
-
Ingress protection:
-
IP66
-
Power consumption:
-
< 30mA at 24VDC (RS485)
-
Process connection:
-
NESSI, G1/2''
-
Housing Materials:
-
SS316 or 304, Hastelloy
-
Weight:
-
0.36kg
-
Certification:
-
CE
Oil Viscosity and Density Sensor Analyzer Moisture Water Content Oil Analysis Testing Equipment
Product Description

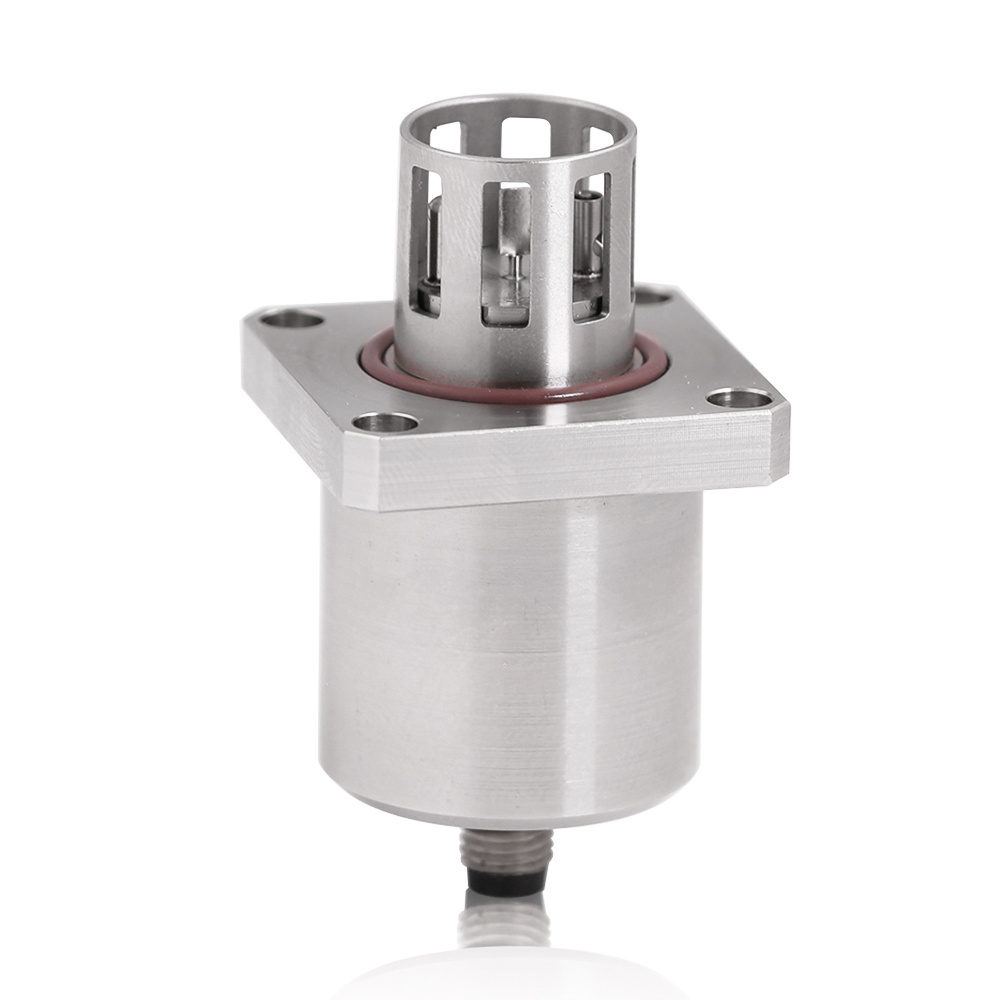

The PPM-HLV-3 Sensor adopts MEMS piezoelectric resonance component, with the integration of high accuracy signal sampling and processing unit inside, it can measure density, viscosity and temperature automatically at the same time. Density at 20ºC, kinematic viscosity, viscosity index, viscosity at 40ºC, viscosity at 100ºC, dielectric constant could be measured through it's calculate program.
Measuring medium: Lubricating oil, hydraulic oil, gasoline, diesel oil, aviation fuel, kerosene, ethanol, printing ink, paint.
Specifications
|
Measuring parameters |
Density(kg/m³), kinetic viscosity(mPa·s), temperature(ºC),dielectric constant |
|
Measuring parameters(optional) |
Kinematic viscosity, viscosity at 40ºC, viscosity at 100ºC, viscosity index, density at 20ºC |
|
Measuring range |
Density:0.6 ~ 1.3g/cm³ or 600~1300 kg/m³
|
|
Accuracy(at 23 ºC) |
Density: 0.001g/cm³ or 1 kg/m³
|
|
Resolution |
Density: 0.0001g/cm³ or 0.1 kg/m³
|
|
Response time |
<30s(first time), data updating rate 1 time/second |
|
Signal output |
Digital signal: RS485 MODBUS RTU or RS232
|
|
Alarm points |
2 points 250VAC/3A or 30VDC/3A (optional) |
|
Power supply |
9~32VDC |
|
Power consumption |
< 30mA at 24VDC (RS485) |
|
Pressure range |
≤ 200 bar |
|
Medium temperature |
-40~120ºC |
|
Ambient temperature |
-40~85ºC |
|
Storage temperature |
-40~80ºC |
|
Housing material |
SS316 or 304, Hastelloy |
|
Dimension |
Φ34*90mm |
|
Process connection |
NESSI, G1/2'' |
|
Weight |
0.36kg |
|
Ingress protection |
IP66 |
|
Sealing material |
FKM fluorine rubber |
|
Cable |
2m, M8, 6 core |
|
Flow rate |
<1m/s |
|
Certification |
CE, ASTM1657 |
|
Ex-proof class |
EX ia IIB T6 Ga (optional) |
Features
1. Imported probe for real time monitoring online with high accuracy.
2. All stainless steel material adopted, good corrosion resistance and vibration resistance.
3. Quick response, data updating rate less than 1s.
4. Long working life more than 10 years.
5. Small size , easy to install, help to the integration.
Wir i ng diagram
1,
MOQ
: One sample order is acceptable.
2,
Price term
: EXW, FOB Changsha.
3,
Payment:
Western union, Paypal for samples order; T/T 30% deposit, 70% T/T before shipment for order.
4,
Packing
: Standard export packing, including instructions and certificate.
5,
Leading time
: 5-10days for samples, 10-30 days for mass production.
6,
OEM/ODM is available.
7,
Shipment
: Express (FedEx, DHL, UPS & TNT) or forwarder.
8,
Warranty:
One year free repair for quality warranty, and lifetime free online after-service.
