Quick Details
-
Brand Name:
-
TOPLIT
-
Weight:
-
9500 KG, 9500kgs
-
Dimension(L*W*H):
-
4.5x2.1x2.5m
-
Model:
-
TPY-150T
-
Use:
-
pack waste tires
-
Motor power:
-
18.5W
-
Production capacity:
-
4-5tons/h
-
Package size:
-
1800X1000X1200 mm
-
Delivery time:
-
within 20 days
-
wechat/Whats app:
-
0086-13963951313
-
E-mail:
-
Judy at qdtoplit dot com
Quick Details
-
Voltage:
-
220V,380V,440V,etc
-
Power:
-
18.5KW
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TOPLIT
-
Weight:
-
9500 KG, 9500kgs
-
Dimension(L*W*H):
-
4.5x2.1x2.5m
-
Model:
-
TPY-150T
-
Use:
-
pack waste tires
-
Motor power:
-
18.5W
-
Production capacity:
-
4-5tons/h
-
Package size:
-
1800X1000X1200 mm
-
Delivery time:
-
within 20 days
-
wechat/Whats app:
-
0086-13963951313
-
E-mail:
-
Judy at qdtoplit dot com

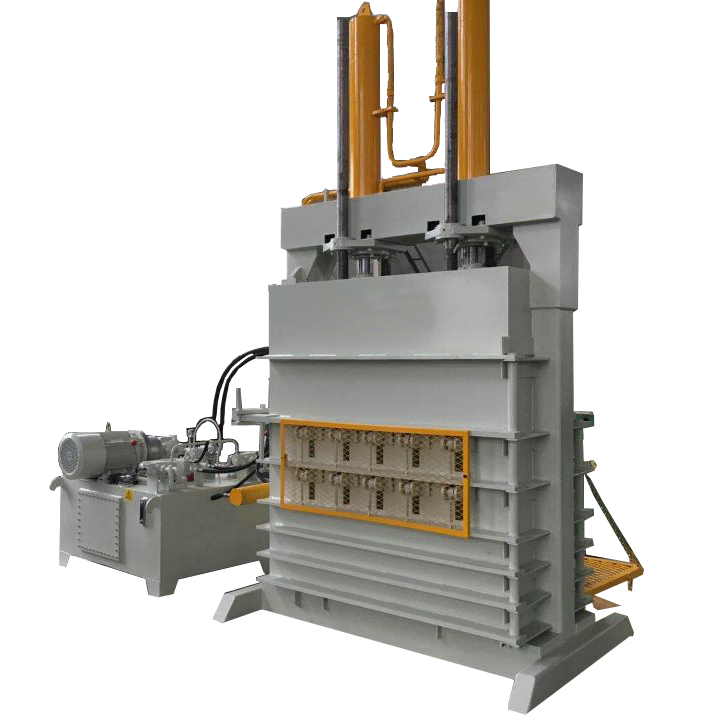

Waste Tire Recycling Machine / Used Tire Baler
Wechat/Whats App: 0086-13963951313
TPY-150T hydraulic tires packer adopting steel welding structure frame, high intensity, light weight, the offset type cylinder structure, convenient maintenance, no excavation pit of underground water level, especially in high; Hydraulic pressure, stable, noise is small, the operation is simple, safe, comfortable, Cylinder using reliable leak proof design, no leakage. With the door open into packets adopts hydraulic control, convenient and reliable.
Technical spec.:
| Type | TPY-150T |
| The operate method | Manual |
| Nominal Thrust | 1500KN |
| Size | 4960*2535*2850mm |
| Compression chamber size(L*W*H) | 1800X1000X2100mm |
| Packet block size(L×W×H) | 1800X1000X(1000-1300)mm |
| The Bale weight | 1300-1500kg |
| Production capacity | 4-5ton/h |
| The system pressure | 20Mpa |
| A single cycle time(empty working) | 55S |
| Main power | 18.5KW |
| Weight of machine | 9500kgs |
| Number of baling wires | 7 |
NOTE: 1.Bale size can be designed as per customers' request.
2. Easy to install and operate
Structure:
1. F rame
It consists of bottom plate and top plate.
2. Material box
It consists of bottom plate, both side plates, two active doors.
One set of two root over to push bag chain is freely.
3. Cylinder
The cylinder is single action piston oil cylinder. The lower ender is fixed on the flat of frame upper end through 4pcs of M20*80 screws. The lower end of piston rod is jointed with the lifting board through the round flanges.
4. Oil pump
The machine is equipped with 80YCY14-1B plunger pumps
1. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
2.How to keep the machine safe & sound during shipping time?
Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.,
3. May i know which payment will be accepted by your company ?
So far 100%T/T before shipment, and 30% deposit paid by T/T, balance paid by L/C are available.
4. How can you solve the problems occurred of your overseas customer in time?
The warranty of our machine is normally one year, during this period, we will arrange the international express immediately, to make sure the replace parts to be delivered as soon as possible.
5. After we placing an order, will you arrange the installation of the machine at present?
All the machines will be tested well before delivered, so almost of them can be used directly, also our machine are easy to be installed, if you customer needs our assistance, we will be pleased to arrange the installation, but all the cost will be be charged by you.
